Page 20: Nic leds
Server Board Features
Back Panel Connectors
TP00762
A
F
C
D
E
G
H
B
I
A PS/2
Mouse
F Video
B PS/2 Keyboard
G USB port 1
C Serial Port B
H
USB port 2
D NIC port 1 (1 Gb)
I
SCSI channel B
E
NIC port 2 (1 Gb)

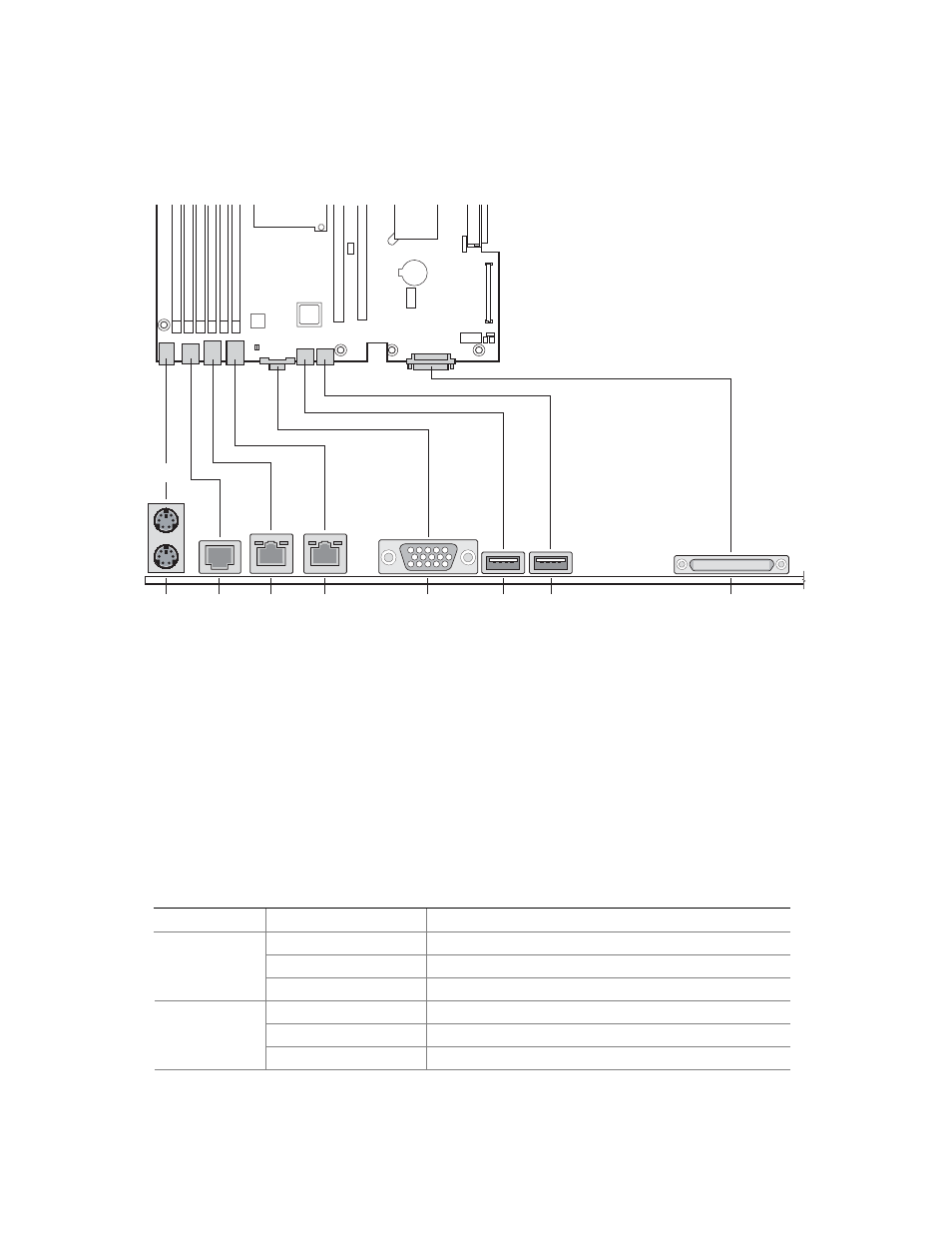

Figure 4. Back Panel Connectors
The NIC LEDs at the right and left of each NIC provide the following information.
Table 3.
NIC LEDs
LED Color
LED State
Description
Off
No network connection
Solid Amber
Network connection in place
Left LED
Blinking Amber
Transmit/receive activity
Off
10 Mbps connection (if left LED is on or blinking)
Solid Amber
100 Mbps connection
Right LED
Solid Green
1000 Mbps connection
20
