Server Board Features
Connector and Header Locations
TP00757
A C D B E F G
H
I
J K
R
M
L N
S T
EE
CC
X
U
V
W
Z
Y
AA
DD
BB
Q
P
O
A Serial Port A L Processor 2 fan header W SATA port 2
B SCSI Channel B M +12V processor power X Power supply signal cable
C 8-pin OEM connector N Fan board connector Y USB header (DH-10)
D Battery O Floppy connector Z USB header (1 x 10)
E Full-height riser slot P System fan 3-pin header AA IPMB connector
F Low-profile riser slot Q Secondary IDE channel BB IDE power connector
G Back panel I/O ports R Control panel 100-pin
connector
CC SCSI channel A
H DIMM sockets S 24-pin SSI power connector DD ICMB connector
I Processor 1 fan header T 50-pin control panel connector EE 120-pin connector for
optional Intel® Management
Module
J Processor socket 1 U 34-pin SSI control panel
connector
K Processor socket 2 V SATA port 1

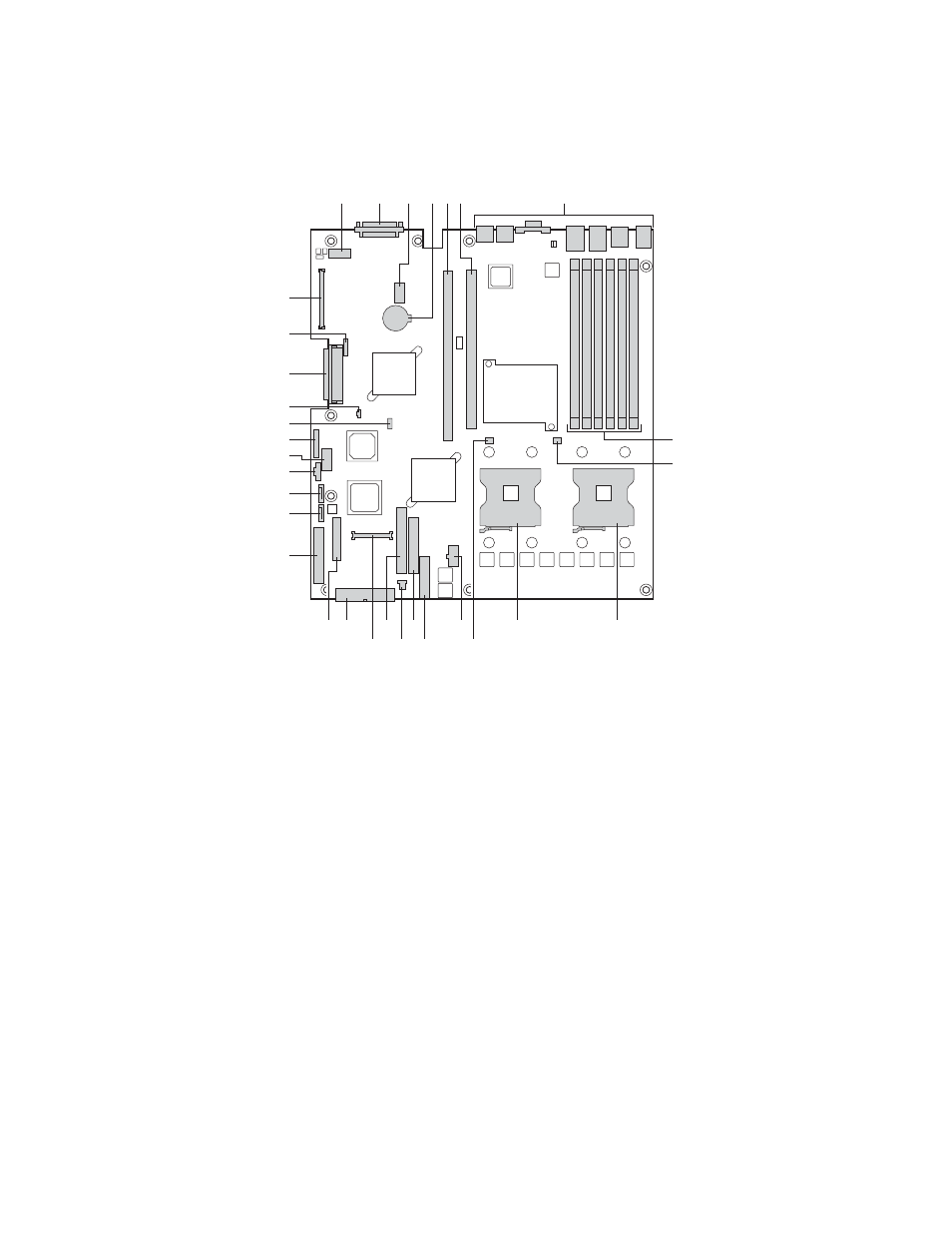

Figure 2. Server Board Connector and Component Locations
18
