4
Install the RAID DIMM or Mini-DIMM
1. Open the clips on each side of the DIMM socket.
2. Holding the DIMM by the edges, remove it from its anti-static package.
3. Align the notch on the DIMM with the key in the DIMM socket.
4. Push the DIMM firmly into the socket. The clips will latch. Make sure the clips are firmly
latched.

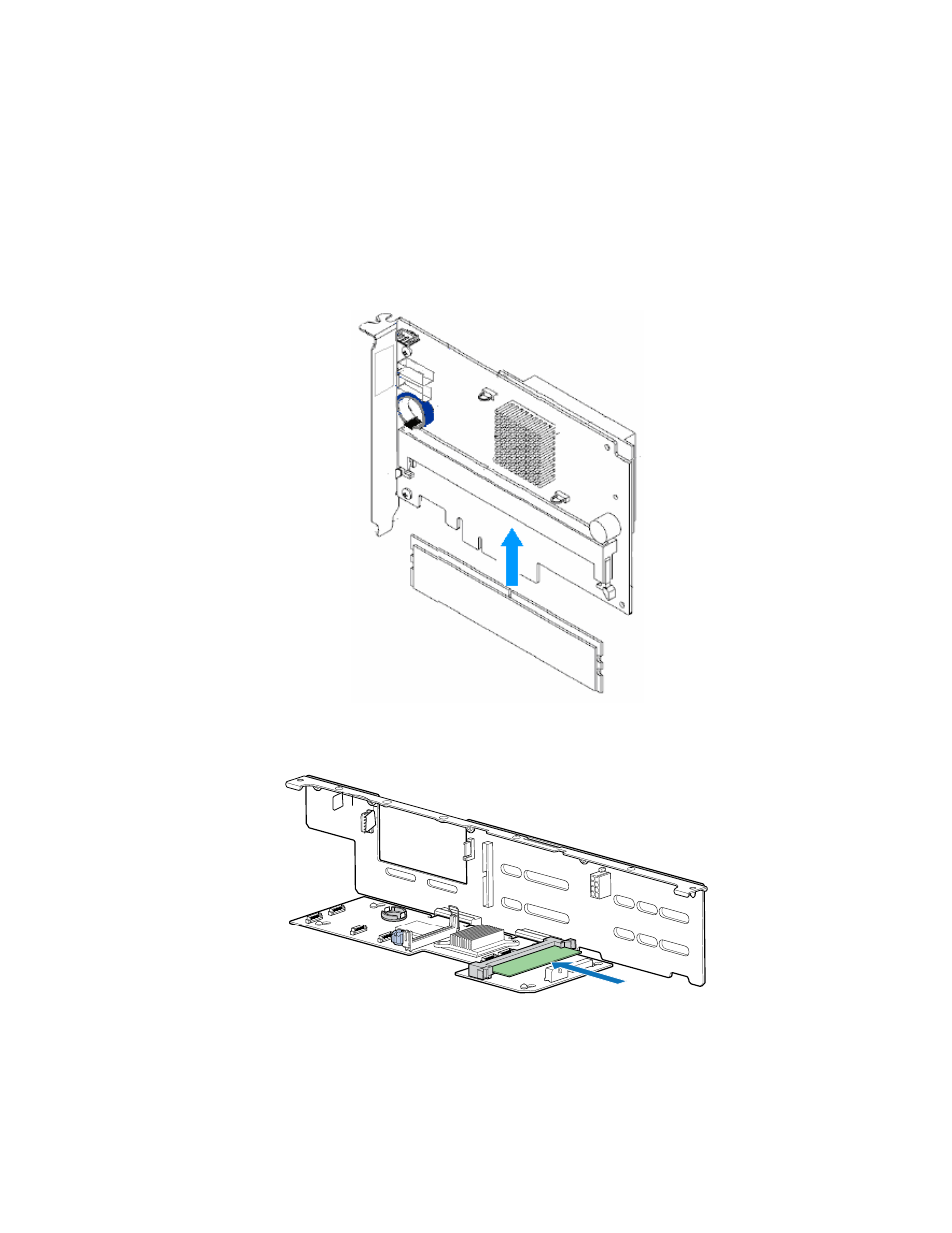

Figure 3. Installing DIMM on Intel ® Server System S7000FC4UR SAS Riser
AF000481
Figure 4. Installing Mini-DIMM on Midplane Board
