Intel ® RAID Activation Key AXXRAKSAS2 Install Guide
3
Install the Intel® RAID Activation Key
1. Remove the RAID Activation Key from its packaging.
2. See your server board or system documentation to locate the ROMB connection in your server.
It may be on a midplane board or on the SAS riser board in a specially keyed PCI Express*
slot.
3. With the Intel name on the RAID Activation Key facing up, insert the RAID Activation Key
into the socket.
4. Make sure the Key is fully seated. The metal clips on the socket sit on the top edge of the Key.

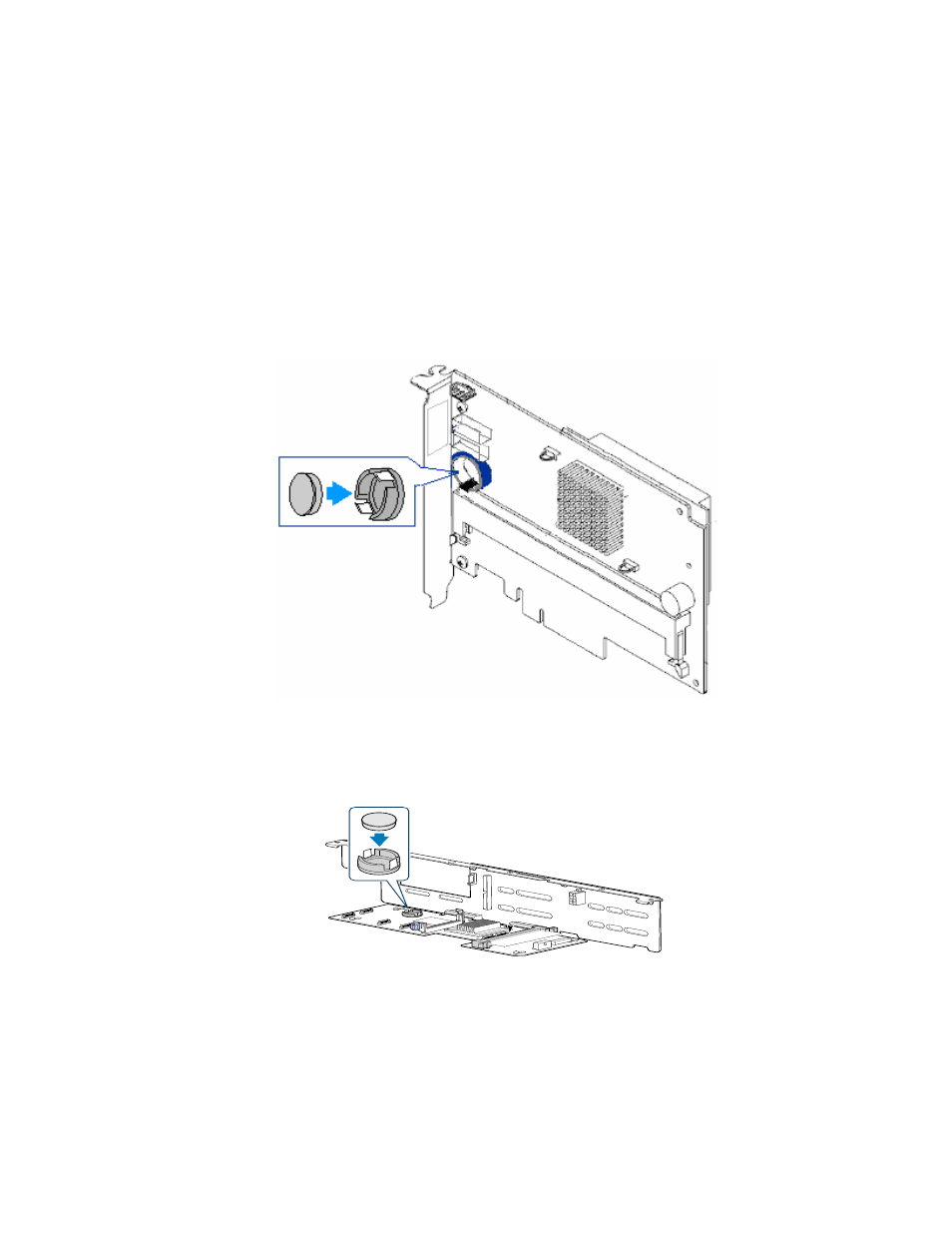

Figure 1. Installing the RAID Activation Key on Intel® Server System S7000FC4UR SAS Riser
AF000479
Figure 2. Installing RAID Activation Key on Midplane Board
