You may want to set Onboard Serial Port 2 to Disabled if
you aren’t going to use the onboard COM2 port.
If you install an IR port module, you have to set the UART
Mode Select line to the appropriate IR setting. Check the
module instructions for this information. The following
four lines will display the defaults for the IR mode you
select and should work.
You can alter the parallel port settings as needed. You
can disable the Game and MIDI settings if you aren’t
going to use the Game port header.
The last several items when at the bottom of the list are
SCR Port Address and MS/SD Port Address. These en-
able and configure a Smartcard reader and Memory Stick™
or Secure Digital™ memory card reader respectively. The
default port addresses should work.

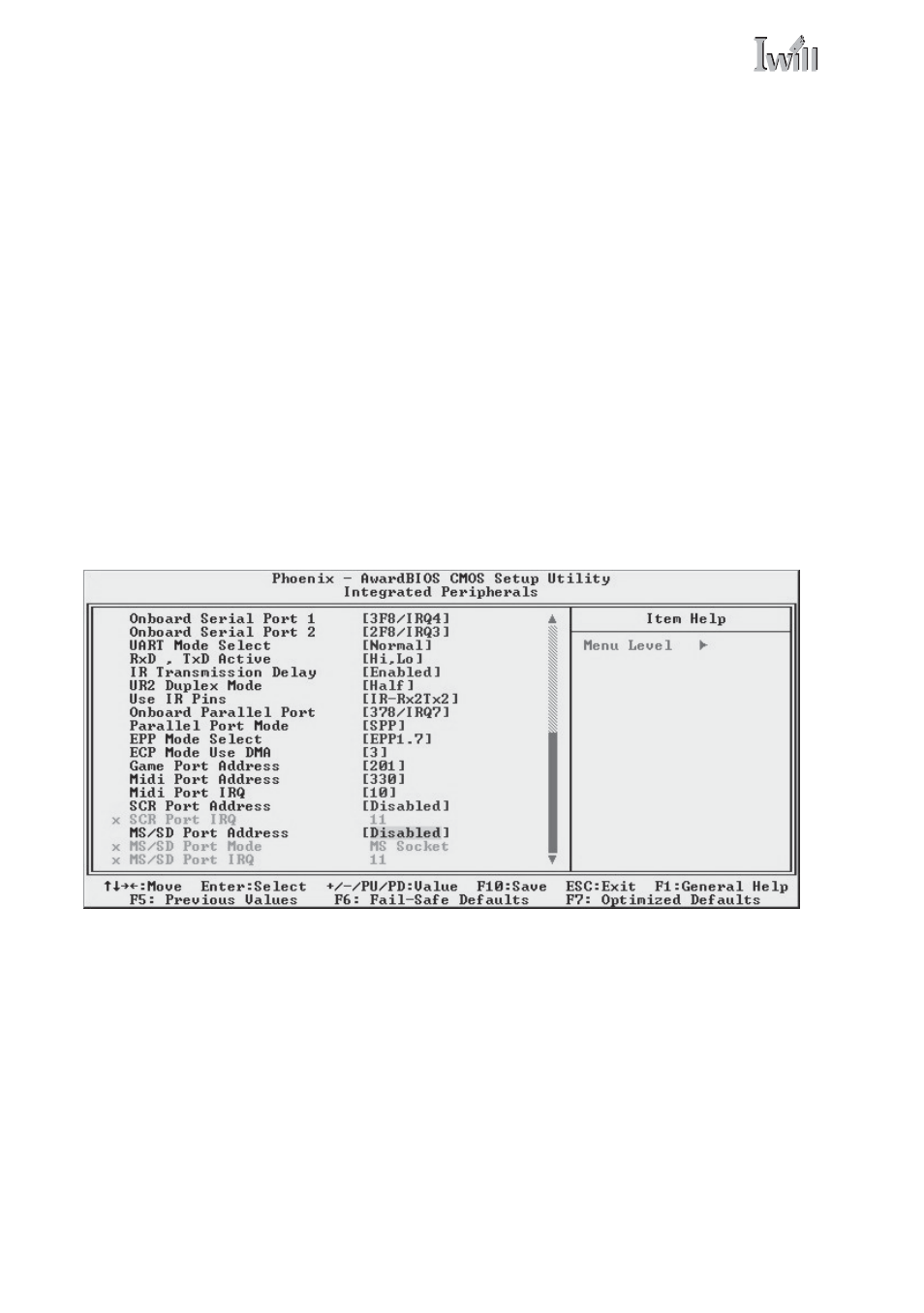

CMOS Setup Utility – Integrated Peripherals (lower section)
