4.2.3 Advanced Chipset Features Setup

The Advanced Chipset Features Setup option is used to change the values
of the chipset registers. These registers control most of the system options
in the computer. Choose the "Advanced Chipset Features" from the main
menu and the following screen will appear.

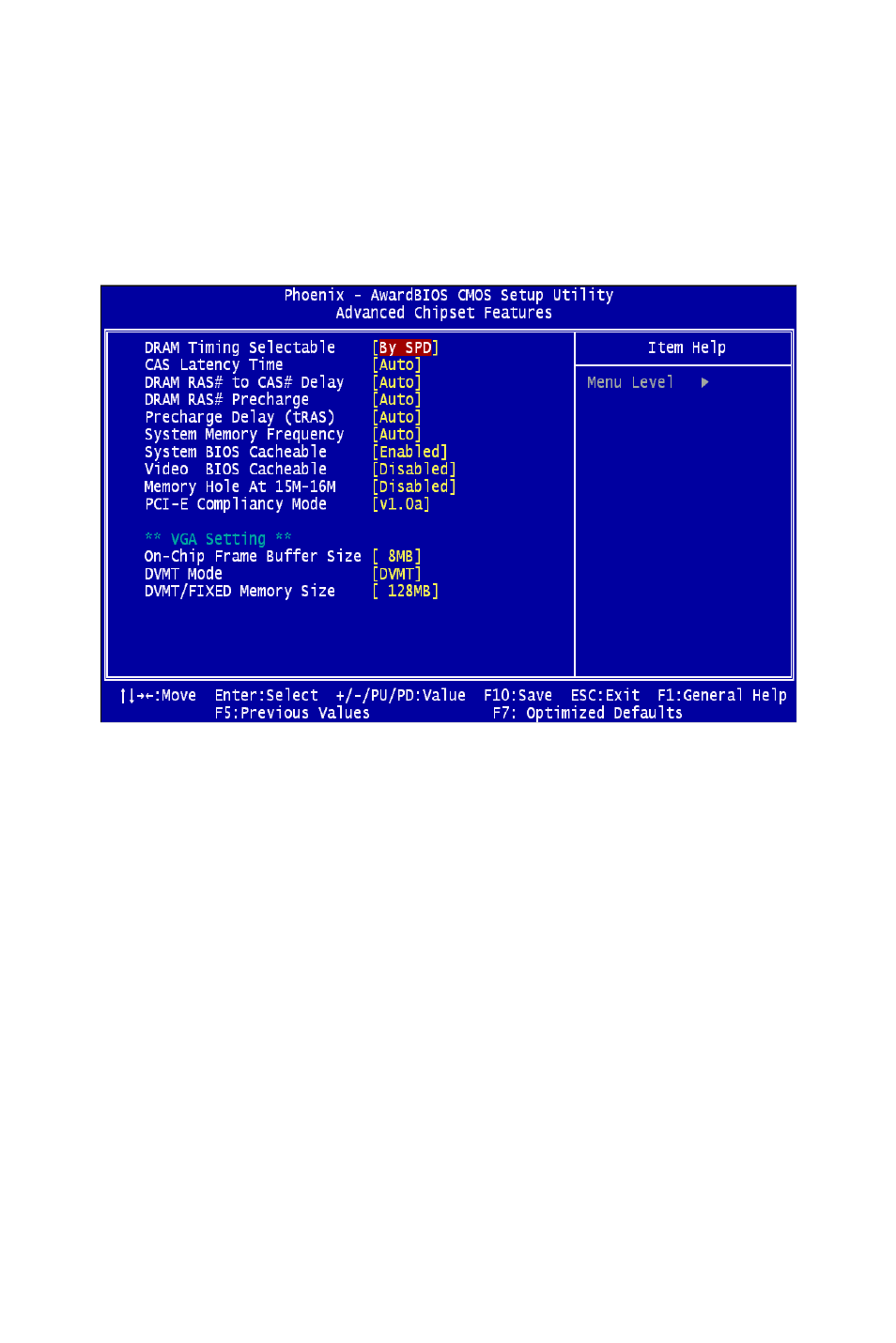

Figure 4.4: Advanced Chipset Features setup screen

DRAM Timing Configuration
This field lets you select system memory timing data. Manual and BY
SPD are two options. Default is "BY SPD"

CAS Latency Time
When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing. The settings are: 3,4,5 and
Auto.
