MIC-3321 User Manual 20
Halt On
This category determines whether system start-up will halt when an error
is detected during power up.
The options are: No Errors/All Errors/All, But Keyboard/All, But Dis-
kette/ All, But Disk/Key
Memory
This category displays base, extended, and total memory detected during
the POST (Power On Self Test).
4.2.2 Advanced BIOS Features Setup
The "Advanced BIOS FEATURES" screen will appear after the BIOS
FEATURES SETUP item from the CMOS SETUP UTILITY Menu was
chosen. This screen allows the user to configure the board according to
particular requirements. Below are some major items that are provided in
the BIOS FEATURES SETUP screen:

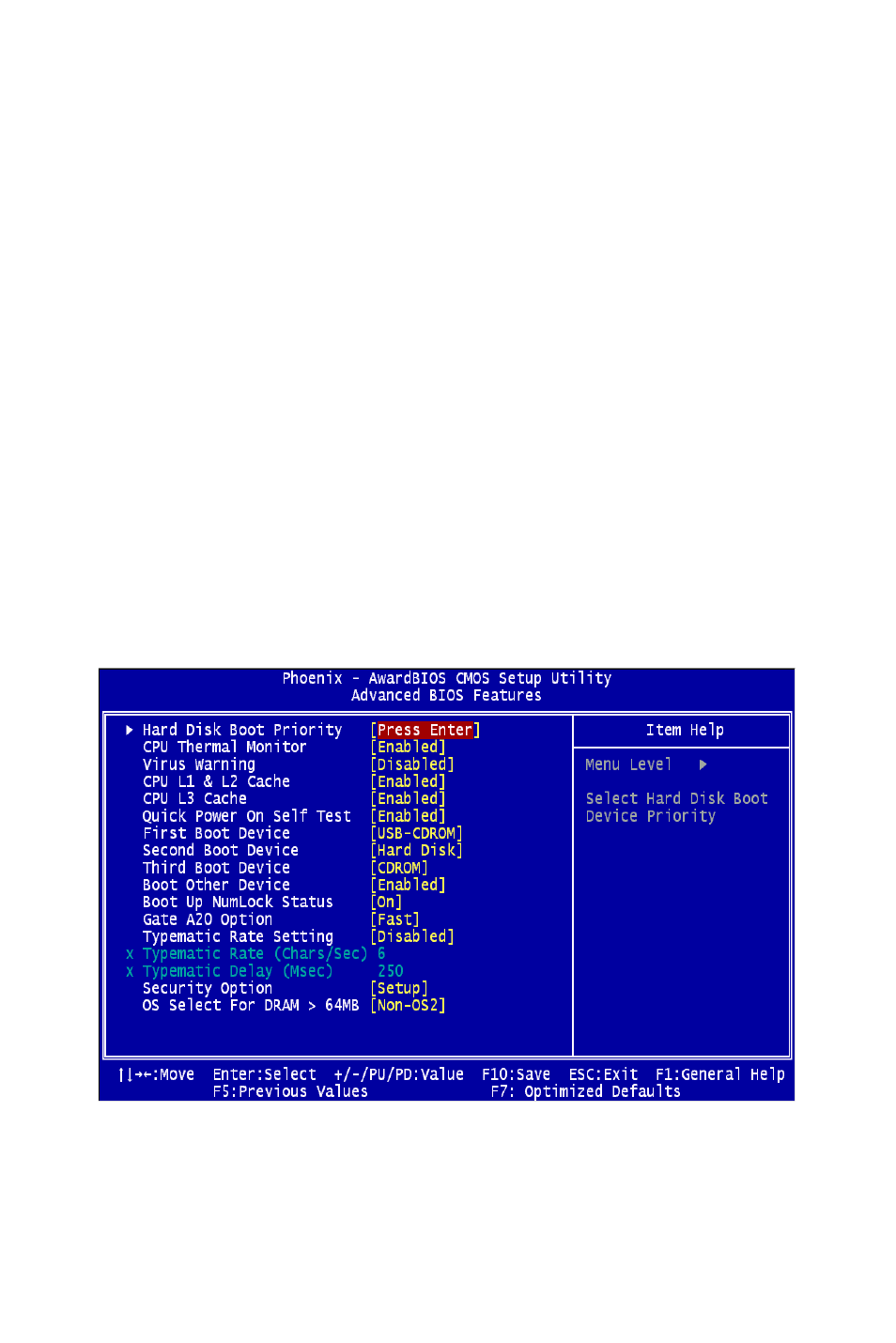

Figure 4.3: Advanced BIOS features setup screen
