STEP 2 (See Diagram 2)
A.) Connect the Left & Right Upright Beams (#1 & #2) with one Dumbbell Rack (#5) on the top
level. Align the holes then secure each end of the Rack with one M10 x 2 ¾” Allen Bolt (#12),
two
∅
¾” Washers (#9), and one M10 Aircraft Nut (#14). Repeat the same step to install the
other Dumbbell Rack. Do not tighten the nuts and bolts yet.
B.) Repeat Procedure A above to install two Dumbbell Racks to the second level.
C.) Repeat Procedure A above to install two Dumbbell Racks to the third level. Tighten all Nuts
and Bolts previously installed.

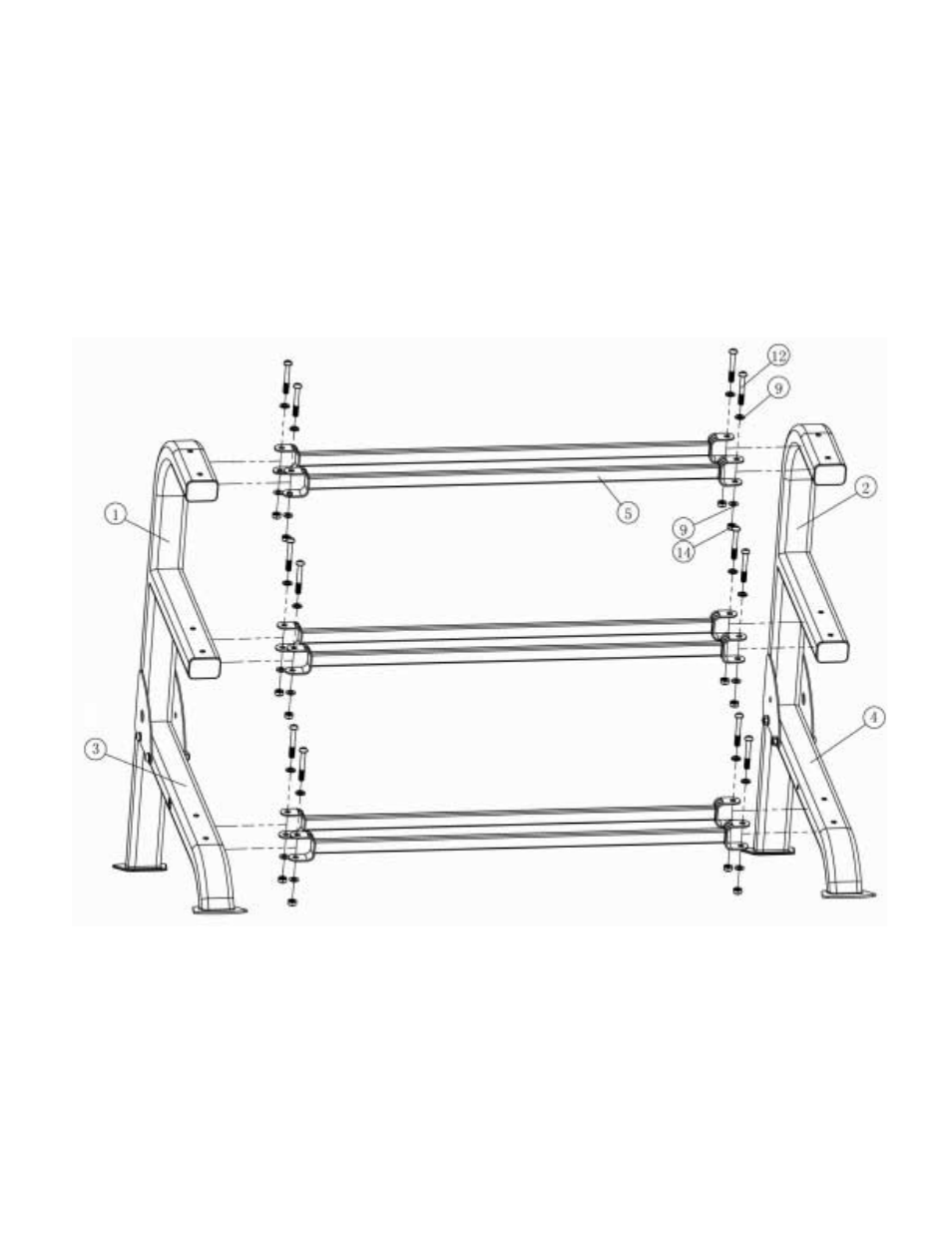

DIAGRAM 2
