Show Help

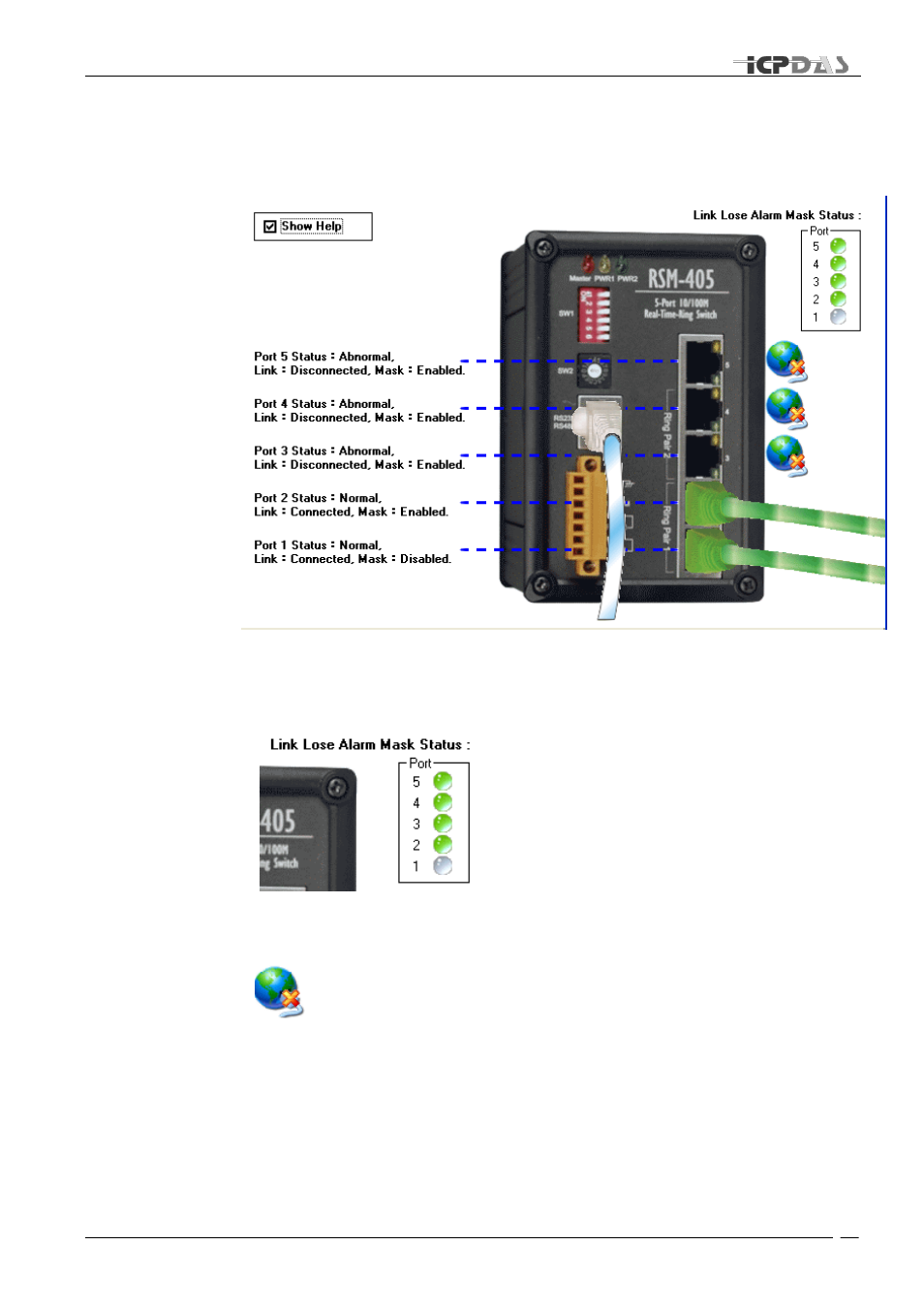

Click on square box in front of Show Help will display current Port status.
Link Lose Alarm Mask Status
Link Lose Alarm Mask Status indicate current link lose relay output mask setting. When
the Led is green, the mask is enabled, and when the Led is grey, the mask is disabled.
When there is a link loss (disconnection) occurs, and if the mask is enabled, a relay output
will be activated and a warning sign will be shown.
