STEP 4 (See Diagram 4)

A.) Attach the hole-side of the Backrest Supports (#12) to the pivot on the Main Seat Support

(#6). Place the other end of Backrest Supports rest against the Backrest Adjustment Bar
(#5). Place the Backrest Board (#15) onto the Backrest Supports. Secure it with four M6 x 1
3/8” Hex Bolts (#35) and

∅

½” Washers (#36).

B.) Place the Seat (#16) onto the Main Seat Support (#6). Secure it with four M6 x 1 3/8” Hex

Bolts (#35) and Ø ½” Washers (#36).

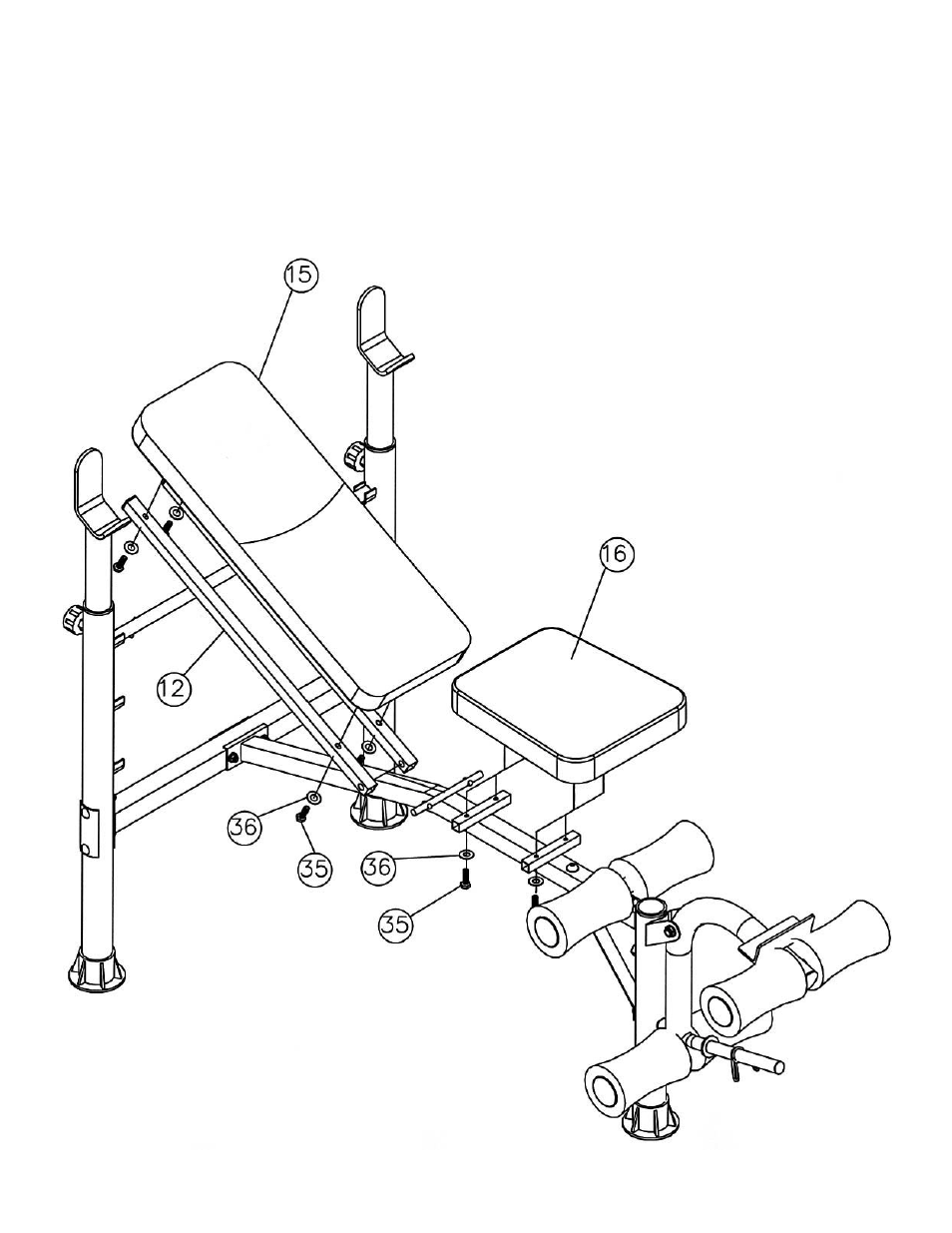

DIAGRAM 4
