STEP 2 (See Diagram 2)
A.) Attach a Ø 2 3/8” End Cap (#20) to the bottom of the Leg Developer Holder (#8).
B.) Attach the Leg Developer Holder to the front of the Main Seat Support (#6). Secure it with
three M8 x 5/8” Allen Bolts (#38) and Ø 5/8” Washers (#33).
C.) Attach the top of Diagonal Support (#7) to the Main Seat Support (#6). Secure it with one M8
x 2 1/8” Allen Bolt (#32), two Ø 5/8” Washers (#33) and one M8 Aircraft Nut (#34). Attach the
bottom of the Diagonal Support to the Leg Developer Holder. Secure it with one M8 x 5/8”
Allen Bolt (#38) and Ø 5/8” Washer (#33).
D.) Attach the Rear of the Main Seat Support (#6) to the Cross Brace (#3). Secure it with one
Flat Bracket (#14), two M10 x 2 ½” Carriage Bolts (#31), two
∅
¾” Washers (#29), and two
M10 Aircraft Nuts (#30).

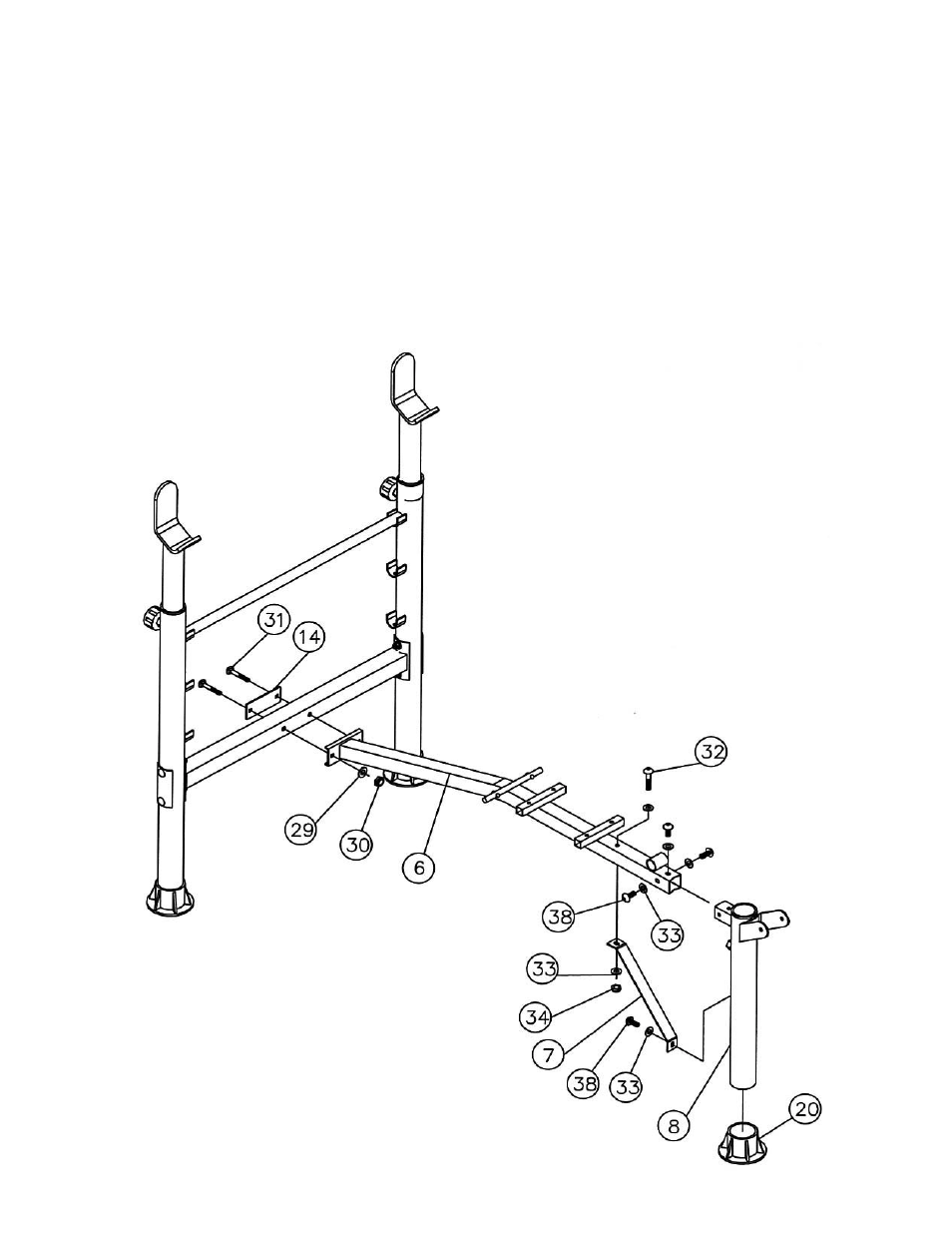

DIAGRAM 2
