ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injury.

STEP 1 (See Diagram 1)

A.) Attach two Ø 2 3/8” End Caps (#20) to the bottom of two Upright Beams (#1 & #2).
B.) Connect the Left & Right Upright Beams (#1) & (#2) by the Cross Brace (#3) in the mid-span.

Align the holes then secure each end of Cross Brace with one Bent Bracket (#13), two M10 x
3 1/8” Carriage Bolts (#28), two

∅

¾” Washers (#29), and two M10 Aircraft Nuts (#30).

C.) Insert two Bar Holders (#4) into the top opening on the Upright Beams. Secure them with two

M16 Lock Knobs (#18) through selected hole to obtain desired height of the Holders.

D.) Place the Backrest Adjustment Bar (#5) in between the two Upright Beams.

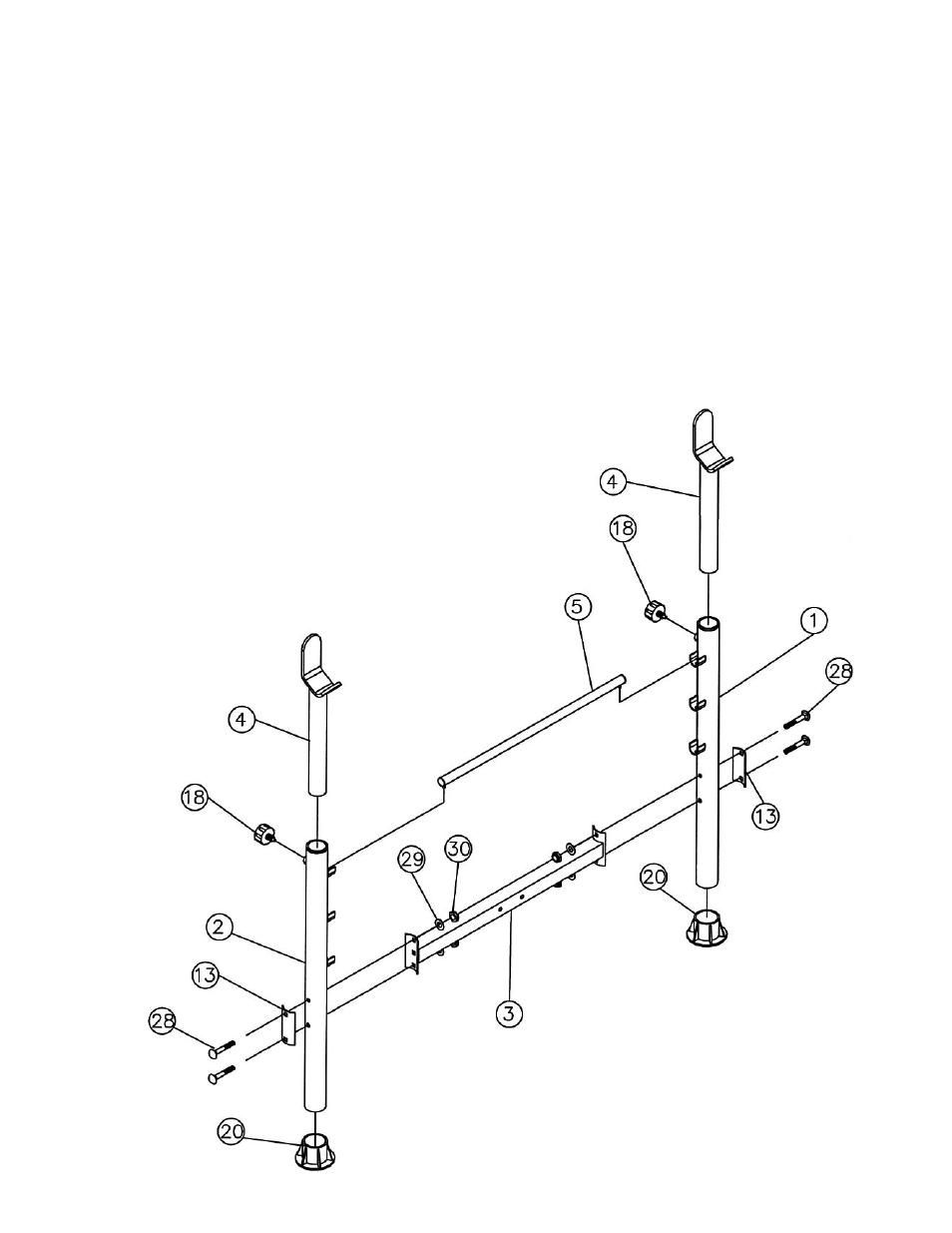

DIAGRAM 1
