STEP 3 (See Diagram 3)

A.) Attach the Backrest Pad (#11) to Upper Vertical Frame (#1). Secure it with two M10 x 6

¾” Allen Bolts (#22) and two Ø ¾” Washers (#24).

B.) Attach the Arm Pad to Left and Right Dip Support (#6 & #7). Secure each Arm Pad with

two M8 x 3 ½” Allen Bolts (#23) and two Ø 5/8” Washers (#25).

C.) Thread the Cable (#13) into Upper Frame (#3) and Rear Stabilizer (#8) to stabilize the

equipment.

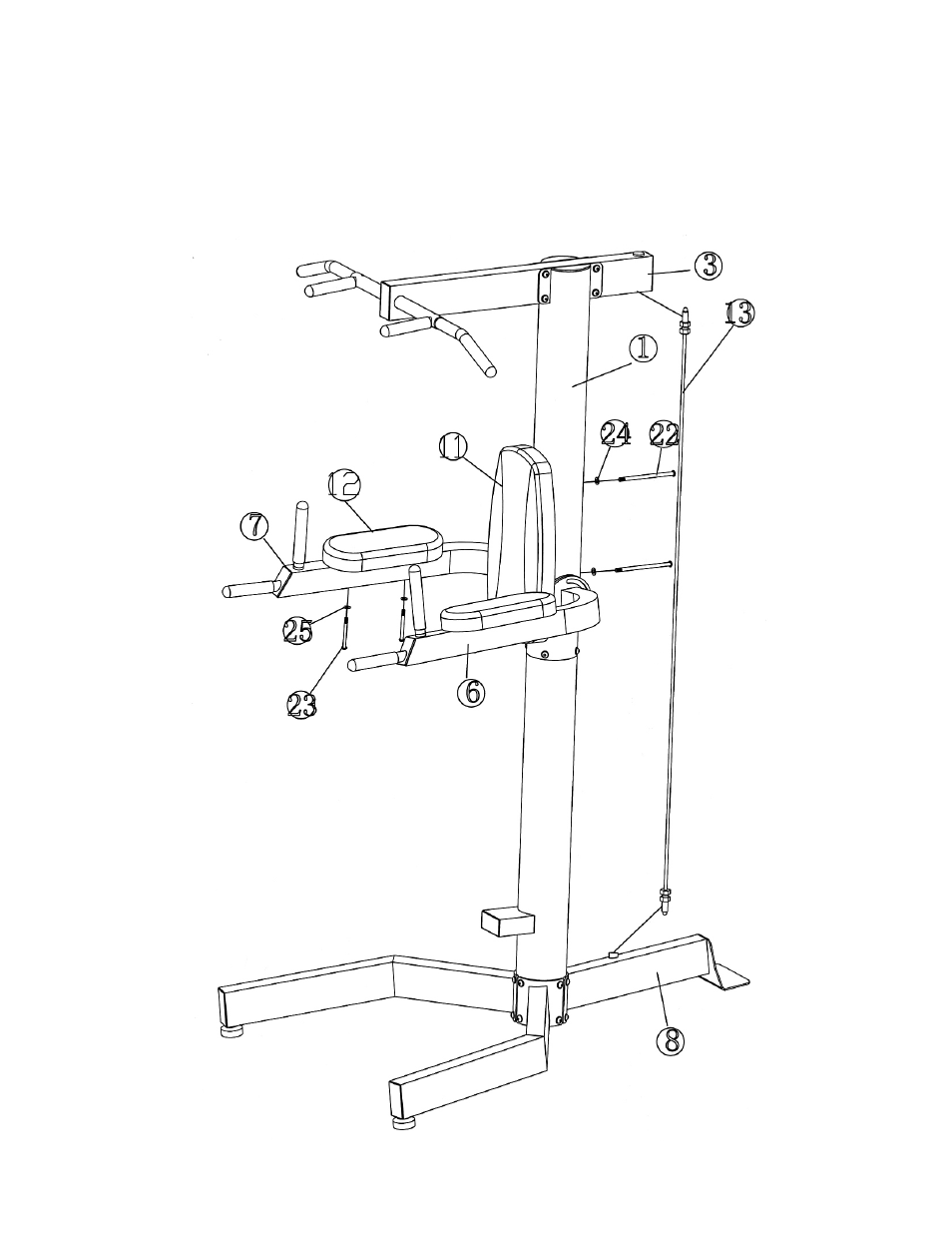

DIAGRAM 3
