ASSEMBLY INSTRUCTION

Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended that two or more people assemble this machine to avoid
possible injury.

STEP 1 (See Diagram 1)
A.) Do not tighten all Bolts until instructed to do so.
B.) Attach the Lower Vertical Frame (#2) to the Rear Stabilizer (#8). Secure it with four M10 x ¾”

Allen Bolts (#20), four Ø ¾” Lock Washers (#28), and four Ø ¾” Washers (#24).

C.) Attach the Left Stabilizer (#4) to the Lower Vertical Frame. Secure it with four M10 x ¾” Allen

Bolts (#20), four Ø ¾” Lock Washers (#28), and four Ø ¾” Washers (#24). Repeat the same
procedure to install the Right Stabilizer (#5) to the Lower Vertical Frame.

D.) Securely tighten all Bolts.
E.) Use the Level Knob (#17) under the Left and Right Stabilizer to stabilize the equipment.

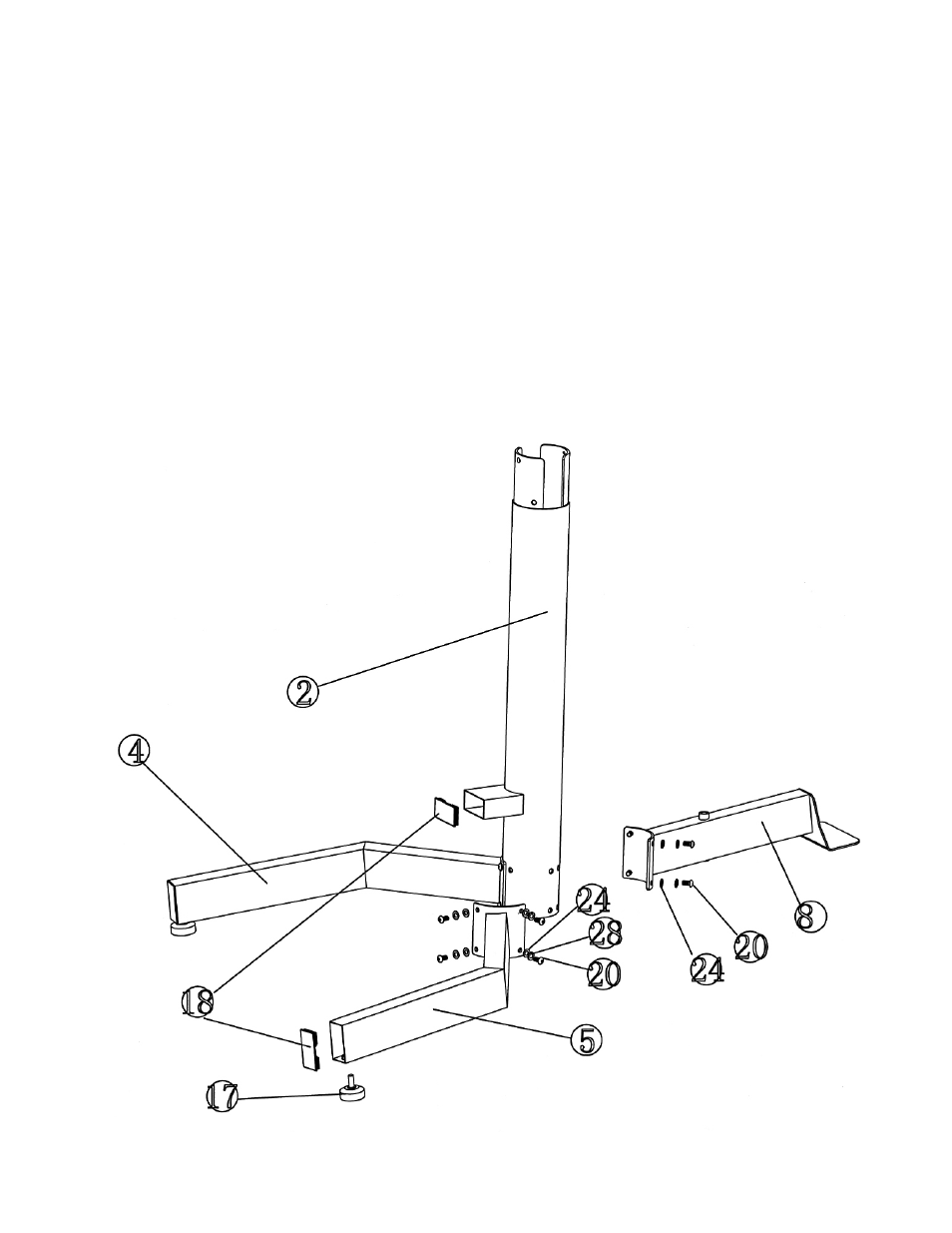

DIAGRAM 1

5
