Chapter 2. System board features
Connector panel
Connectors for features that are integrated into the system board can be identified by a symbol directly
below the connector. Connectors provided by an adapter might not have an identifying symbol. For
pinout details on connectors, see Appendix A, “Connector pin assignments” on page 25.

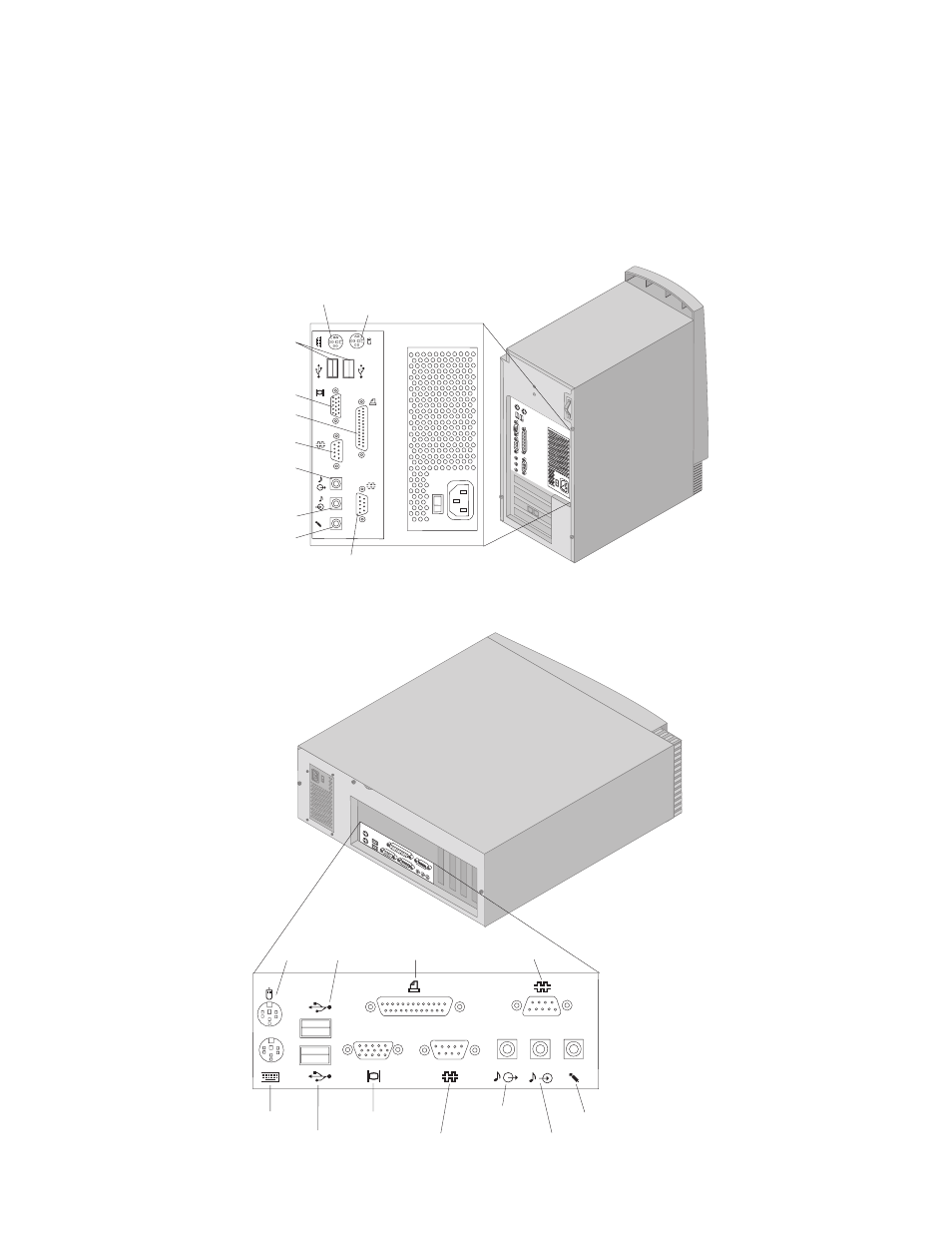

The connector panel for the tower model:
1 2
USB
Serial 2
Mouse
Keyboard
Serial 1
Printer
Microphone
Line In
Line Out
Headphone/
Monitor
The connector panel for the desktop model:
Monitor
USB 1
Parallel
Microphone
Headphone/
Line Out
Line In
Keyboard
Mouse
Serial 1
Serial 2 USB 2
1
2
