INSTALLATIONS
MB884 User’s Manual 17

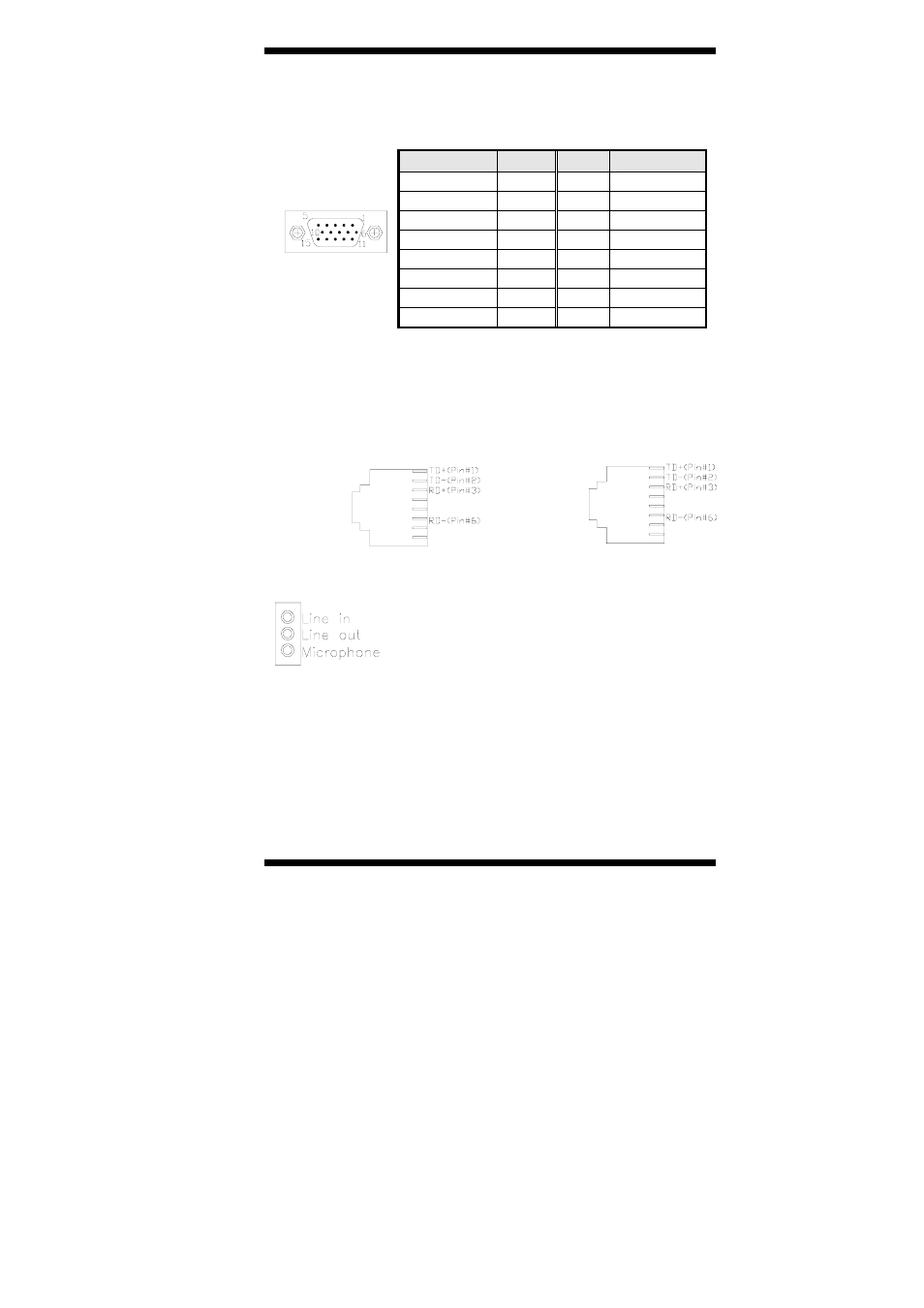

CN5: VGA CRT Connector
CN5 is a DB-15 VGA connector located beside the COM1 port. The
following table shows the pin-out assignments of this connector.
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 14 VSYNC
NC 15
CN6: DUAL LAN RJ45 Connectors
CN6 consists of two RJ-45 connectors that are used in conjunction with
the Marvell 88E8053 PCI Express Gigabit LAN single controllers.
LAN2 LAN1
DOWN
UP
CN7: Audio Connector
CN7 is a 3-jack audio connector beside the
USB/RJ45 combo connector.
CN8, CN9, CN10, CN11: SATA Connectors
The SATA connectors support SATA 150 and use one serial ATA HDD
for each. CN8 is port 2, CN9 is port 4, CN10 is port1 and CN11 is port3
