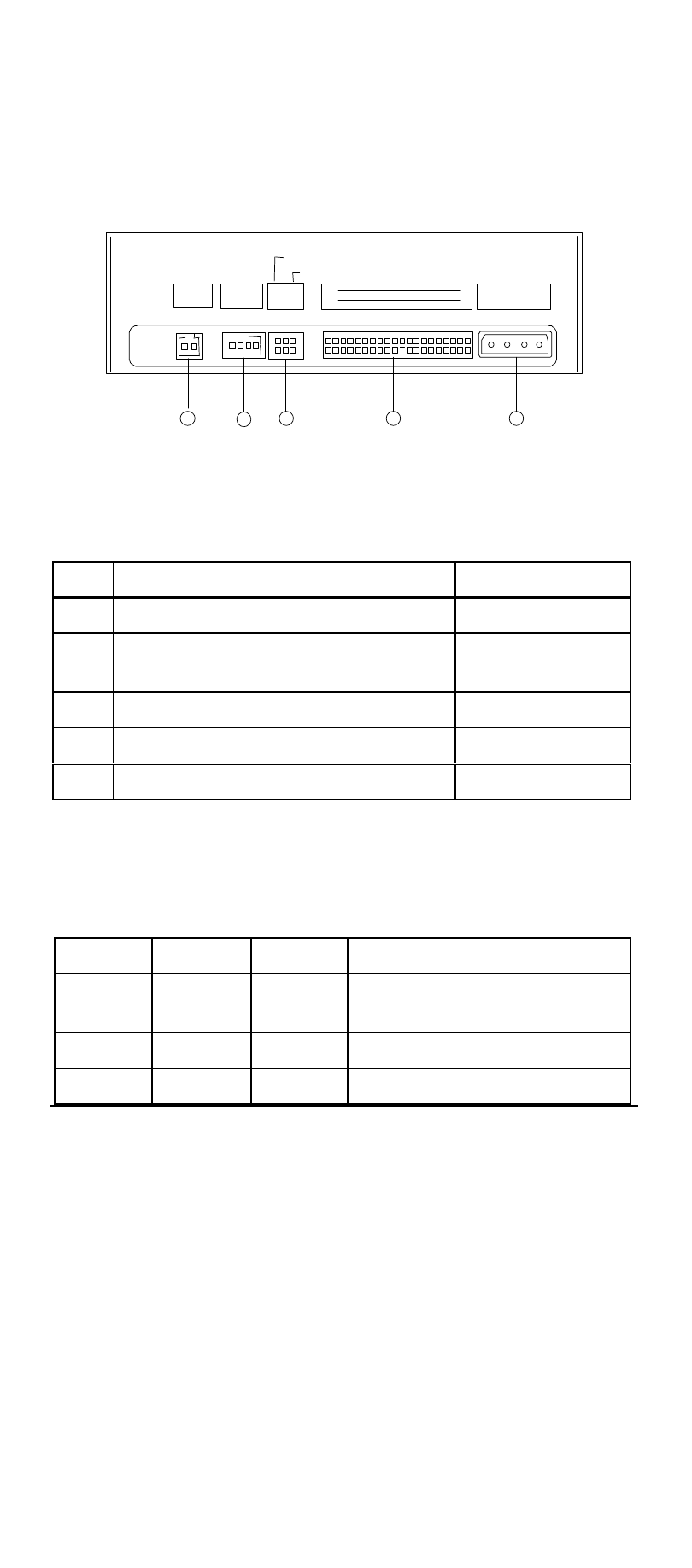

CD-ROM Drive Rear Panel Connectors and Features
R G G L
AUDIO
C S M
S L A
CABLE SELECT
SLAVE
MASTER
39
40 1
2
IDE INTERFACE
5V 12V G G
DC INPUT
5 4 3 2 1
NOT USED
1 2
CD-ROM Rear Panel
Item Function Connect to…
1 Power supply connector Power supply
2 IDE Connector IDE channel on
system board.
3 CD-ROM drive jumper settings --
4 Audio out CD1
5 Not Used --
CD-ROM Drive Jumper Settings
CS SL MA DESCRIPTION
-- -- On Drive configured as a
Master. (default)
-- On -- Drive configured as a Slave.
On -- -- Cable select
DIMM Configurations
The system board has two DIMM sockets. A maximum of
256KB memory may be installed.
You can install 32MB, 64MB, 128MB, DIMM’s in any sockets
and with any combinations. Or a single 256MB DIMM.
