Adapter cards – IBM MICRO TOWER 2169 User Manual
Page 117
115
Adapter Cards
Installing Adapter Cards
q Remove the screw that secures the adapter card retainer
and slot cover. Then remove the card retainer and slot
cover.

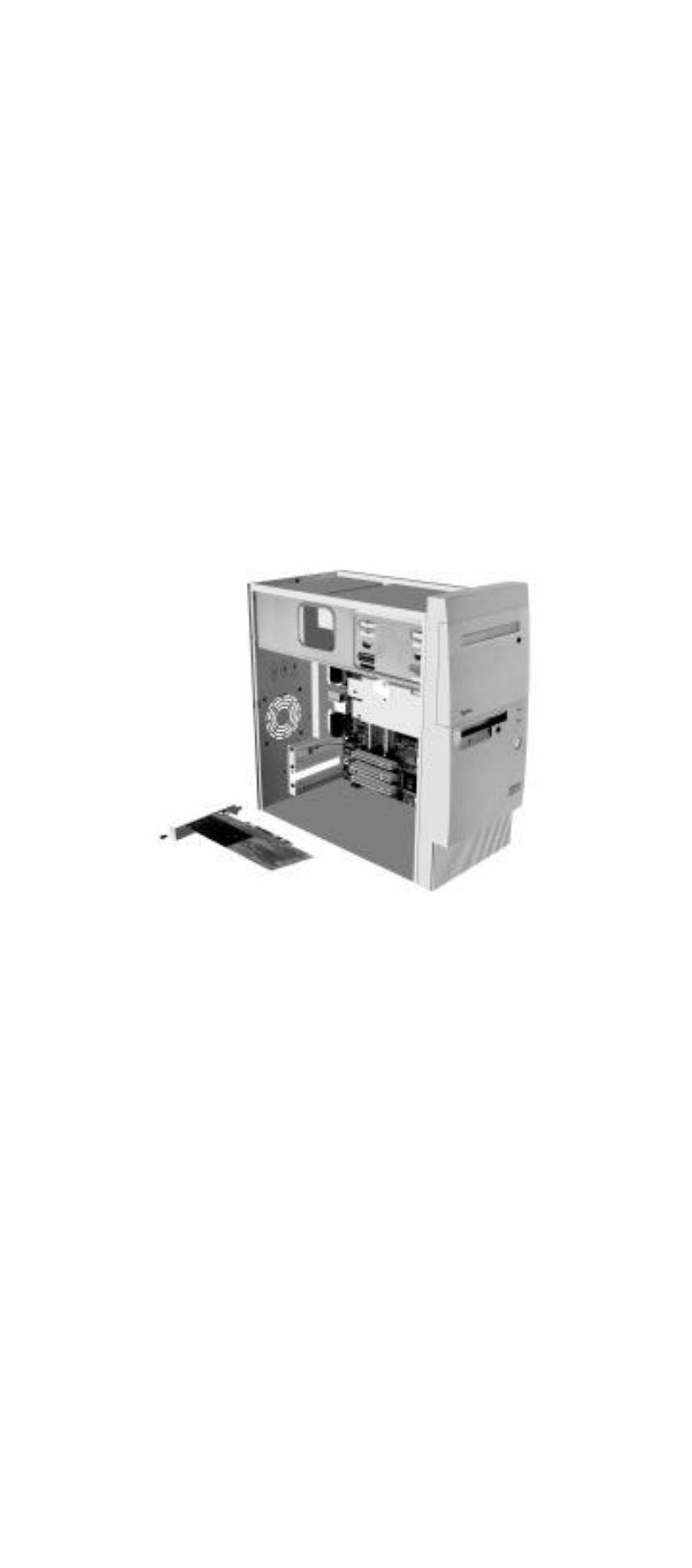

q Align and insert the adapter card into the adapter card
connector.
q Secure the card with the screw that you removed in the
first step.
q Reinstall all hardware (except for the slot cover, which
cannot be reinstalled) and screws that you removed prior
to the installation of the adapter card.
