System board – IBM MICRO TOWER 2169 User Manual
Page 122
120
System Board
To remove the system board from the system:
q To remove the system board. You must remove the
adapter cards first.
q Disconnect the power cable, CD-ROM cable, Diskette
Drive cable, Hard Disk Drive cable, audio cable, power
switch cable and LED cables from system board.

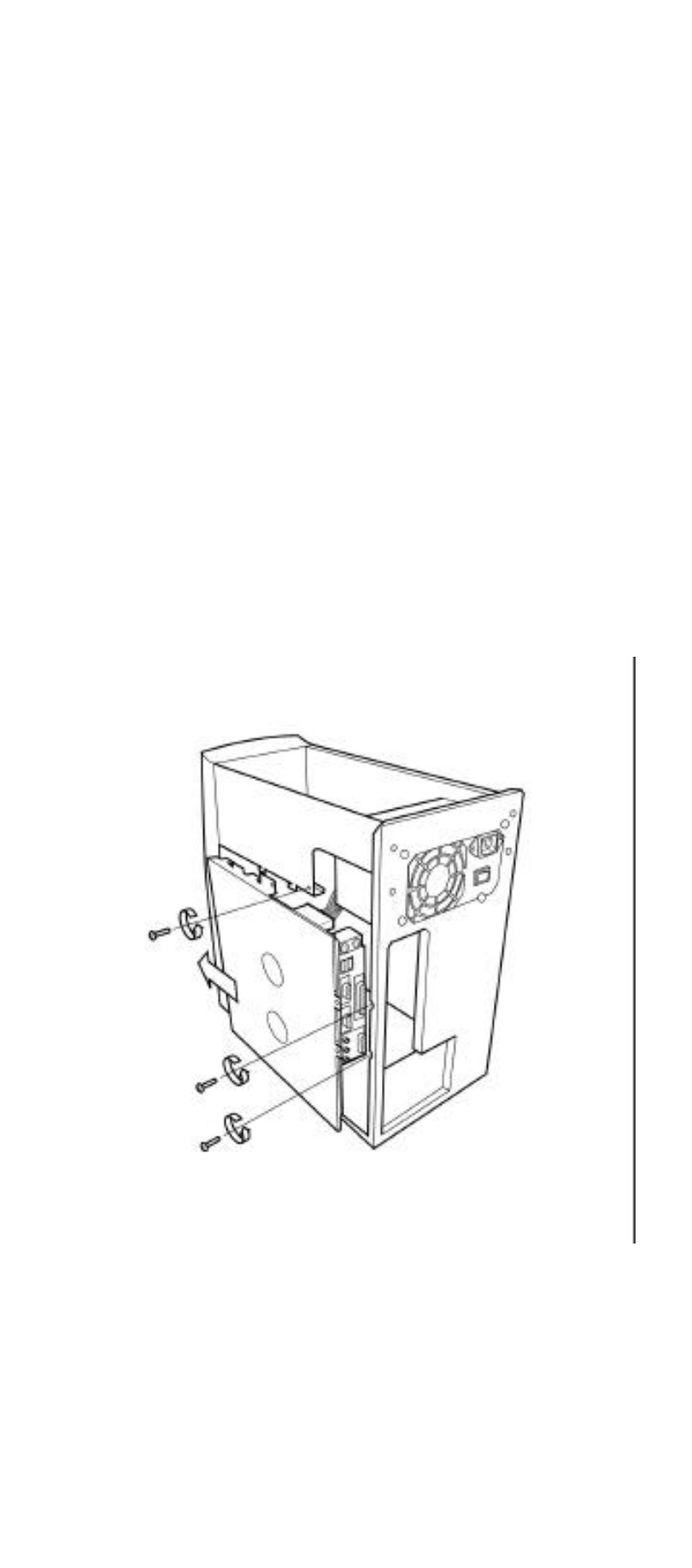

q Remove the three screws on the back planar plate.
q Slide the plate forwards and lift out with the syatem board
together.
Note: Be sure to keep the I/O Port Bracket on chassis when
replacing the system board.
