STEP 3 (See Diagram 3)

A.) Attach the two Upholstery Pads (#20) to the Handle Adjustment Frame (#16). Secure

each pad with two M8 x 1 ½” Allen Bolts (#18) and

½” Washers (#17).

B.) Attach the Foot Plate (#26) to the Akimbo Frame (#14). Securely tighten it with two

M10 x 1 3/4” Allen Bolts (#25),

¾” Washers (#3), and M10 Aircraft Nuts (#2).

C.) Insert one Foam Tube (#23) halfway through the hole on the Foot Adjustment Frame

(#24). Insert one Foam Tube halfway through the hole on the Akimbo Frame (#14).
Push four Foam Rolls onto the Tubes. Plug four

1” Foam Roll End Caps (#21) to

each end of Foam Roll.

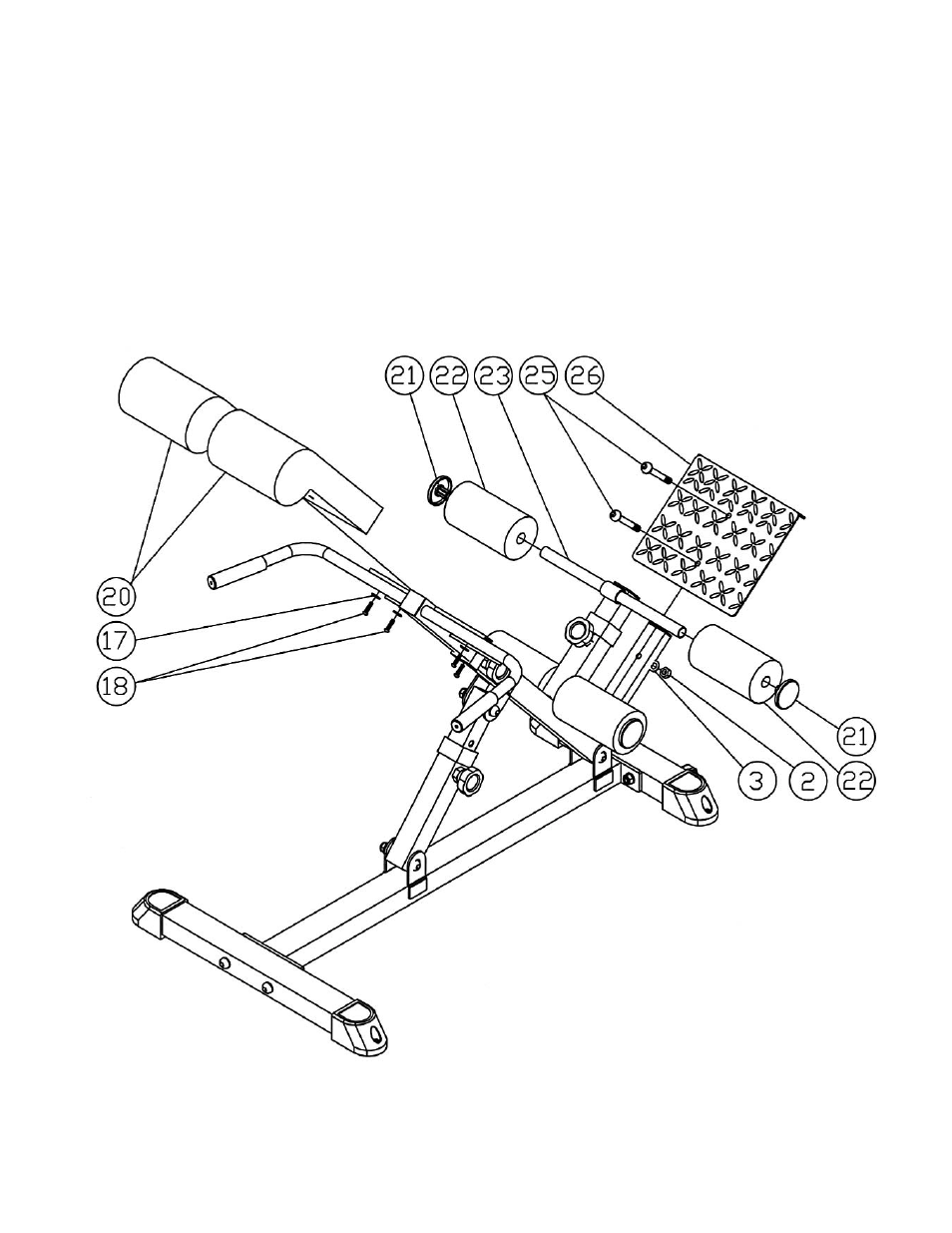

DIAGRAM 3
