User Manual version 2.1
OPEN (660) 120/140/150
6-76

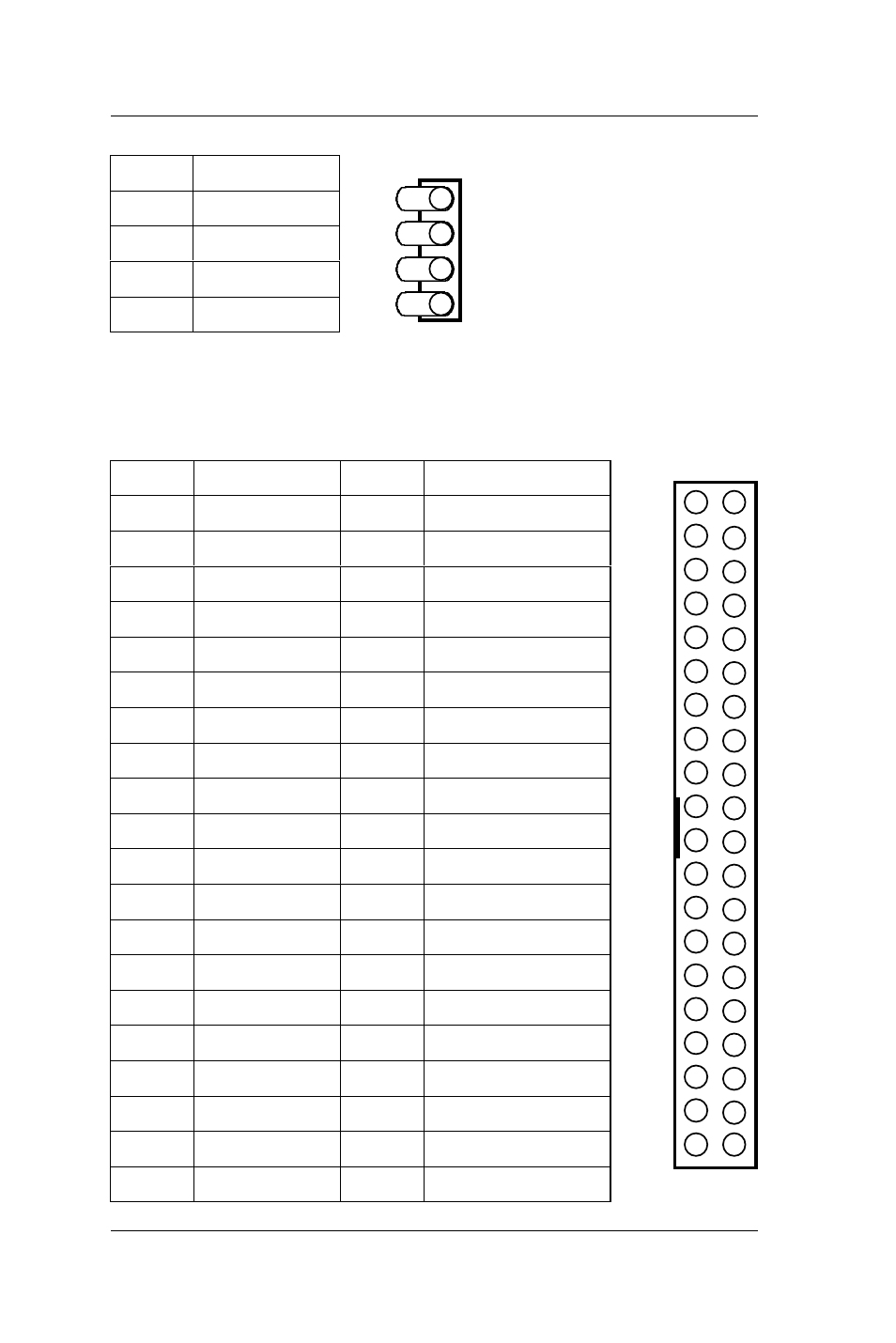

6.2.2.7. CN10: CD Audio Input Connector
Pin # Signal
1 AUXL
2 GND
3 GND
4 AUXR
6.2.2.8. CN9: Audio, Ethernet VGA CRT & LED Connector
The CN9 is a 40-pin, dual-in-line pin header providing signals
for audio, VGA CRT, Ethernet and LED.
CN9: Audio, VGA CRT, Ethernet and LED
Pin # Signal Pin # Signal
1 +5V 2 +5V
3 HDDLED 4 RESET
5 SMILED 6 LANLINK-LED
7 GND 8 LAN/RX-LED
9 GND 10 GND
11 GND 12 +5V
13 VSYNC 14 HSYNC
15 RED 16 GRN
17 BLUE 18 VGADDA
19 VGADCK 20 GND
21 CROMA 22 LUMA
23 COMP 24 GND
25 GND 26 GND
27 GND 28 MIC-IN
29 AUDIO-L 30 AUIDO-R
31 LINE IN-L 32 LINE IN-R
33 SPKRDAT 34 +5V
35 LANGND 36 TX+
37 TX- 38 RX+
39 RX- 40 LANGND
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
4
3
2
1
