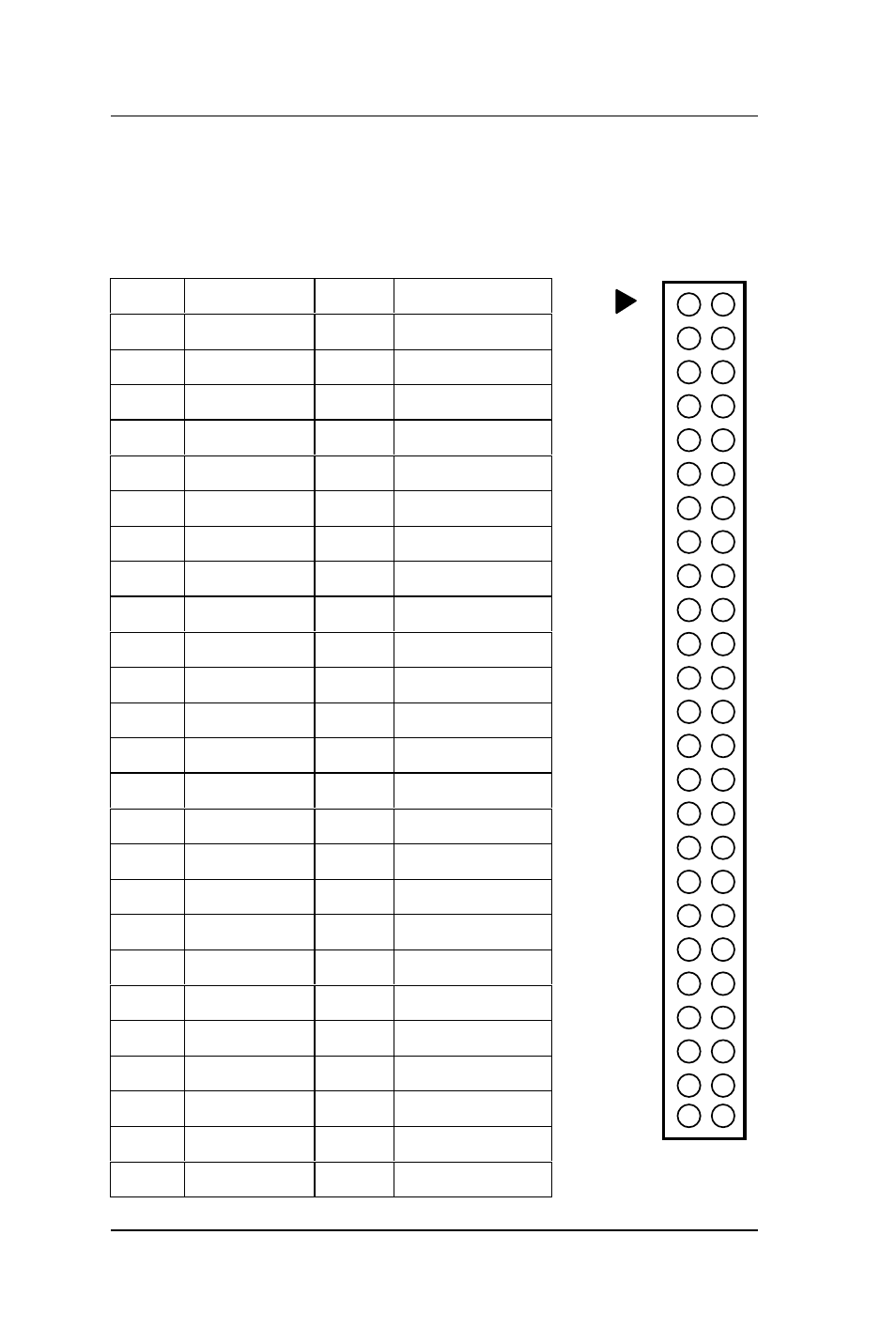

6.2.2.3. CN3/CN1: Flat Panel Connector
CN3 is a 50-pin flat panel connector and CN1 is a LCD
backlight connector. Their pin assignments are listed
below.
CN3: Flat Panel Connector
Pin Signal Pin Signal
1 VEESAFE 2 VEESAFE
3 GND 4 GND
5 VDDSAFE 6 VDDSAFE
7 ENAVEE 8 ENABKL
9 LP0 10 LP1
11 LP2 12 LP3
13 LP4 14 LP5
15 LP6 16 LP7
17 LP8 18 LP9
19 LP10 20 LP11
21 LP12 22 LP13
23 LP14 24 LP15
25 LP16 26 LP17
27 LP18 28 LP19
29 LP20 30 LP21
31 LP22 32 LP23
33 GND 34 GND
35 SCLK 36 FLMM
37 MS 38 LPP
39 LP24 40 LP25
41 LP26 42 LP27
43 LP28 44 LP29
45 LP30 46 LP31
47 LP32 48 LP33
49 LP34 50 LP35
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
