Intel OPEN (660) 120/140/150 II User Manual
Page 85
User Manual version 2.1
OPEN (660) 120/140/150
6-75
6.2.2.6. CN8: KB, MS, USB & PRT Connector
The PC 660A3 provides one keyboard port, one PS/2
mouse port, two USB ports and one parallel port with
their signal mixed in the CN8 connector.

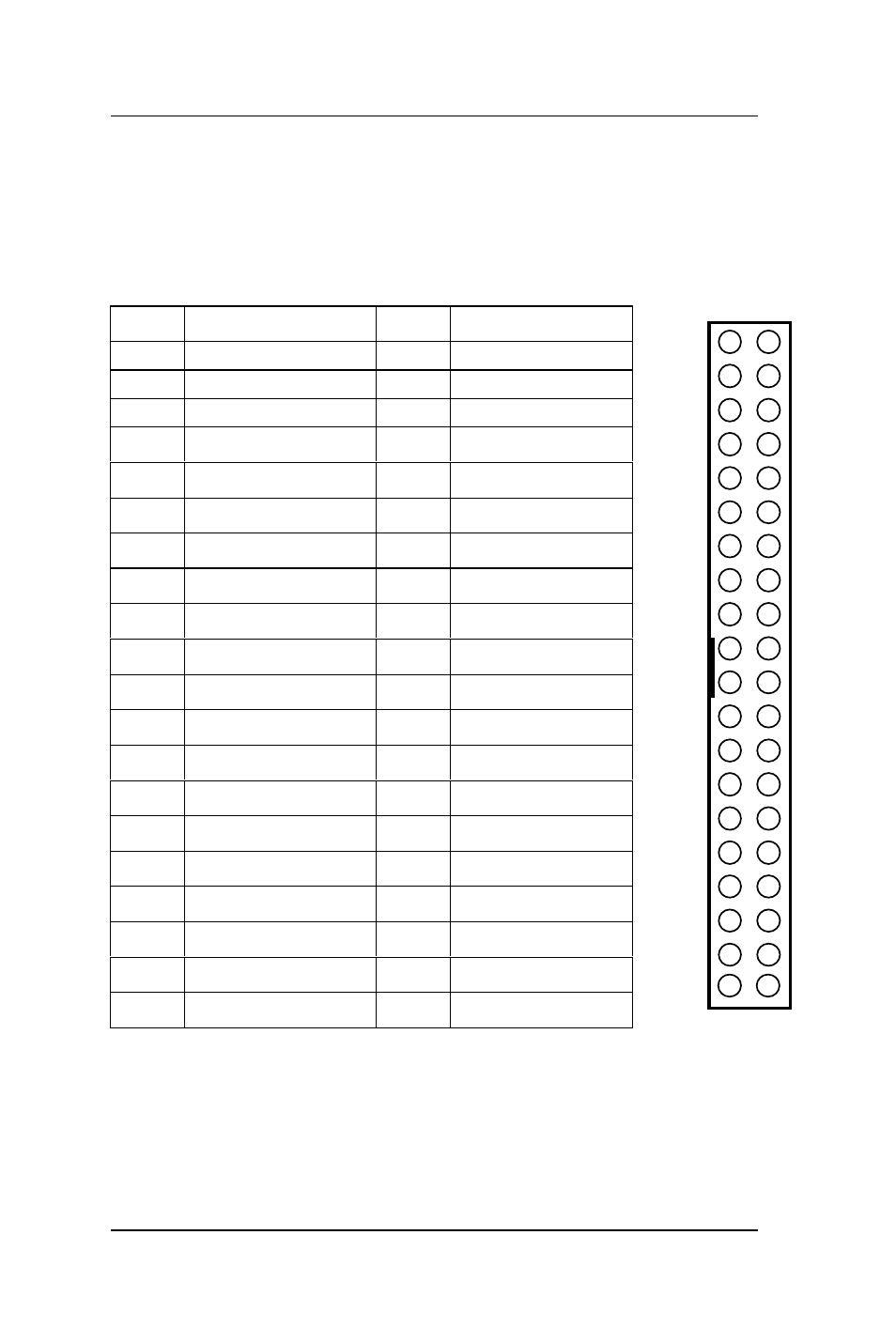

CN8: Keyboard, Mouse, USB & PRT Ports
Pin # Signal
Pin # Signal
1
+5V
2
+5V
3
USBDAT0-
4
USBDAT1-
5
USBDAT0+
6
USBDAT1+
7
GND
8
GND
9
+12V
10 +12V
11 GND
12 GND
13 PS2KBDAT
14 PS2MSDAT
15 PS2KBCLK
16 PS2MSCLK
17 +5V
18 +5V
19 NC
20 NC
21 GND
22 GND
23 GND
24 DATA7
25 SLCTIN
26 DATA6
27 INIT
28 DATA5
29 ERROR
30 DATA4
31 AUTOFD
32 DATA3
33 SLCT
34 DATA2
35 PE
36 DATA1
37 BUSY
38 DATA0
39 ACK
40
STORBE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
