Step 4 (see diagram 4), Bolts (#32) and ( 5/8” washers (#34), Diagram 4 – Impex TC 3000 User Manual

Page 8

STEP 4 (See Diagram 4)

A.) Attach Backrest Pad (#16) to the Upper Vertical Frame (#5). Secure it with two M8 x 2 ¾” Allen
Bolts (#32) and

∅

5/8” Washers (#34).

B.) Insert the Chin-up Bar (#10) into the top opening on the Upper Vertical Frame (#5). Secure it
with one M10 x 3 ¼” Allen Bolt (#29), two

∅

¾” Washers (#35), and one M10 Aircraft Nut (#36).

C.) Slide two Chin-up Handle Grips (#20) onto both ends of the Bar (#10).
E.) Insert the 2 ½” End Cap (#37) to the opening on the Chin-up Bar (#10).

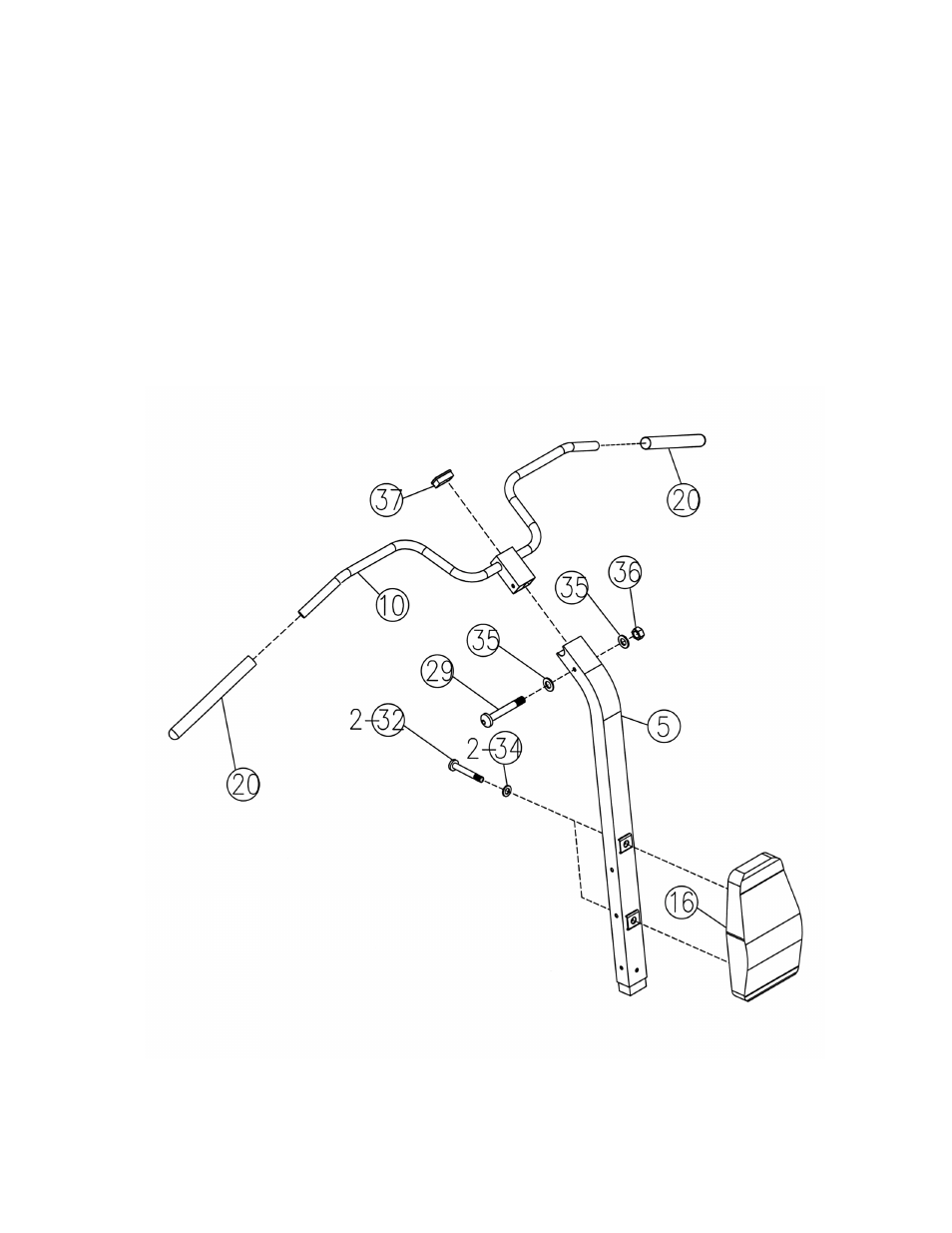

DIAGRAM 4
