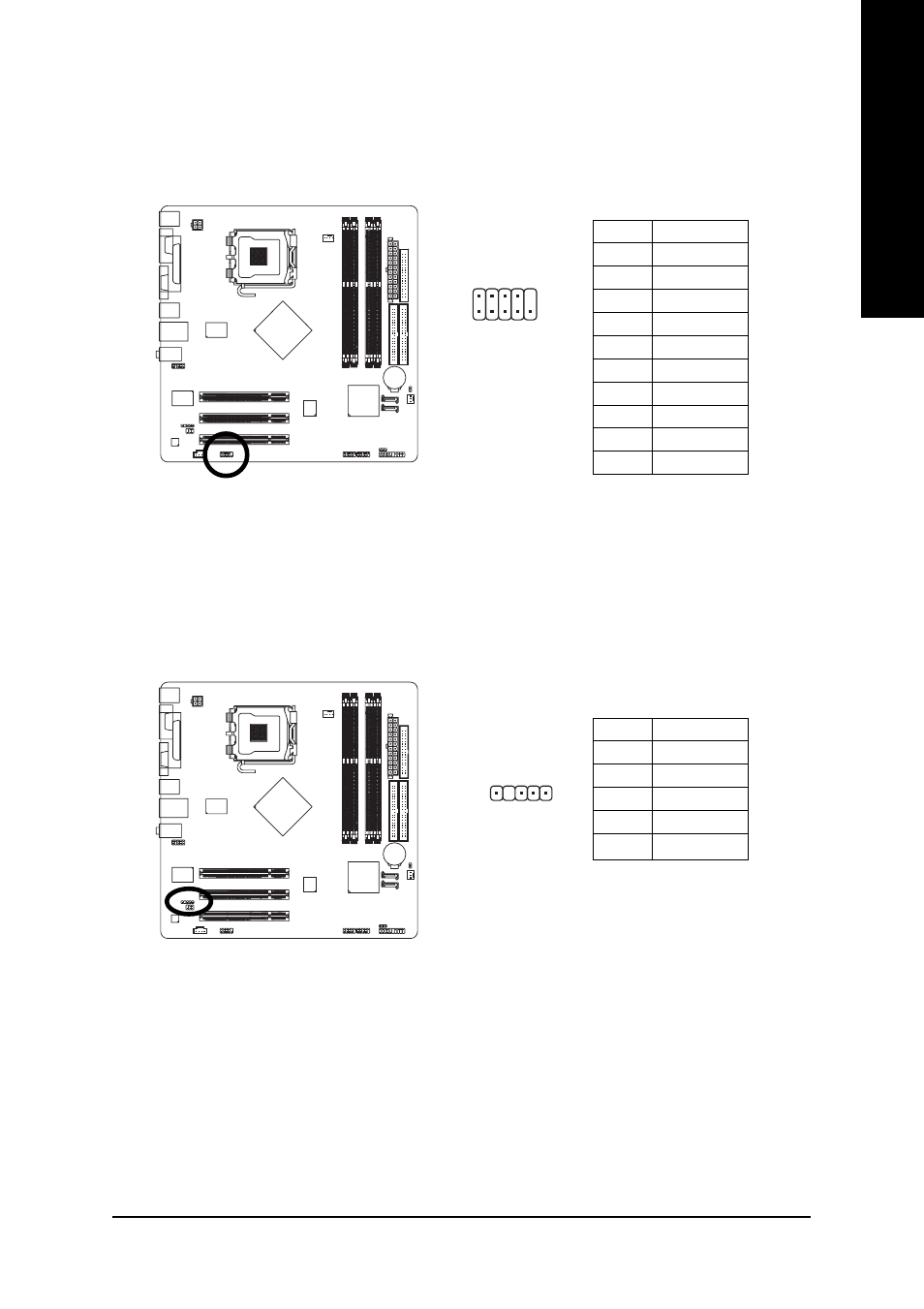

15) COMB (COM B Connector)
Be careful with the polarity of the COMB connector. Check the pin assignment carefully while you
connect the COMB cable, incorrect connection between the cable and connector will make the device
unable to work or even damage it. For optional COMB cable, please contact your local dealer.
Pin No.
Definition
1
NDCDB-
2
NSINB
3
NSOUTB
4
NDTRB-
5
GND
6
NDSRB-
7
NRTSB-
8
NCTSB-
9
NRIB-
10
No Pin
16) IR
Be careful with the polarity of the IR connector while you connect the IR. Please contact your nearest
dealer for optional IR device.
Pin No.
Definition
1
Power
2
No Pin
3
IR RX
4
GND
5
IR TX
1
2
10
1
9
