English – Intel GA-8I865GVMK-775 User Manual
Page 21
Hardware Installation
- 21 -
English

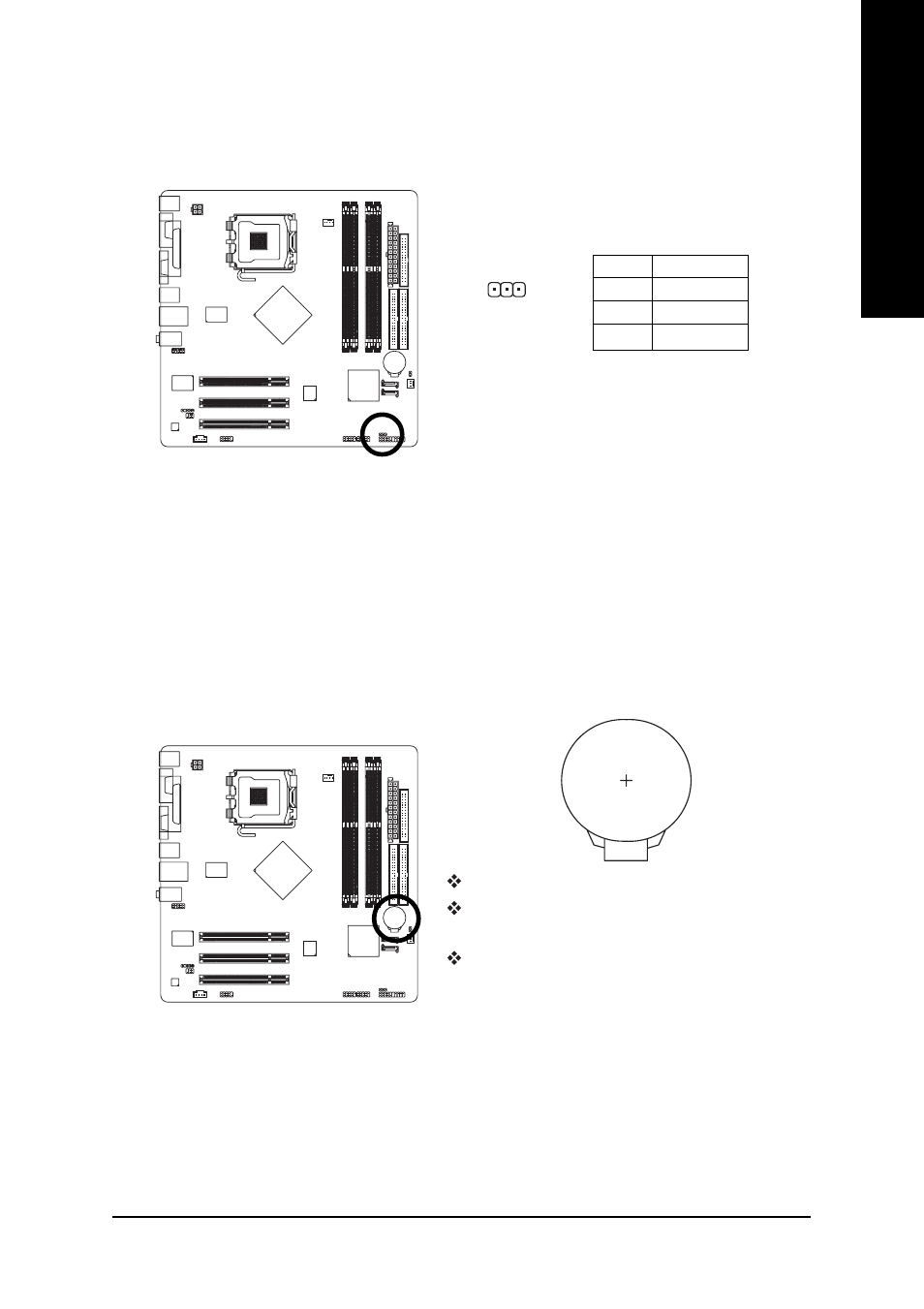

8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will
blink when the system enters suspend mode.
Pin No.
Definition
1
MPD+
2
MPD-
3
MPD-
1
9) BAT(Battery)
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer.
Dispose of used batteries according to the manufacturer's
instructions.
If you want to erase CMOS...
1. Turn OFF the computer and unplug the power cord.
2. Take out the battery gently and put it aside for about 10 minutes.
(Or you can use a metal object to connect the positive and nega-
tive pins in the battery holder to makethem short for one
minute.)
3. Re-install the battery.
4. Plug the power cord and turn ON the computer.
