STEP 5 (See Diagram 5)

A.) Insert a M12 x 6 ¼” Hex Bolt (#54) through the Right Butterfly (#12). Secure the Bolt

with a M12 Regular Nut (#53). Insert the Bolt through the hole on the Right Upright
Beam (#1) and secure it with a M12 Lock Knob (#49).

B.) Attach the Butterfly Handle (#14) to the Right Butterfly (#12). Secure it with one M10 x

¾” Allen Bolt (#39) and

1 ¼” Washer (#55).

C.) Attach Spring Clip (#48) to weight post on the Butterfly.
D.) Repeat the Procedures A, B & C above to install the other side.

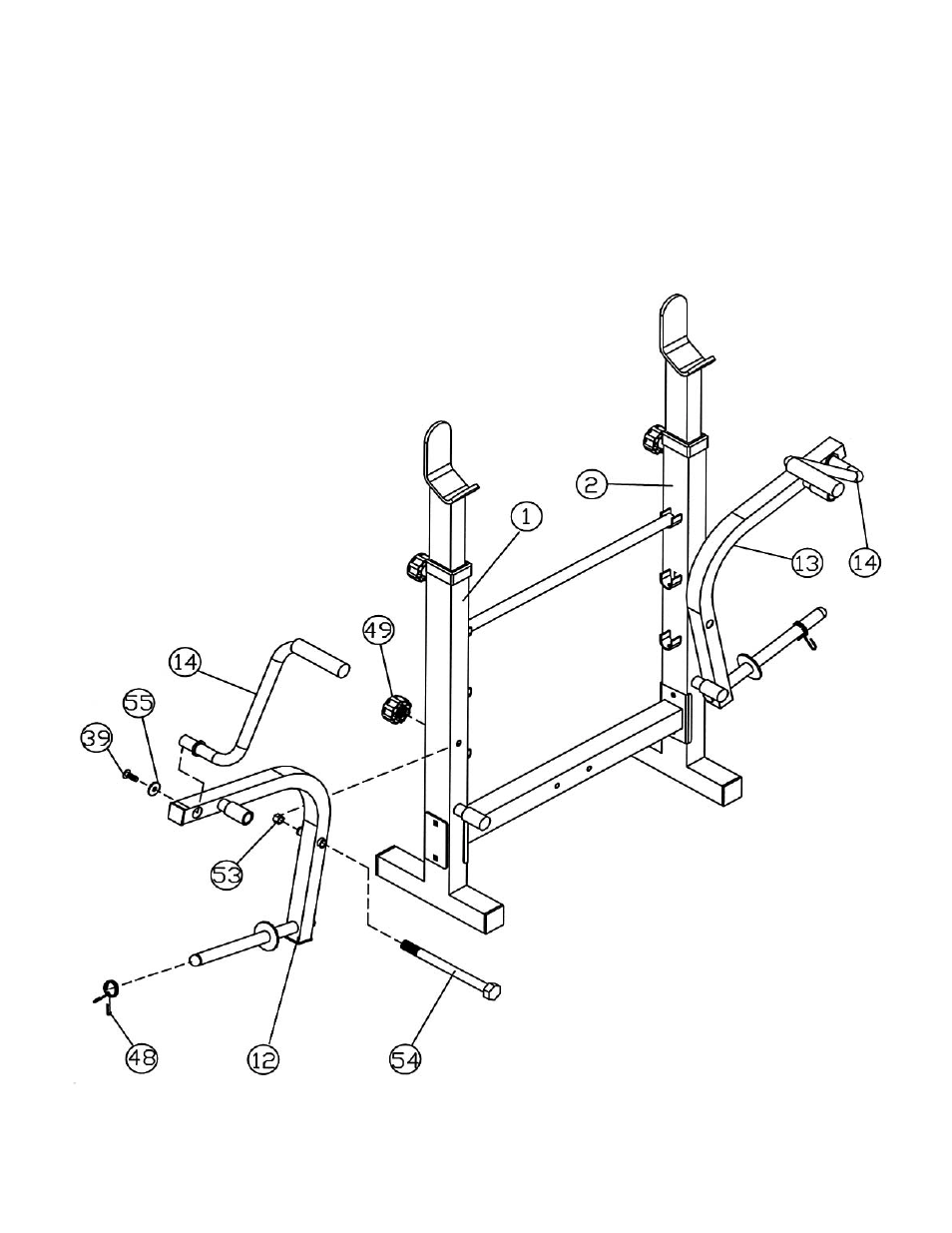

DIAGRAM 5
