STEP 3 (See Diagram 3)
A.) Attach the Leg Developer (#10) to the open bracket on the Front Support (#8).
Secure it with an Axle (#44), two
∅
¾” Washers (#45), and two M10 x ¾” Allen Bolts
(#39).
B.) Insert one Foam Tube (#16) halfway through the hole on the Front Support (#8).
Insert two Foam Tubes halfway through the holes on the Leg Developer. Push six
Foam Rolls (#23) onto the Foam Tubes. Plug six Foam Roll End Caps (#56) into the
ends.
C.) Attach the Curl Handle (#11) to the open bracket on the Leg Developer. Lock it with
a L-shape Pin (#22) for Arm Curl exercises. Remove the Pin when using the Leg
Developer.
D.) Attach a Spring Clip (#48) to the weight post on the Leg Developer.

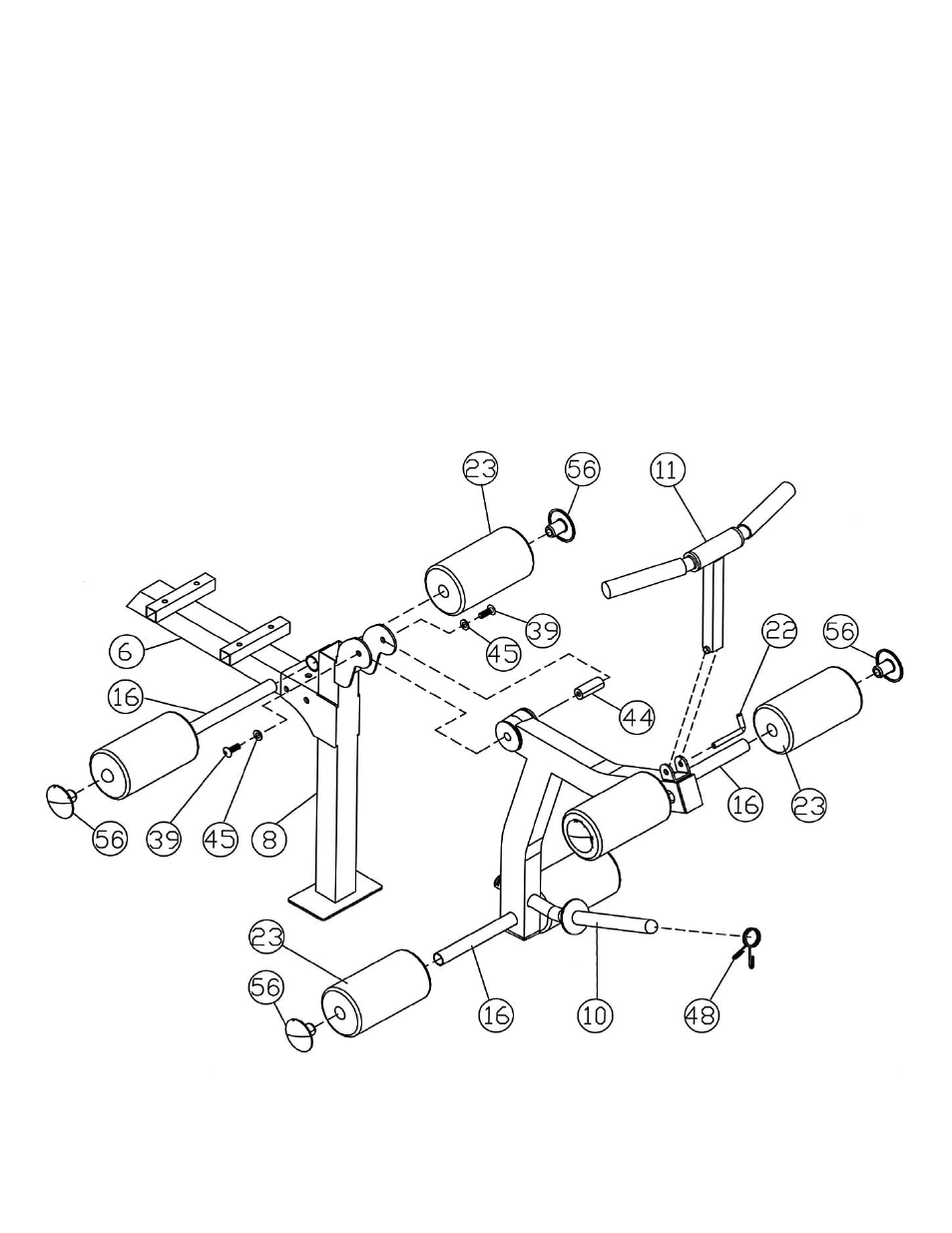

DIAGRAM 3
