STEP 4 (See Diagram 4)
A.) Attach the hole-side of the Backrest Supports (#7) to both ends of the pivot on the
Main Seat Support (#6). Secure it with one M12 x 7 ¼” Hex Bolt (#38) and M12
Aircraft Nut (#42). Place the other end of Backrest Supports rest against the Backrest
Adjustment Bar.
B.) Place the Backrest Board (#19) onto the Backrest Supports (#7). Secure it with four
M6 x 1 3/8” Hex Bolts (#41) and
∅
½” Washers (#47).
C.) Place the Seat (#18) onto the Main Seat Support (#6). Secure it with four M6 x 1
3/8” Hex Bolts (#41) and
∅
½” Washers (#47).
D.) Attach the Arm Curl Pad (#20) to the Arm Curl Stand (#9). Secure it with two M8 x
¾” Allen Bolts (#40) and
∅
5/8” Washers (#46).
E.) Insert the Arm Curl Stand (#9) into the top opening on the Front Support (#8).
Secure it with a Lock Knob (#30).

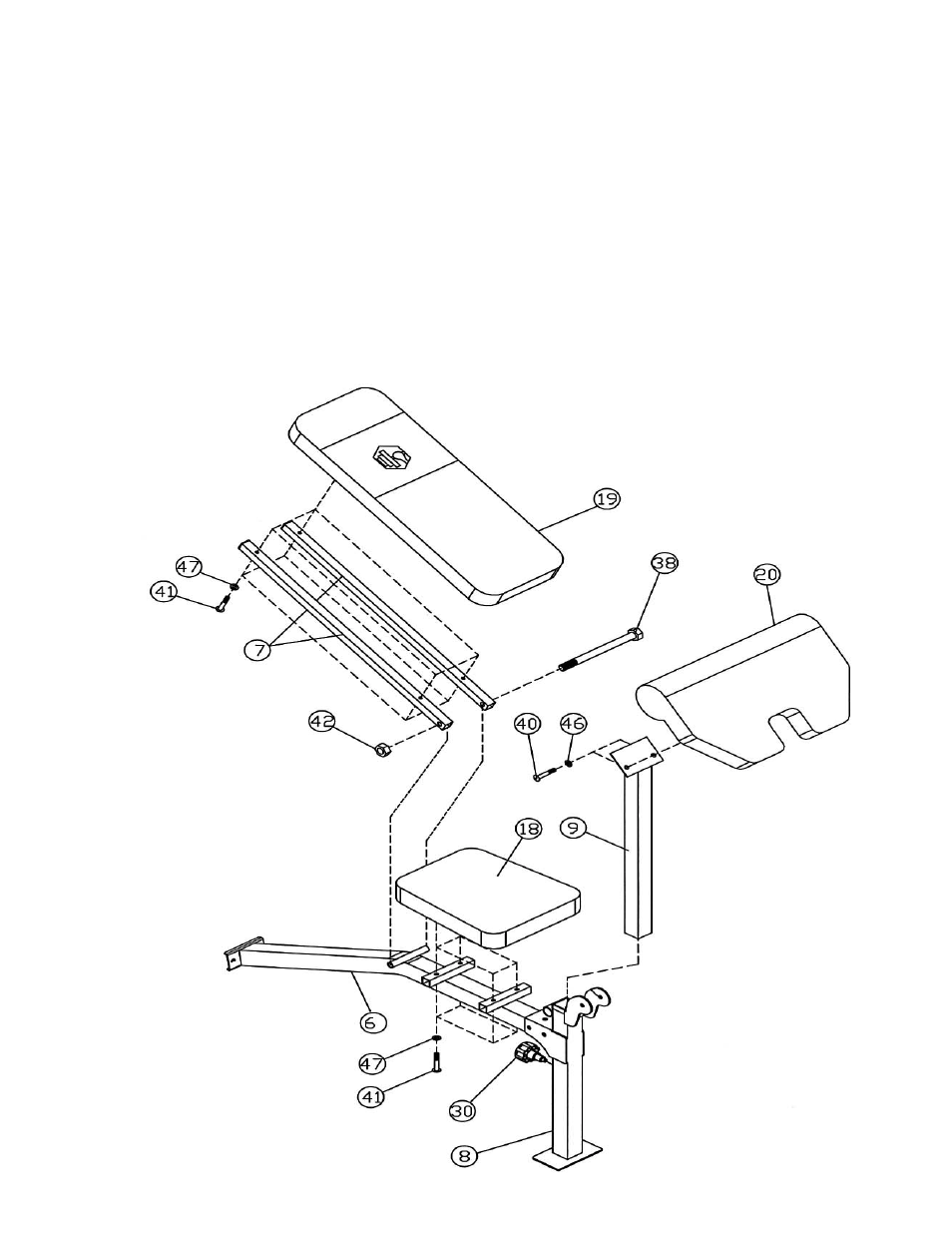

DIAGRAM 4
