Impex WM 1407 - Manual (Page 9)

STEP 5 (See Diagram 5)
A.) Place the Backrest Board (#24) onto the Main Seat Support (#3). Secure it with four M8
x 5/8” Allen Bolts (#49) and
∅
½” Washers (#54).
B.) Place the Seat (#23) on the Main Seat Support. Secure it with four M8 x 5/8” Allen Bolts
(#49) and
∅
½” Washers (#54).
C.) Insert one Foam Roll Tube (#12) halfway through the hole on the Front Stabilizer. Insert
one Foam Roll Tube halfway through the hole on the Leg Developer. Push four Foam
Rolls (#37) onto the Tubes from both sides.

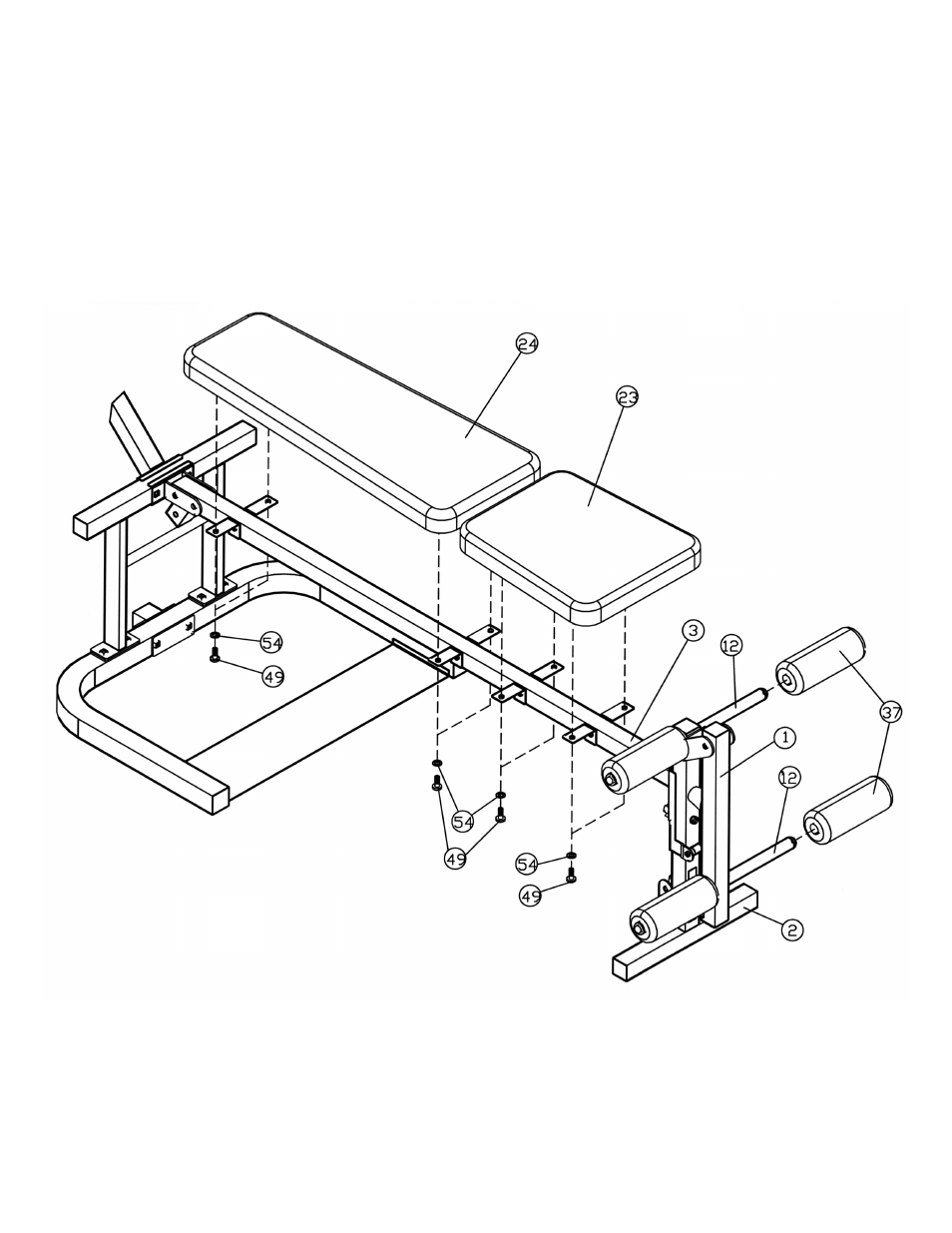

DIAGRAM 5
8
