Assembling, Tilt the rear frame back a little, Install the basket – Invacare Lynx L-4 User Manual
Page 45: Frame tube, Figure 11.1 transporting the scooter
11 TRANSPORTING
45
Assembling
1.
Unfold tiller. Refer to Adjusting the Tiller Angle on page 26.
2.
Tilt the rear frame back a little.
3.
Hold the seat post and align the frame tubes on the front frame assembly with the mounting recesses on the rear frame assembly (Detail “B”).
4.
While holding the seat post, slowly pivot the rear frame assembly forward until the release lever locks (Detail “A”).
5.
Install the battery box. Refer to Refer to Removing/Installing the Battery Box on page 30.
6.
Install the seat. Refer to Removing/Installing the Seat on page 23.
7.
Install the basket.

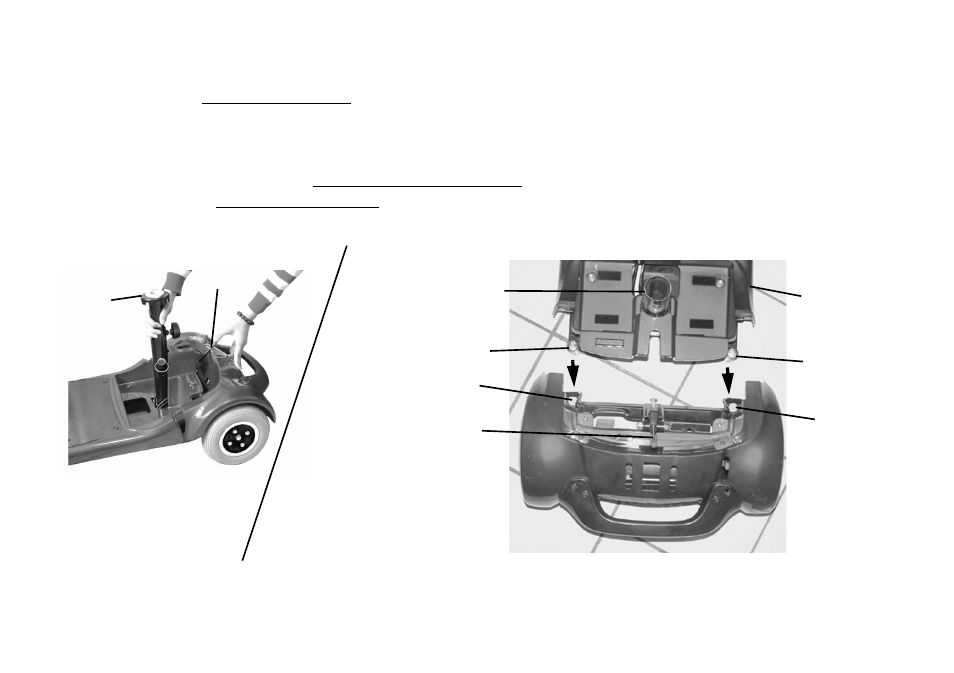

FIGURE 11.1 Transporting the Scooter
Frame Tube
Rear Frame Assembly
(Slightly Tilted)
Release
Lever
Front Frame
Assembly
Seat Post
Release
Lever
DETAIL “A”
DETAIL “B”
Seat Post
Frame Tube
Mounting
Recess
Mounting
Recess
