10 BATTERIES
Part No. 1143205 39 Lynx™L-3 & Lynx L-4 Scooters
10.2 Removing/Installing the Battery Box
Removing
1. Turn power off and remove the key from the ignition.
2. Remove the seat. Refer to Removing/Installing the Seat on page 23.
3. Hold the battery box handle and lift the battery box up and away from the scooter (Detail “A”).
Installing
1. Turn power off and remove the key from the ignition.
2. Remove the seat. Refer to Removing/Installing the Seat on page 23.
3. Holding the battery box handle, carefully lower the battery box on to the battery tray in the scooter (Detail “B”).
4. Press down the battery box to engage the connector on the battery box (not shown) with the connector on the scooter base (Detail “B”).
5. Reinstall the seat. Refer to Removing/Installing the Seat on page 23.

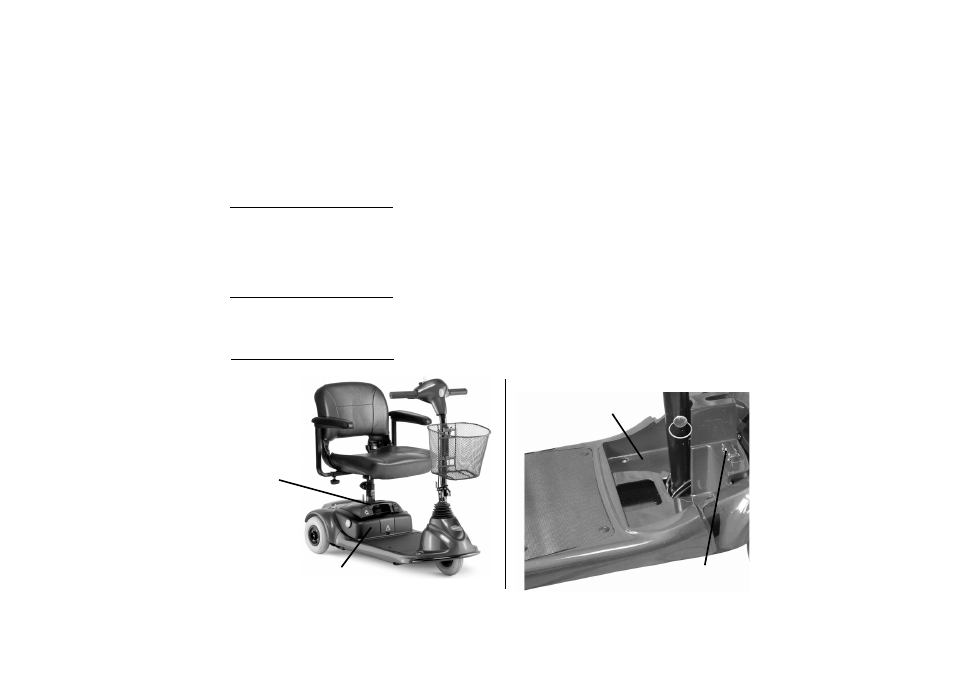

FIGURE 10.2 Removing/Installing the Battery Box
 For this procedure, refer to FIGURE 10.2 on page 39.
The battery box is held in place with hook and loop strips.
Battery Box
Battery Box
Handle
Battery Tray
Connector on Base
DETAIL “A” DETAIL “B”
