4.

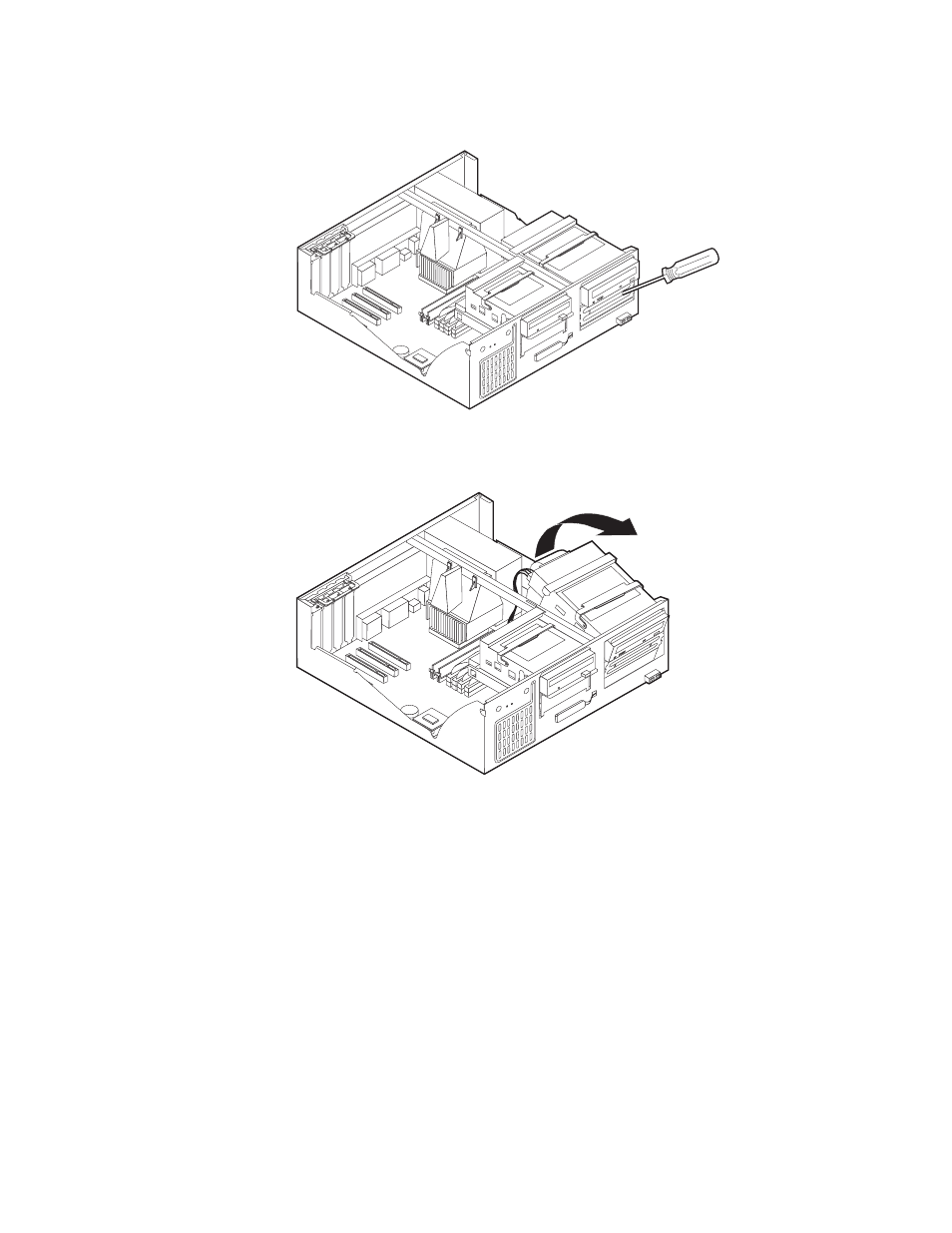

Remove

the

metal

shield

from

the

drive

bay

by

inserting

a

flat–blade

screwdriver

into

one

of

the

slots

and

gently

pry

it

loose.

5.

Pivot

the

drive

bay

latch

handle

toward

the

front

of

the

computer

and

pivot

the

drive

bay

cage

toward

the

front

of

the

computer

until

the

drive

cage

latch

catches

to

the

chassis.

6.

Make

sure

the

drive

that

you

are

installing

is

set

correctly

as

either

a

master

or

a

slave

device.

v

If

it

is

the

first

CD

drive

or

DVD

drive,

set

as

a

master

device.

v

If

it

is

an

additional

CD

drive

or

DVD

drive,

set

as

a

slave

device.

v

If

it

is

a

hard

disk

drive,

set

as

a

slave

device.

Refer

to

the

documentation

that

comes

with

your

drive

for

master/slave

jumper

information.

Chapter

6.

FRU

Removals

75
