Types
8305,
8306,
8309,
and
8313

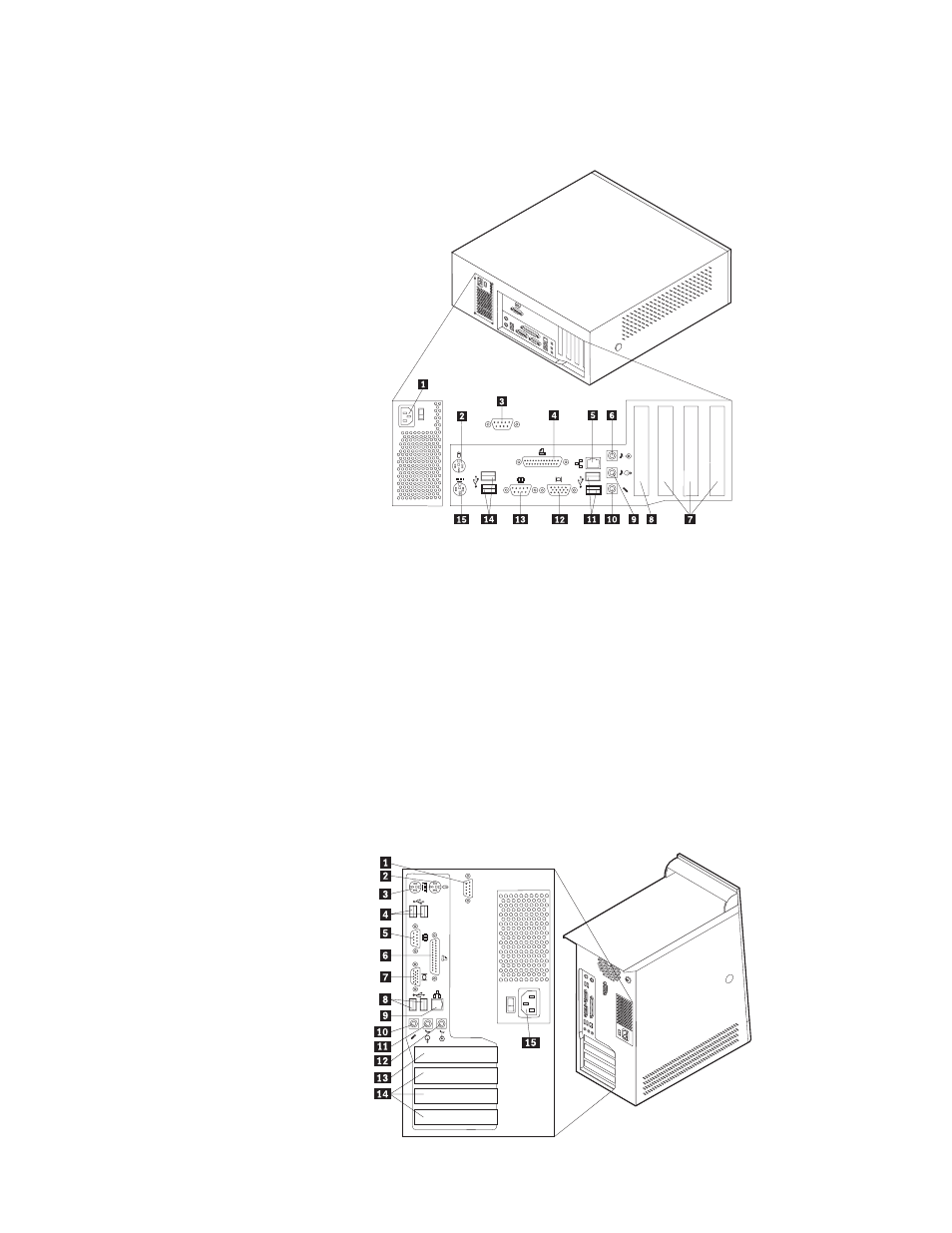

The
following
illustration
shows
the
locations
of
the
connectors
on
the
rear
of
the
computer.
1 Power
connector
9
Audio
line
out
connector
2 Mouse
connector
10 Microphone
connector
3 Serial
connector
11 USB
connectors
4 Parallel
connector
12 VGA
monitor
connector
5 Ethernet
connector
13 Serial
connector
6 Audio
line
in
connector
14 USB
connectors
7 PCI
slots
15 Keyboard
connector
8 AGP
slot
(some
models)
Note:
Some
connectors
on
the
rear
of
the
computer
are
color-coded
to
help
you
to
determine
where
to
connect
the
cables
on
your
computer.
Types
8307,
8308,
8310,
8311,
8314,
and
8315
The
following
illustration
shows
the
locations
of
the
connectors
on
the
back
of
the
computer.
