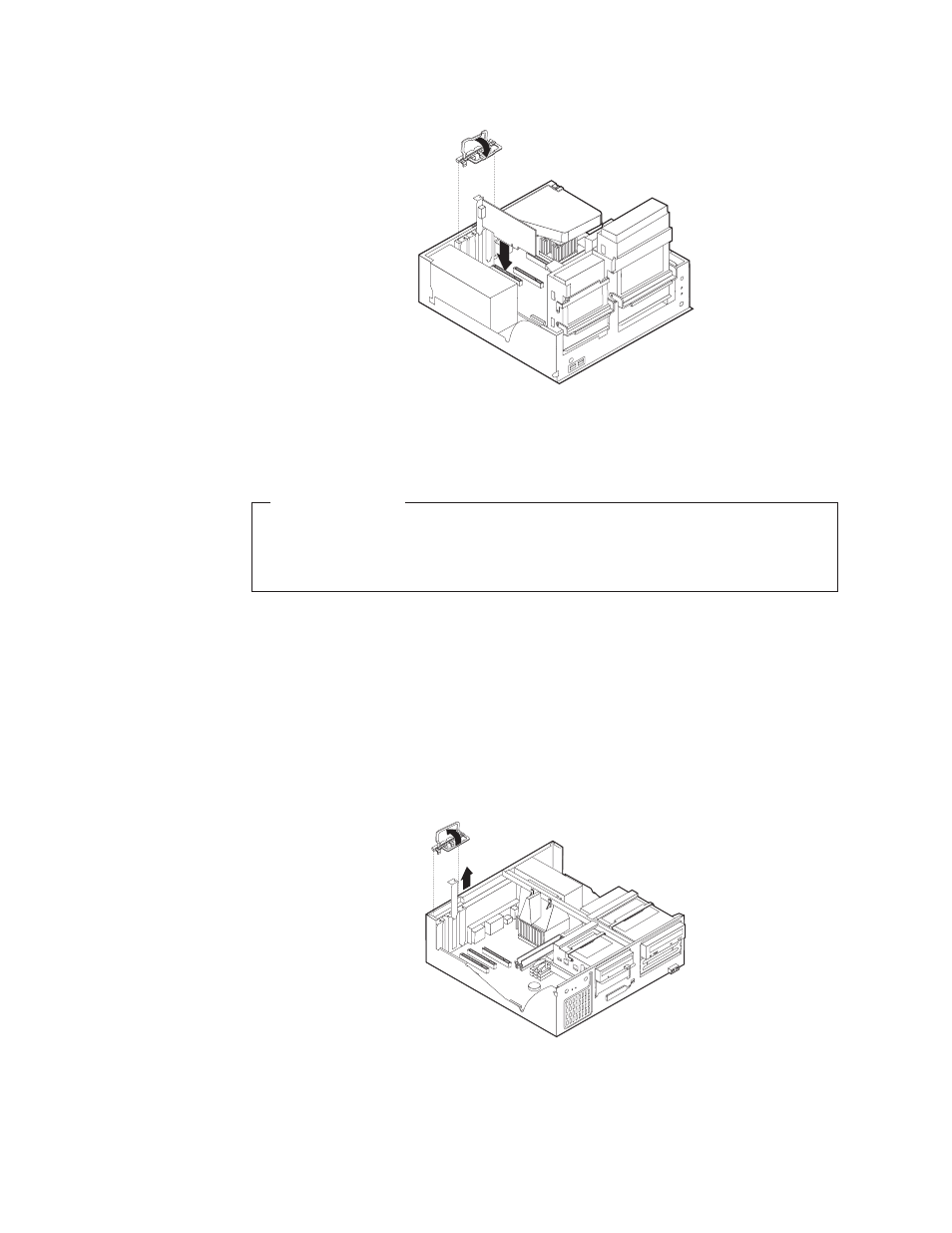

7.

Install

the

adapter-slot-cover

latch.

8.

Clear

any

cables

that

might

impede

the

replacement

of

the

drive

bays.

9.

Replace

the

support

bar

and

pivot

the

two

drive

bays

back

to

their

original

positions.

What

to

do

next:

v

To

work

with

another

option,

go

to

the

appropriate

section.

v

To

complete

the

installation,

go

to

“Replacing

the

cover

and

connecting

the

cables”

on

page

67.

Installing

adapters

in

Types

8305,

8306,

8309,

and

8313

This

section

provides

information

and

instructions

for

installing

and

removing

adapters.

Your

computer

has

three

expansion

slots

for

PCI

adapters

and

one

slot

used

for

an

AGP

adapter.

You

can

install

an

adapter

up

to

340

mm

(13.4

inches)

long.

To

install

an

adapter:

1.

Remove

the

cover.

See

“Types

8305,

8306,

8309,

and

8313”

on

page

40.

2.

Remove

the

adapter-slot-cover

latch

and

the

slot

cover

for

the

appropriate

expansion

slot.

3.

Remove

the

adapter

from

its

static-protective

package.

4.

Install

the

adapter

into

the

appropriate

slot

on

the

system

board.

50

Hardware

Maintenance

Manual
