STEP 4 (See Diagram 4)

A.) Attach the Backrest Supports (#10) onto both ends of the pivot on the Main Seat Support

(#3). Place the other end rest against the Backrest Adjustment Bar (#28).

B.) Place the Backrest Board (#27) onto the Backrest Supports. Secure it with four M6 x 1 ½”

Hex Bolts (#34) and Ø ½” Washers (#37).

C.) Place the Seat Pad (#26) onto the Main Seat Support. Secure it with four M6 x 1 ½” Hex

Bolts (#41) and Ø ½” Washers (#37).

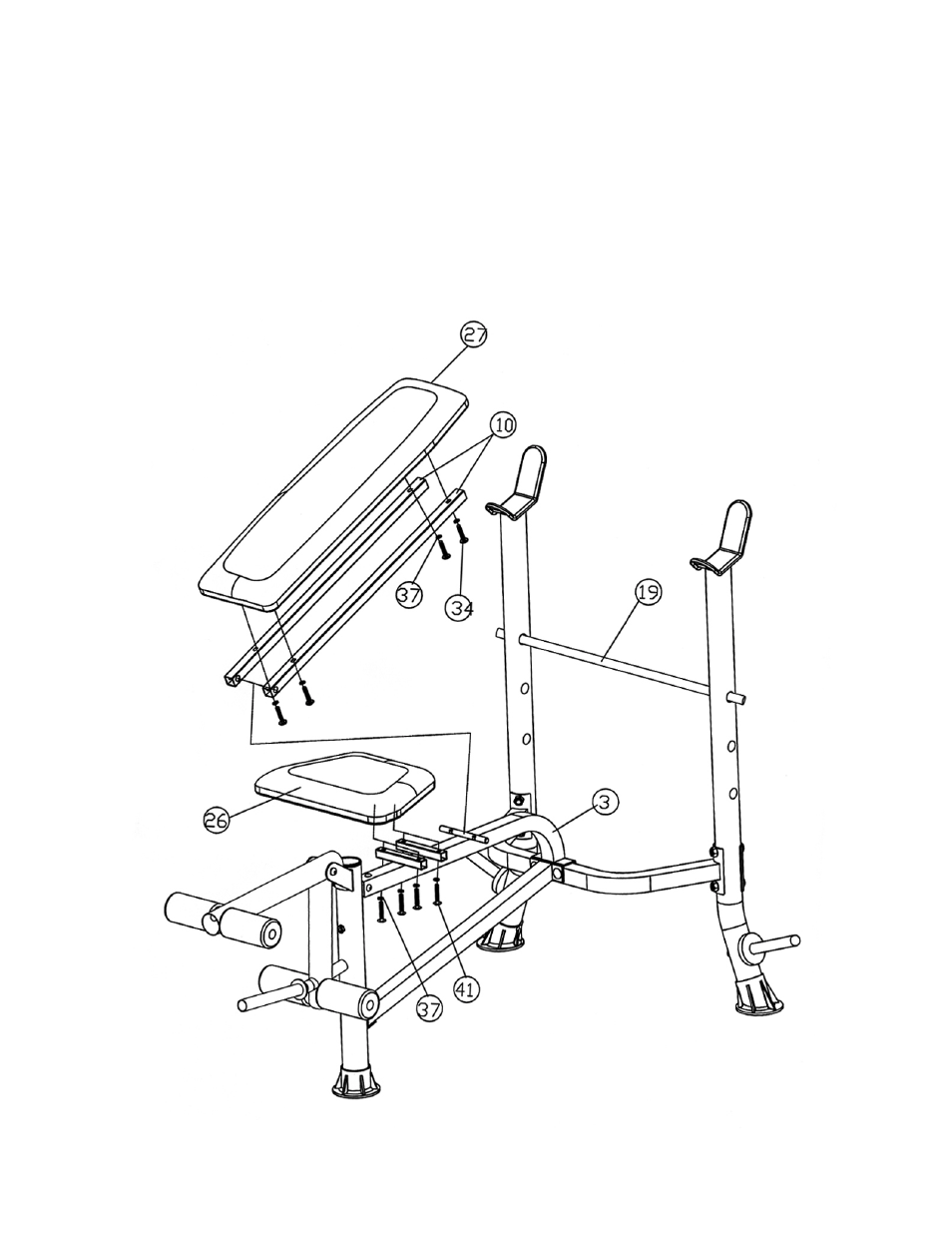

DIAGRAM 4
