4 OPERATION
Invacare®MA80 Series Mattresses
16
4.3 Installing the Control Unit
1.
Pull out the bed hook on the back of the control unit.
2.
Place the control unit on the footboard.

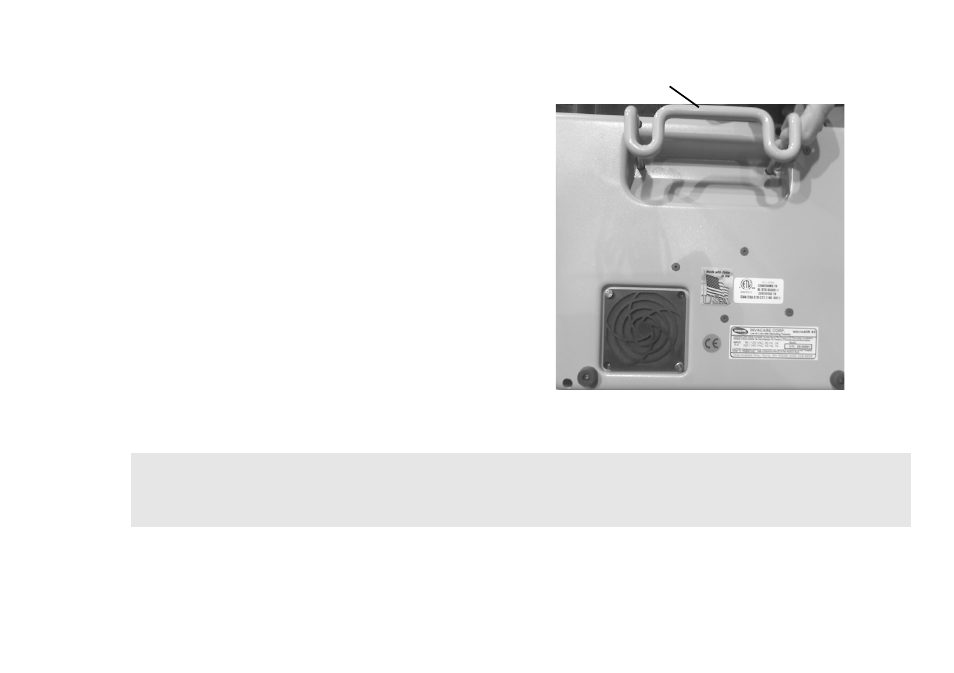

FIGURE 2 Installing the Control Unit
4.4
Connecting the Hose
1.
Locate the hose at the foot end of the mattress.
2.
Locate the control unit connector on the right side of the control unit.
3.
Lift and hold the connector cover up.
4.
Push the hose connector (Detail “A”) onto the control connector.
If the bed does not have a footboard, place the
control unit on a flat surface, leaving room for the
hose to hang down.
Bed Hook
ƽ
CAUTION
Ensure that the hose connecting the control unit to the mattress is routed such that it cannot be stepped on, kinked,
squeezed or otherwise damaged.
