SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. In case of
damage, DO NOT use. Contact Carrier/Invacare for fur-
ther instructions.
SAFETY SUMMARY
The following recommendations are made for the safe
and proper installation and use of the Ventilator Tray:
GENERAL WARNINGS
DO NOT install this equipment without first
reading and understanding this instruction
sheet. If you are unable to understand the
Warnings, Cautions and Instructions, contact
a healthcare professional, dealer or techni-
cal personnel if applicable, before attempt-
ing to install this equipment - otherwise, in-
jury or damage may occur.
INSTALLING THE VENTILATOR
TRAY (FIGURE 1)
NOTE: Refer to the following diagram for the proper loca-
tion of the ventilator tray attachment points.
1. Attach the ventilator tray components in the following
order:
A. Install the ventilator tray hanger bracket onto the
ventilator tray.
B. Install the ventilator brace onto the chair frame.
C. Install the ventilator tray onto the chair frame.
D. Install the ventilator arms onto the ventilator tray/
chair frame.

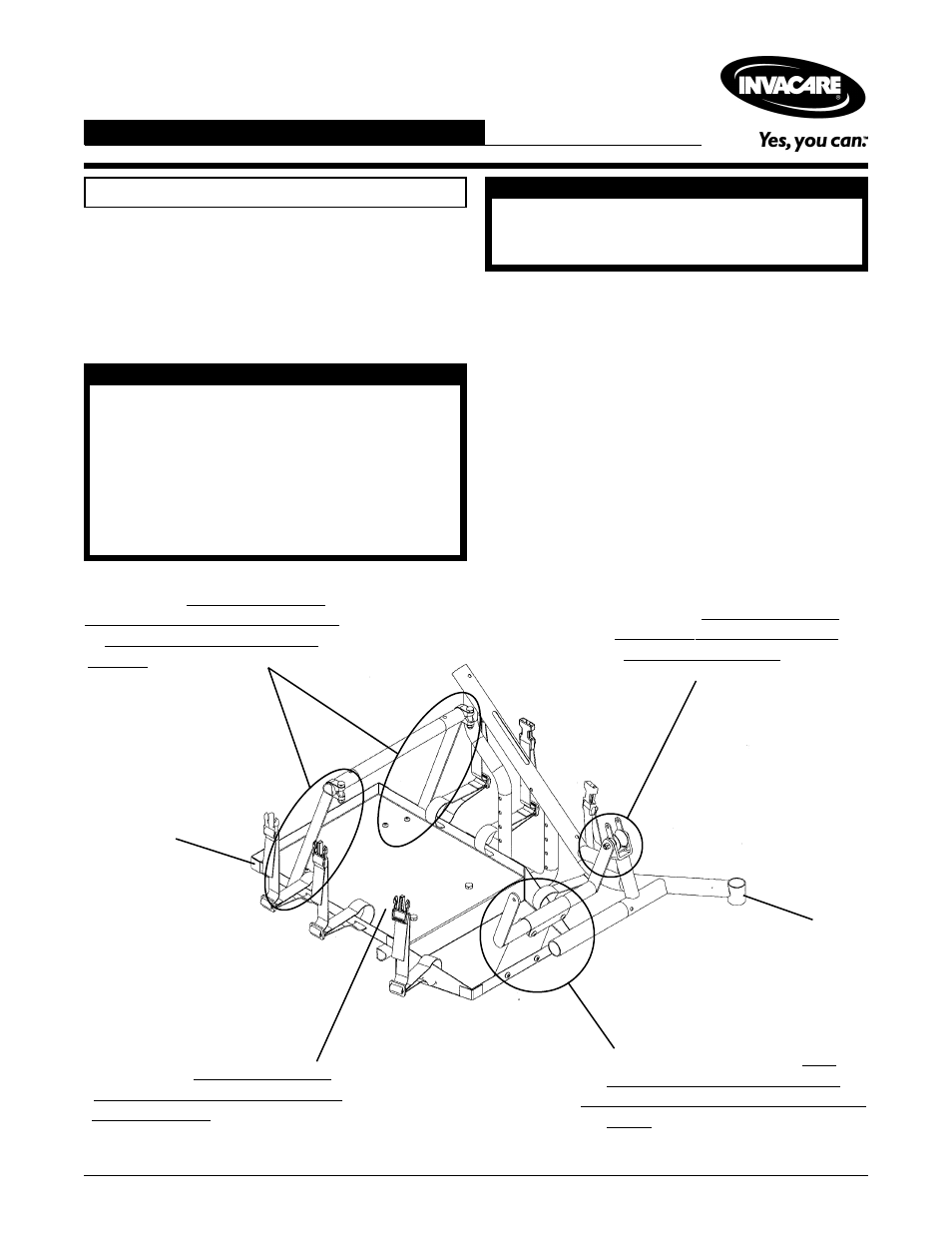

FIGURE 1 - INSTALLING THE VENTILATOR TRAY/ATTACHMENT POINT LOCATIONS
INSTALLATION WARNINGS
After ANY adjustments, repair or service and
BEFORE use, make sure that all attaching
hardware is tightened securely.
A. Refer to INSTALLING THE
VENTILATOR TRAY HANGER
BRACKET ONTO THE VENTILATOR
TRAY in this Instruction Sheet.
B. Refer to INSTALLING THE
VENTILATOR BRACE ONTO
THE CHAIR FRAME in this
Instruction Sheet.
C. Refer to INSTALLING THE
VENTILATOR TRAY ONTO THE
CHAIR FRAME in this Instruction
Sheet.
D. Refer to INSTALLING THE
VENTILATOR ARMS ONTO THE
VENTILATOR TRAY/CHAIR
FRAME in this Instruction Sheet.
Ventilator Tray
Chair Frame
Solara Ventilator Tray Option
Assembly, Installation and Operating Instructions
