GS-SR195V Rack Mount Server

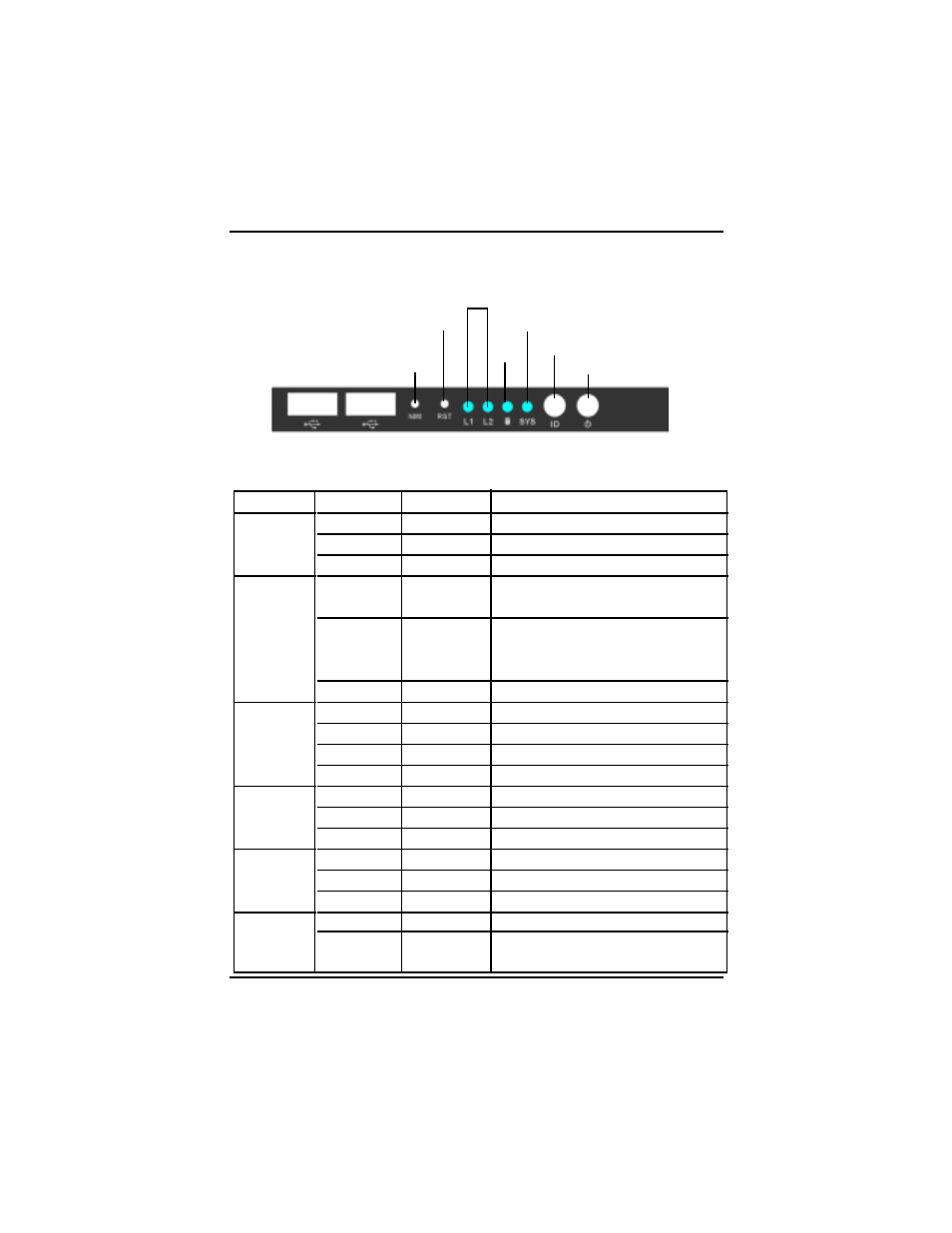

3-3: Switch and LED Indicators Introduction
Power
NMI
LAN1/2 Activities
ID BTN&LED
Name
Power
SYS
(System)
HDD
LAN1
Activity
LAN2
Activity
ID
(Identification)
System Event LED
HDD
Reset
Color
Condition
Description
Green
On
Power On
Green
Blink
Sleep (S1)
--
Off
Power Off (S4)
Amber
Blink
System Ready but degraded, CPU Failed,
DIMM Killed
Amber
On
Critical Alarm: Critical Power Module Failure,
Critical FANs Failure, Voltage (Power Supply)
Critical Teemperature and Voltage
--
Off
System healthy.
Green
Blink
Hard Disk Drive Access
Amber
On
HDD Fault
Amber
Blink
HDD Rebuild
--
Off
No Access and No HDD Fault
Green
On
LAN Link / No access
Green
Blink
LAN access
--
Off
Idle
Green
On
LAN Link / No access
Green
Blink
LAN access
--
Off
Idle
Blue
On
Unti selected for identification
--
Off
No identification
