Hardware Installation Process

Step 2-2: CPU Installation

Please make sure the CPU type and speed that are supported by the motherboard.

Step 1

Step 2

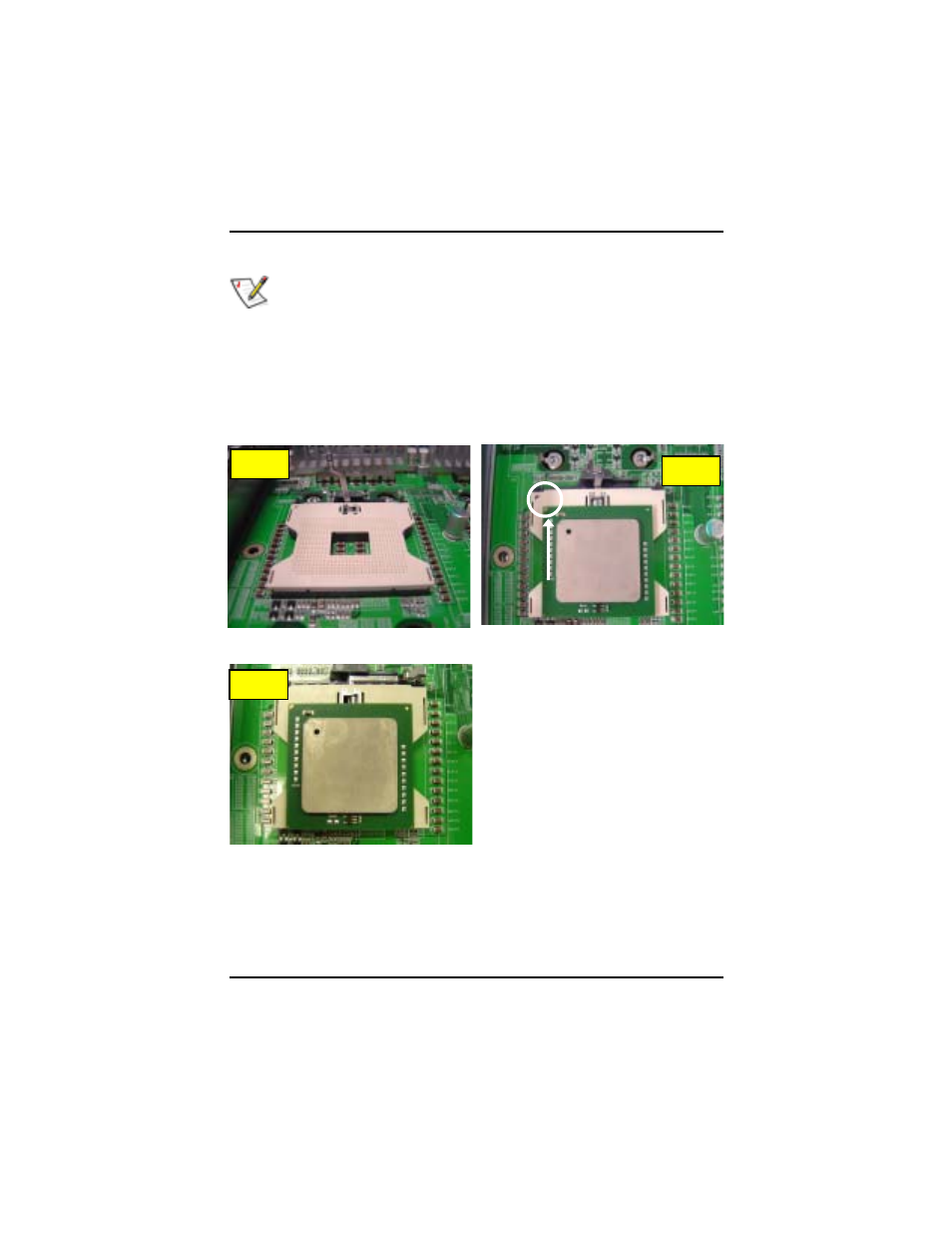

Step 1 Raise the locking bar on the socket.
Step 2 Aligning the pins of the processor with the socket, insert the processor into the socket.
Step 3 Close the handle completely and finish CPU installation.

Step 3

Pin1 indicator
