Connecting the digital signal cable

Note:

If you use the converter box, see “Converter Box User s Guide”.

1. Make sure that the power cord is NOT connected to your PC or

workstation.

2. Open the cover of your personal computer or workstation, and install

the video graphics card, if necessary.

3. Connect the DVI connector labeled "primary" on the monitor cable to

the main DVI output on the video graphics card. The connector
labeled "secondary" is connected to the other output*.

Note:

It is not necessary to connect the monitor USB connector. This

is only required for updating the monitor firmware or using the
color management facility (see ibm.com/support for more
information).

4. If you opened the cover of your personal computer or workstation,

close it.

Note:

*The monitor can be driven with up to 4x DVI inputs. Refer to

Appendix C for more information on configuring your video
graphics card & system.

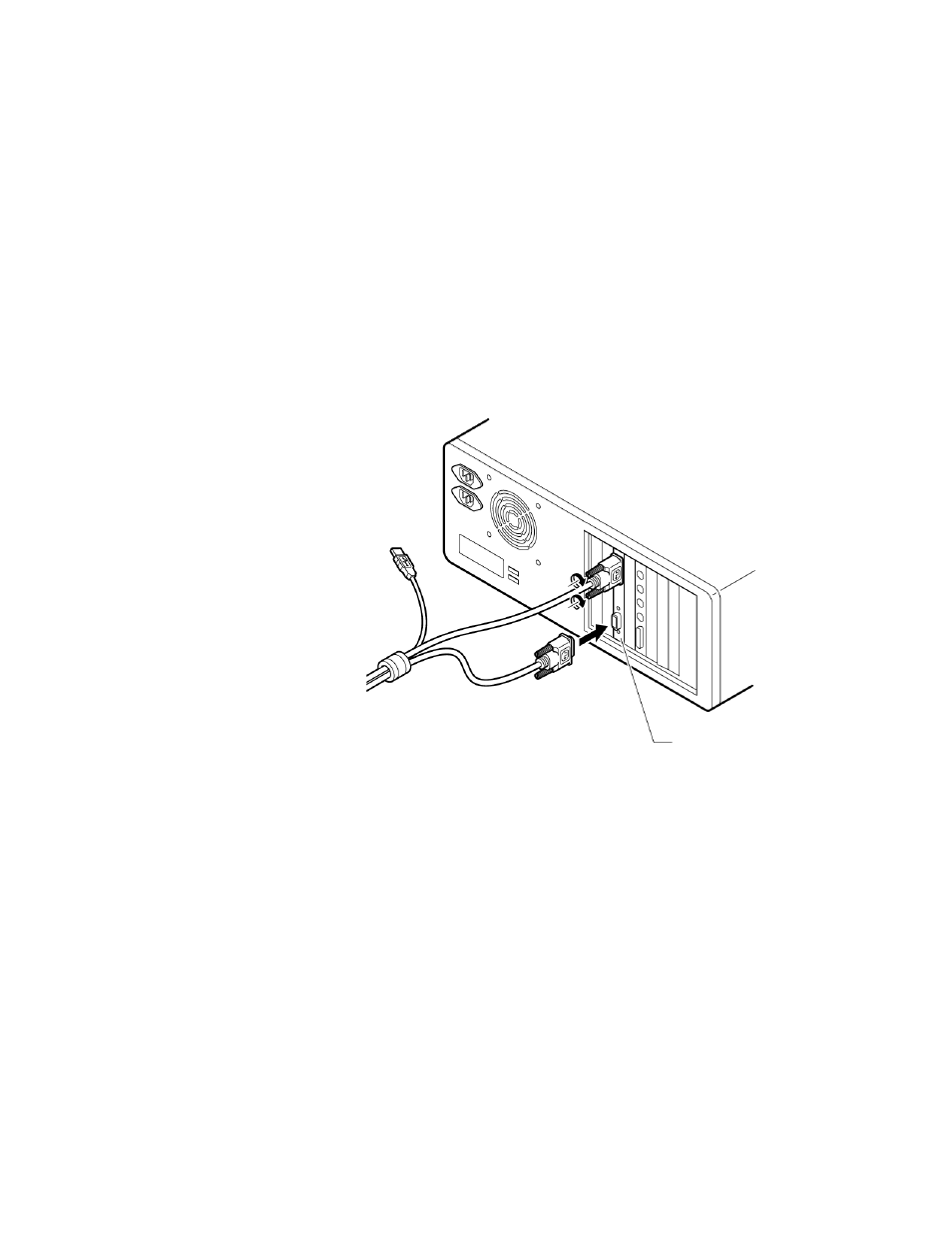

Video graphics card
