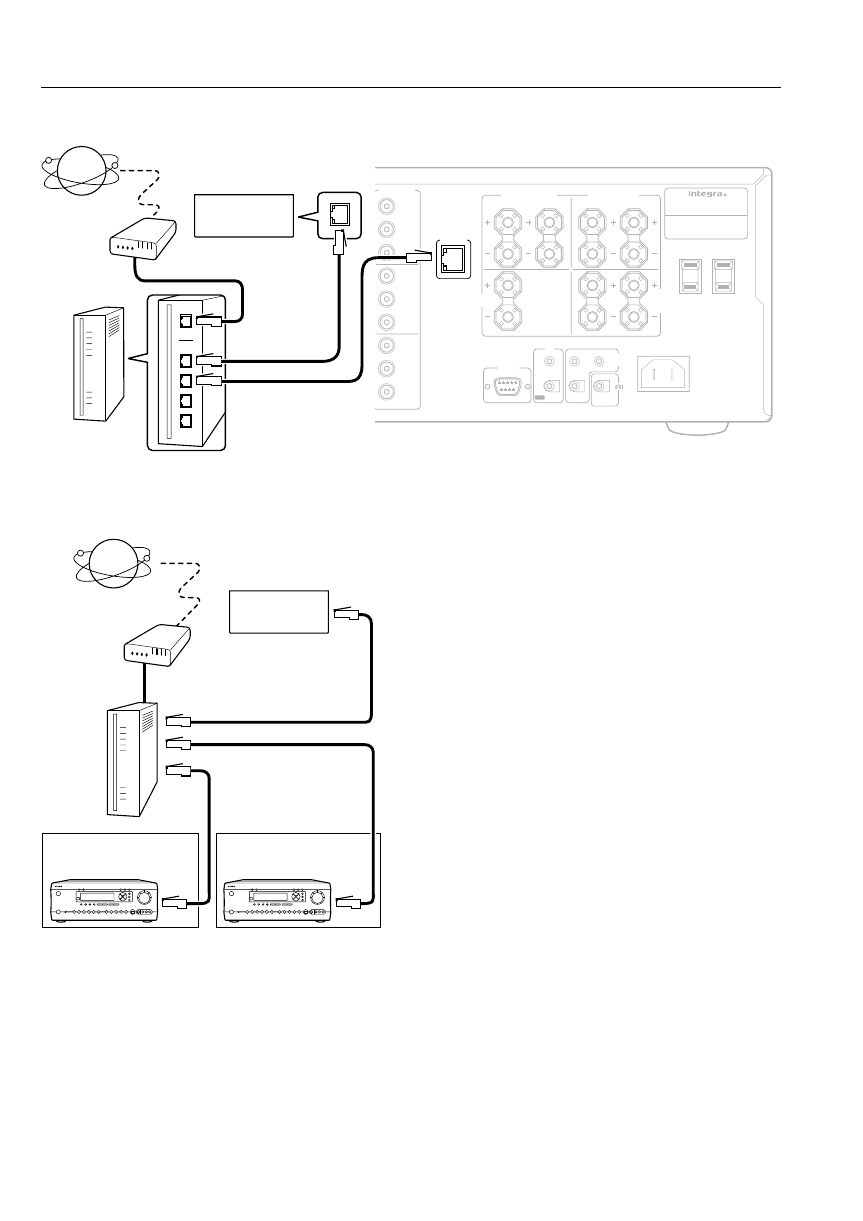

Connecting the DTR-7.3 to your Ethernet Network
Plug one end of an Ethernet CAT-5 cable into the port on the backside of the DTR-7.3 and the other end into the gateway.
Room 1 Room 2
Internet radio
Modem
Router
NAS-2.3
To the WAN side
To the LAN side port
To the LAN side port
To the LAN side port
Hint:
Connecting more than one unit of DTR-7.3 to a router enables several
users to listen to Internet radio at different stations or different music
pieces contained in the same library on the NAS-2.3.
