13

Index parts and facilities

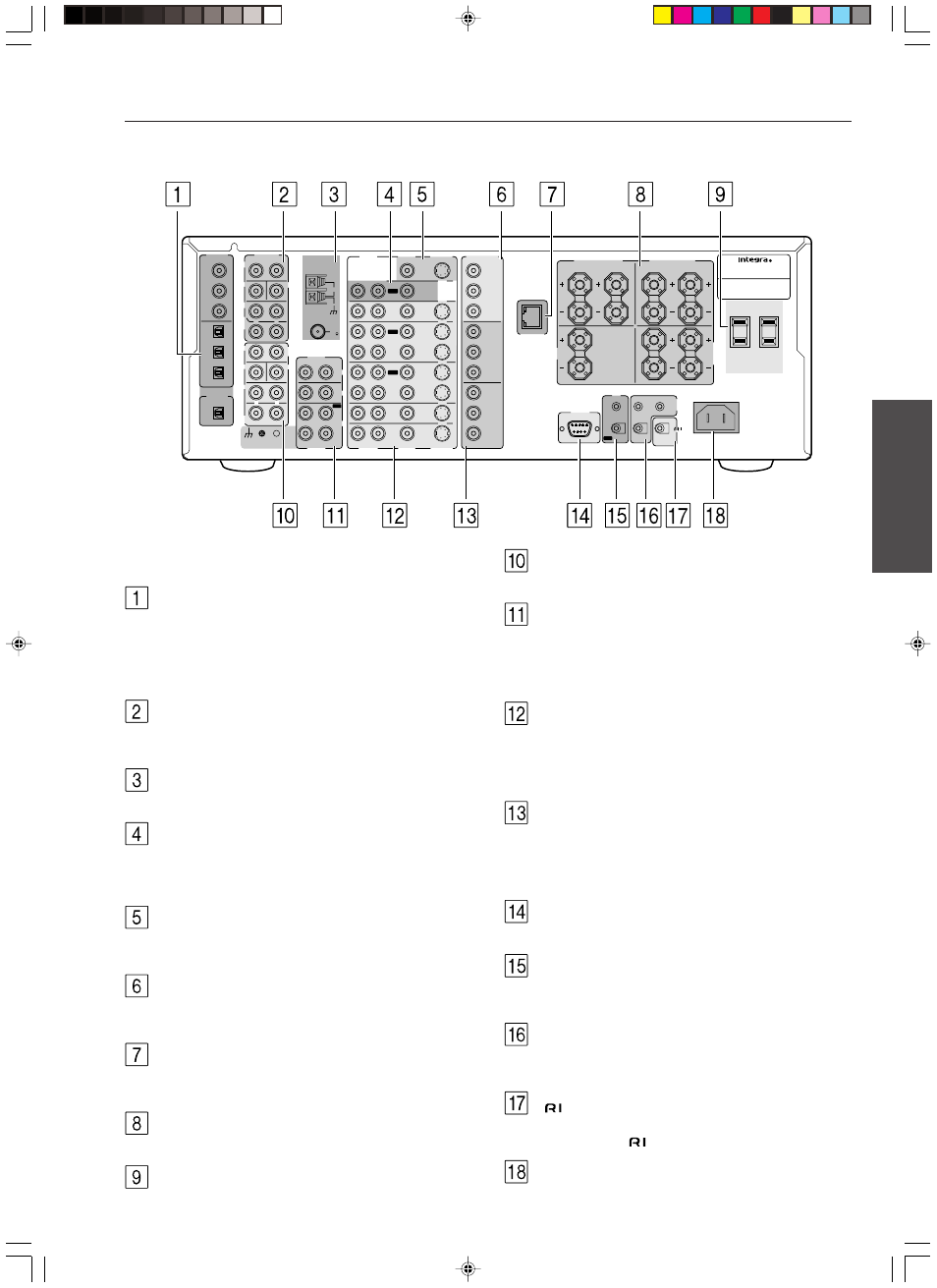

Rear panel

SURR
BACK/
ZONE 2
SPEAKERS

AUDIO

VIDEO

S VIDEO

MONITOR

OUT

IN

IN

IN

IN

IN

ZONE 2

DVD

VIDEO 1

VIDEO 2

VIDEO 3

VIDEO 4

AUDIO

VIDEO

S VIDEO

COMPONENT

VIDEO

Y

P

B

P

R

OUTPUT

INPUT 1

Y

P

B

P

R

INPUT 2

Y

P

B

P

R

FRONT SPEAKERS

L

R

L

R

SURR SPEAKERS

CENTER
SPEAKER

R

L

R

L

PHONO

PRE OUT

FRONT

SUB

SURR

R

L

AUDIO

R

L

CD

TAPE

R

L

AUDIO

GND

SURR

BACK/

ZONE 2

IN

R

L

MULTI CH
INPUT

FRONT

SUB

SURR

SURR
BACK

CENTER

R

L

R

L

AM

FM

75

I R

IN

ZONE 2

REMOTE
CONTROL

A

B

RS232

12 V
TRIGGER OUT

AC 120 V 60 Hz

SWITCHED

TOTAL 120W 1A MAX.

AC OUTLETS

AV RECEIVER

MODEL NO.

DTR-7.3

AC INLET

DIGITAL

INPUT

DIGITAL

OUTPUT

OPT

OPT

2

1

2

3

1

3

COAX

CENTER

ANTENNA

R

L

4 OHMS MIN. OR
6 OHMS MIN.
/SPEAKER

CAUTION:

SPEAKER

IMPEDANCE

SEE INSTRUCTION
MANUAL FOR
CORRECT SETTINGS.

OUT

OUT

OUT

OUT

OUT

ETHERNET

[NET-TUNE]

MULTI CH INPUT [27]

This connector is for connecting components with a multi-channel output.

PHONO/CD/TAPE AUDIO IN/OUT [15]

These connectors are for connecting to the audio input and output
jacks on audio components. To connect a turntable, see page 17; to
connect a CD player, see page 17; and to connect a cassette tape
deck, MD recorder, or CD recorder, see page 17.

DVD/VIDEO1-4 IN/OUT [16-19]

These connectors are for connecting to the video input and output
jacks on video components. To connect a DVD player, see page 16;
to connect a DVD recorder, see page 18; to connect a VCR, see page
17; and to connect a satellite tuner, see page 19.

COMPONENT VIDEO INPUT1/2 [16, 18]

These connectors are for connecting to the component video outputs
of video components that have them. To connect a DVD player, see
page 16; to connect a DVD recorder, see page 18; and to connect a
satellite tuner, see page 19.

RS232 [26]

This connector is for connecting to the RS232 port of an external device.

IR IN/OUT [25]

These connectors are for connecting the remote sensor of a multi-
room kit (sold separately).

12V TRIGGER OUT A/B/ZONE 2 [27]

This connector is used to connect to the 12V TRIGGER IN terminal
of a component.

[26]

This jack is for connecting other Integra/Onkyo components
equipped with the same

terminal.

AC INLET [26]

This connector is for connecting the supplied power cord.

For more information regarding connection procedures, see pages
indicated in brackets [ ].

DIGITAL INPUT/OUTPUT [15-19]

These jacks are for connecting components with digital input and
output capabilities. To connect a CD player, see page 15; to connect an
MD or CD recorder, see page 15; to connect a DAT deck, see page 15;
to connect a DVD player, see page 16; to connect a DVD recorder, see
page 18; and to connect a digital satellite tuner, see page 19.

PRE OUT [27]

To use the DTR-7.3 as a preamplifier, connect a power amplifier to
this jack.

ANTENNA [22-23]

These jacks are for connecting a tuner.

ZONE2 AUDIO/VIDEO OUT [24]

These jacks are for connecting the components that will be used in the
remote zone (Zone 2). For more details on the connection procedures,
see “Connecting the remote zone (Zone 2) speakers” on page 24.

MONITOR OUT VIDEO/S VIDEO [17]

These jacks are for connecting to the video input jacks on television
monitors or projectors.

COMPONENT VIDEO OUTPUT [17]

These jacks are for connecting to the component video input jacks on
television monitors or projectors.

ETHERNET (NET-TUNE)

This connector is for connecting to an Ethernet network or personal
computer.

SPEAKERS [20-21]

These terminals are for connecting the speakers.

AC OUTLETS [26]

This AC outlet is provided to plug in the power cord from another
component.
