Tss-sub4000 exploded view – Infinity TSS-SUB4000 User Manual
Page 8
Ref # Description
Part Number
Qty
1 Grille
329-120-05097-0VA 1
2 Woofer/Trim
Ring
Screw
351-AM04030A893
8
3 Trim
Ring
213-120-05033-0BA 1
4
Woofer 12" (305mm) MMD
30PR14BW-DW01
1
5 Port
Tube
249-HIPS-05021-0VA 1
6
TSS-SUB4000 Amplifier
Not for Sale
1
7 Amplifier
Screw
352-FM04020D605 12
8
TSS-SUB4000 Cabinet
Not for Sale
1
9 Rubber
Foot
320-RUB-05030-0BA 4
10 Foot
Screw
352-CM04025D604
4
11 Gasket
333-EVA-05091-0WA 1
12 LED
166-A055A8GX
1
13
Plastic Plate
Not Serviceable
1
14
Aluminum Plate
Not Serviceable
1
Not
Shown
Power Transformer
150-R1107008
1

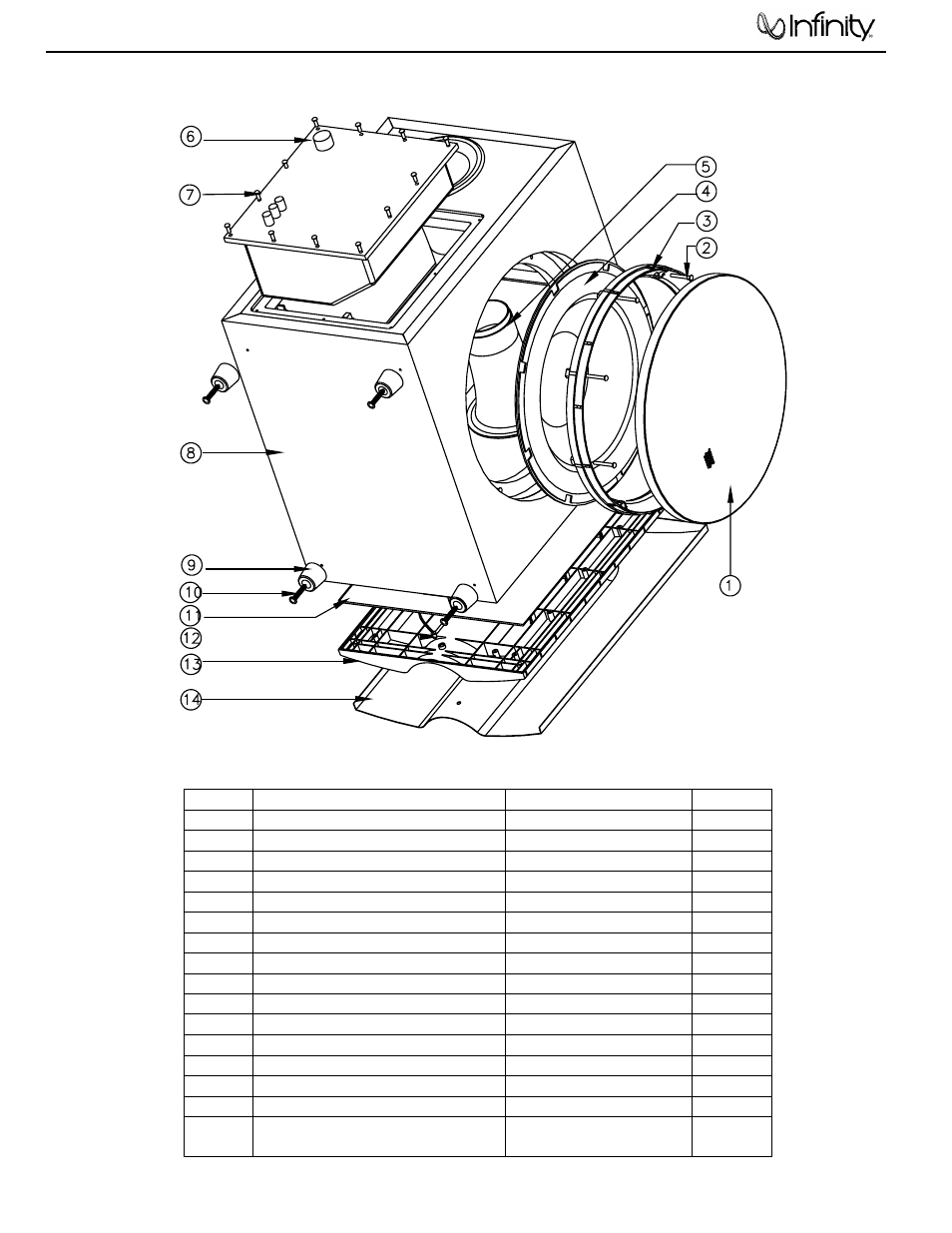

TSS-SUB4000 EXPLODED VIEW
TSS-SUB4000
7
