Connections, Onnections – Infinity TSS-SUB4000 User Manual
Page 6
TSS-SUB4000
C
ONNECTIONS

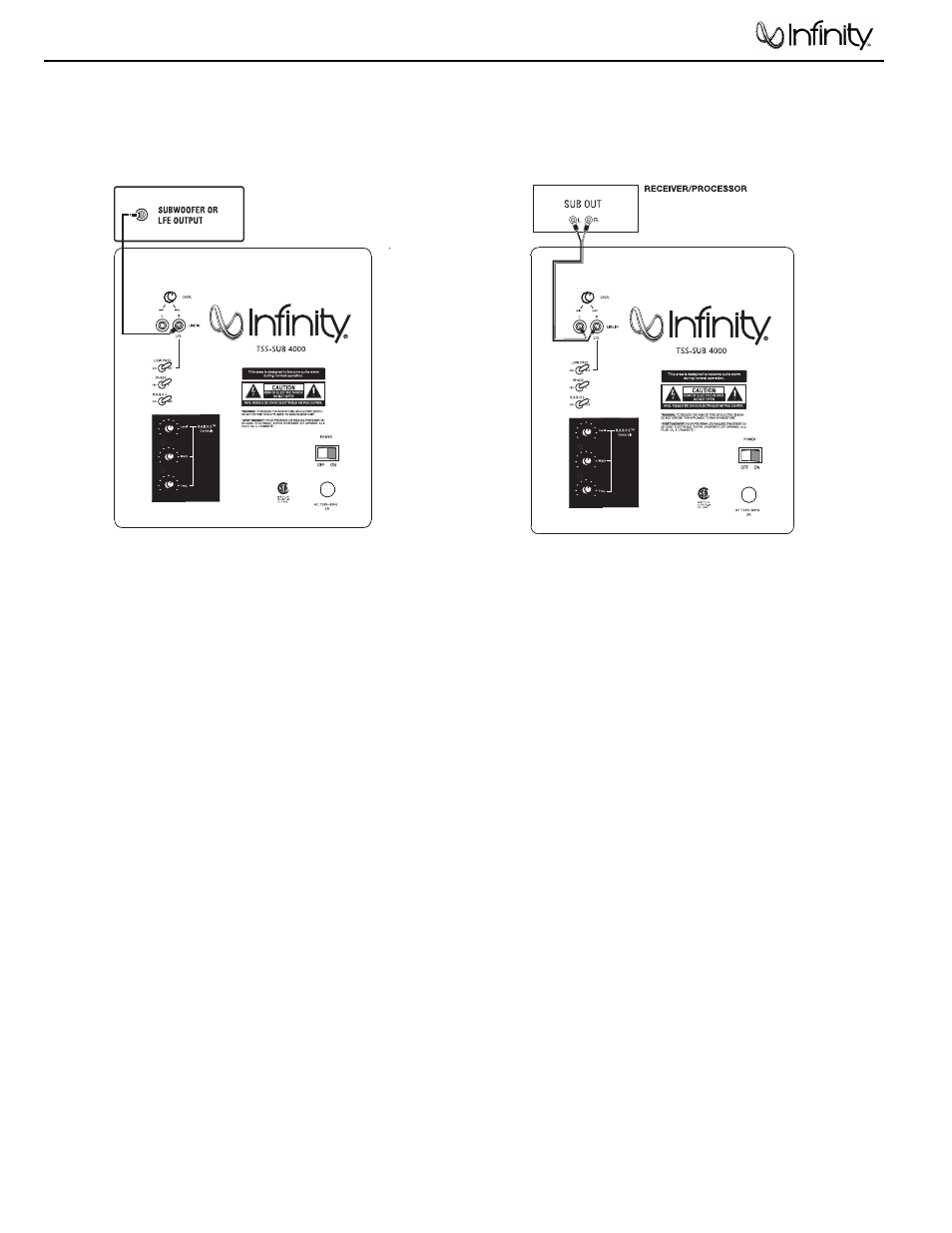

If you have a Dolby* Digital or DTS
®
receiver/processor
with a low-frequency-effects (LFE) output:
• Set Low-Pass Switch to Off.
NOTE: In this case, you do not need to use a Y connector. Simply
connect the LFE output on your receiver/processor to either the
left or right input on the subwoofer.
If your receiver/processor has subwoofer
outputs for the left and right channels:
• Set Low-Pass Switch to On.
NOTE: Some receivers have a single subwoofer output (do not confuse
this with a single LFE output as described to the left). In that case,
it is recommended that you use a Y connector (not included) to maximize
performance.
TSS-SUB4000
5
