ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injury.

STEP 1 (See Diagram 1)

A.) Place the Right and Left Base Frames (#1 & #14) on a flat surface. Make sure there is enough

space to assemble the machine.

B.) Do not tighten the nuts and bolts until instructed to do so.

C.) Attach the Left Base Frame (#14) and the Right Base Frame (#1) to the bottom of Rear

Vertical Beam (#9). Align the holes and secure the upper hole with one M10 x 2 ½” Carriage
Bolt (#87), Ø ¾” Washer (#94), and M10 Aircraft Nut (#97). Secure the lower hole with one
M10 x 2 3/8” Allen Bolt (#84) and

∅

¾” Washer (#94).

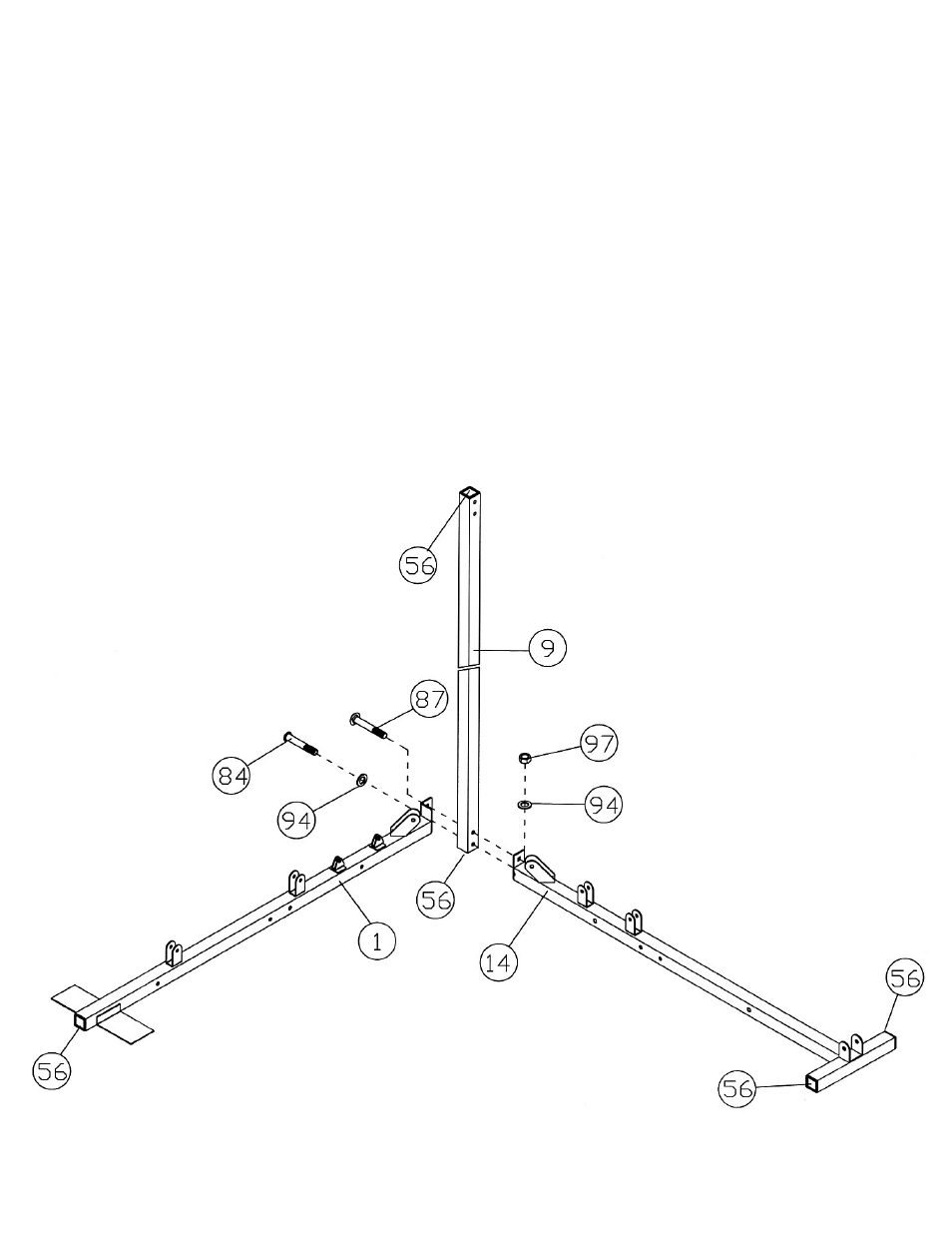

DIAGRAM 1
