Diagram 5 – Impex EVE-1500 User Manual

Page 14

STEP 5 (See Diagram 5)

A.) Attach the Right Seat Support (#2) onto the Right Base Frame (#1). Secure it with

one M10 x 2 ½” Carriage Bolt (#87), Ø ¾” Washer (#94), and M10 Aircraft Nut
(#97).

B.) Attach the Right Seat Support (#2) to the Right Vertical Beam (#3). Secure it with

two M10 x 2 ½” Carriage Bolts (#87), one 4 3/8” x 1 ¾” Bracket (#32), two Ø ¾”
Washers (#94), and two M10 Aircraft Nuts (#97).

C.) Attach the Leg Developer (#7) to the bracket on the Right Seat Support (#2).

Secure it with a 2” Axle (#51), two M10 x ¾” Allen Bolts (#80), and two Ø ¾”
Washers (#94).

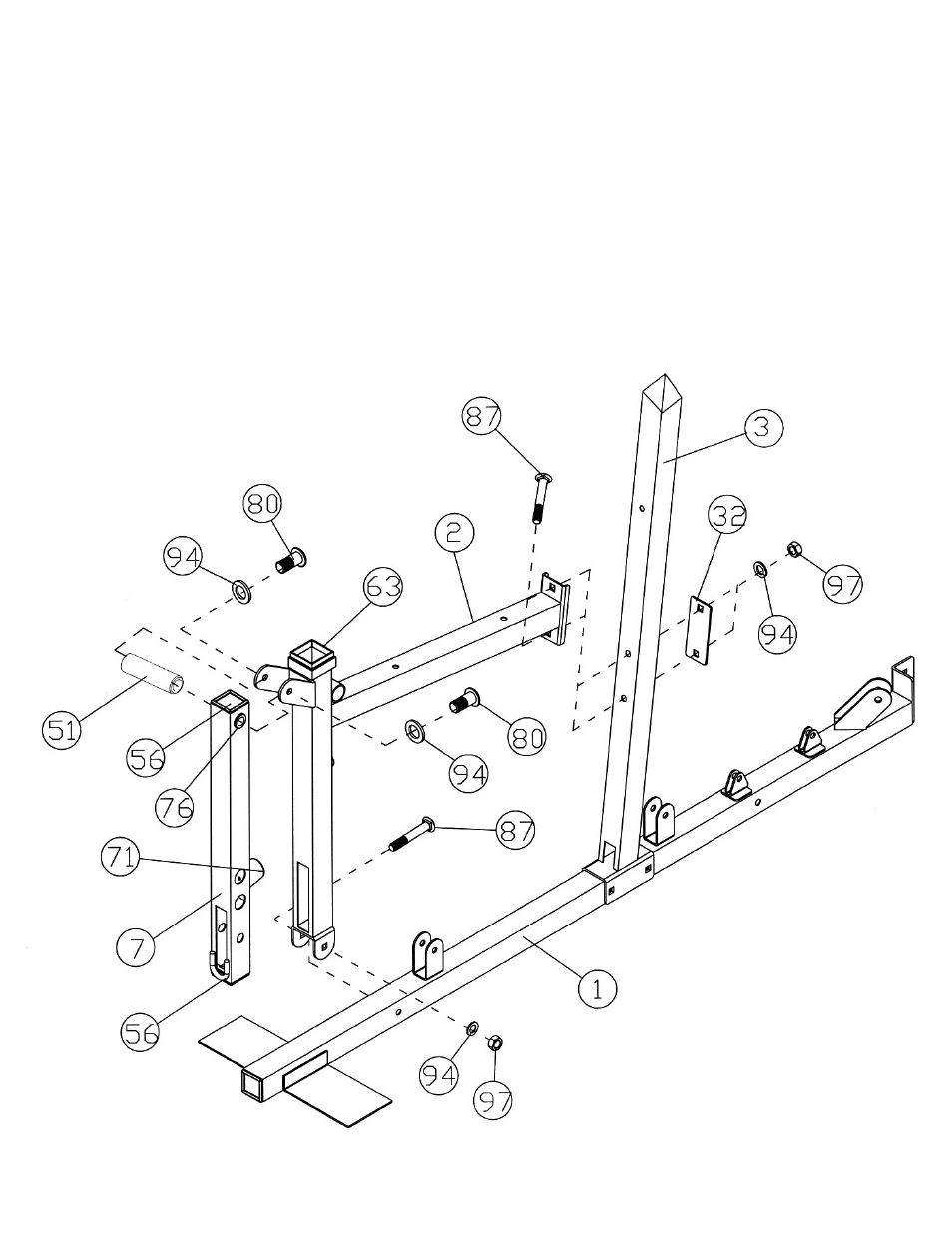

DIAGRAM 5
