Server controls and indicators, Front view, Server – IBM xSeries 235 User Manual
Page 20: Controls, Indicators, Front, View
Server
controls
and
indicators
This
section
identifies
the
controls
and
indicators
on
the
front
and
rear
of
your
server.
Note:
The
illustrations
in
this
document
might
differ
slightly
from
your
hardware.

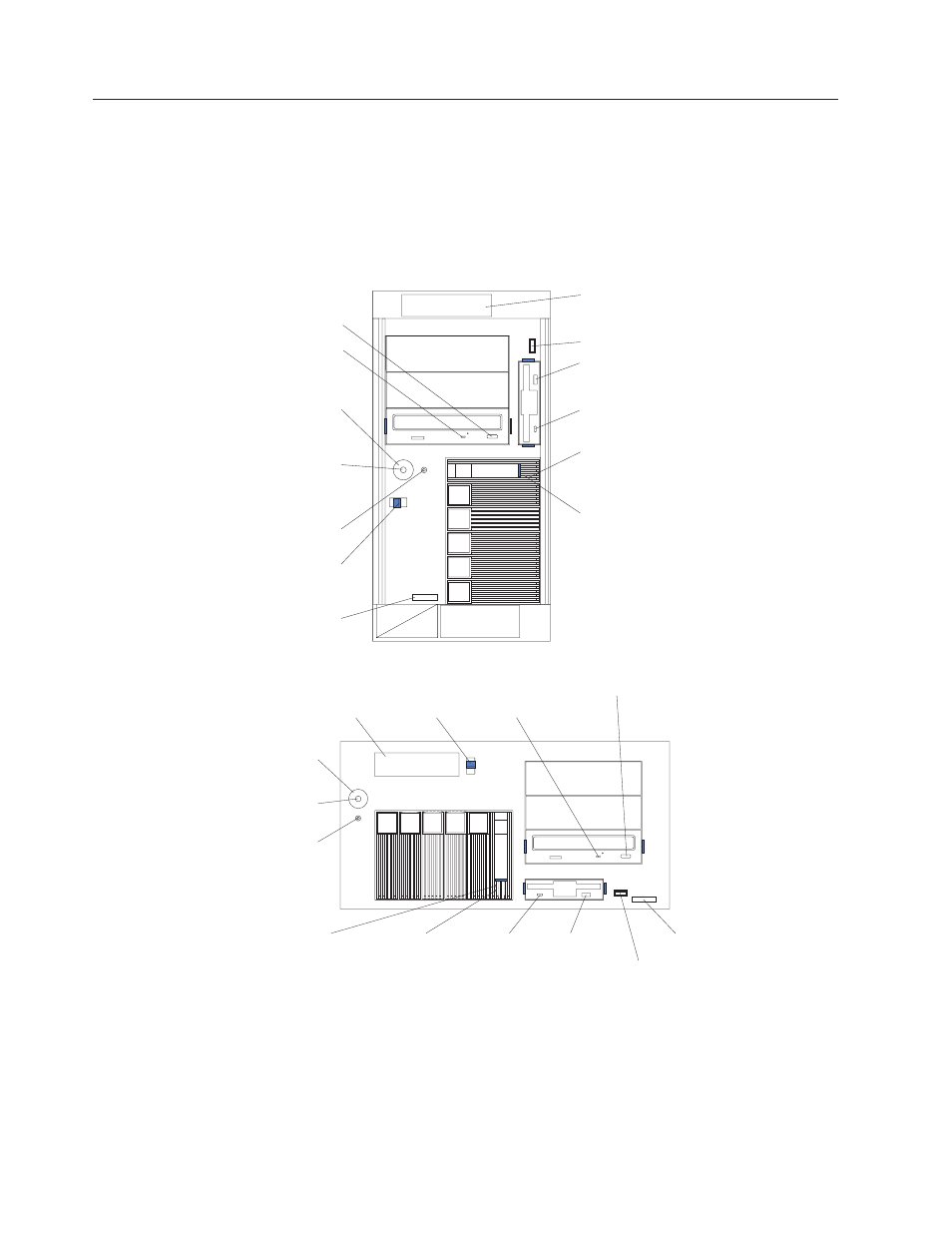

Front
view
Tower
model
Hard disk
drive activity
LED (green)
Diskette drive
activity LED
Diskette-
eject button
USB 3 connector
Hard disk
drive status
LED (amber)
Reset
button
Power-control
button
Power-control
button shield
(if installed)
Cover-
release
latch
Model type/serial
number
Operator
information
panel
CD-eject button
CD-ROM drive
activity LED
(green)
Rack
configuration
Hard disk
drive activity
LED (green)
Hard disk
drive status
LED (amber)
Reset button
Power-control
button
Cover-
release
latch
Operator
information
panel
Power-control
button shield
(if installed)
Model type/serial
number
CD-ROM drive
activity LED
(green)
CD-eject button
Diskette drive
activity LED
(green)
Diskette-eject
button
USB 3
connector
Operator
information
panel:
The
LEDs
on
this
panel
give
status
information
for
your
server.
See
for
more
information.
USB
3
connector:
This
is
the
front
USB
connector.
Two
additional
USB
connectors
are
on
the
rear
of
the
server.
Diskette-eject
button:
Press
this
button
to
release
a
diskette
from
the
drive.
8
IBM
xSeries
235
Type
8671:
User’s
Guide
