3-2 Chapter 3

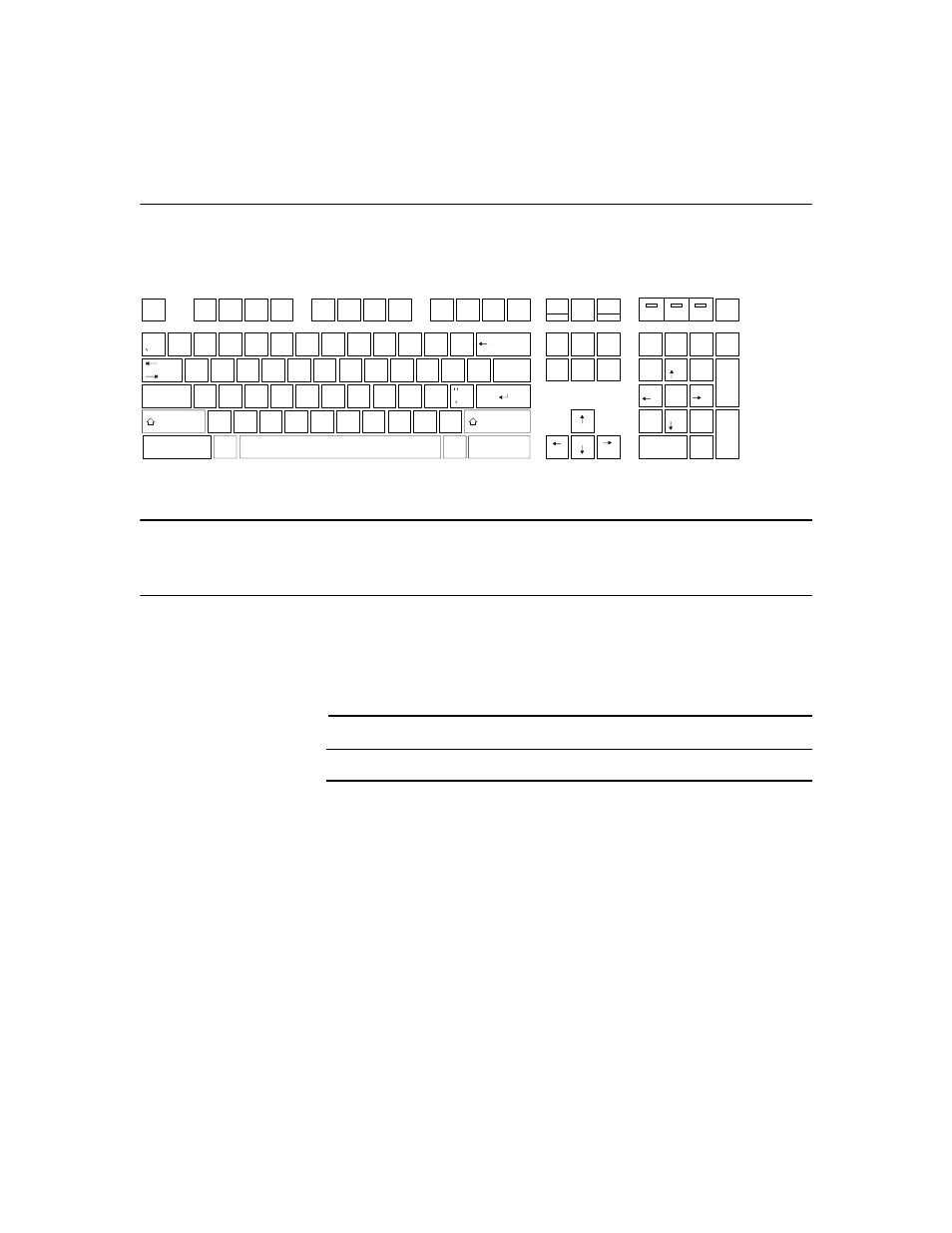

Terminal Keyboard Figure 3-2 shows the terminal keyboard layout.
Figure 3-2 Terminal Keyboard Layout
Keys The following section compares the TN5250 key definitions with the terminal
key definitions.
TN5250 Key
Definitions The IBM 5250 keyboard key definitions (refer to Figure 3-1) are listed in
Table 3-1. The purpose of this table is to enable you to compare your old
terminal’s keyboard with your new terminal’s keyboard. Where applicable, the
TN5250 keys are presented as they are on the keyboard. Otherwise, only the
key definitions are given. These might not be identical with your keyboard.
!
1 2 3 4 5 6 7 8 9 0
~ # $ % & * ( ) ^ +
= Back Space
Tab
Q W E R T Y U I O P
\
{ }
[ ]
A S D F G H J K L
:
;
Z X C V B N M
Shift Shift
> ?
/
,
<
.
Alt
Caps Lock Enter
Insert Home Page
Up
Delete End Page
Down 7 8 9
4 5 6
1 2 3
0 .
Ins Del
Home Pg Up
+
±
Enter
Num
Lock / *
End Pg Dn
Ctrl Alt
_
-
|
Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Print
Screen
Sys Rq
Scroll
Lock Pause
Break
Num
Lock
Caps
Lock
Scroll
Lock
Select
Ctrl
Table 3-1 TN5250 Keys
TN5250 Key Function
Atten Alerts the host that a requested function is not
being honored.
Clear Clears the terminal display.
Cmd1 through Cmd24 The Cmd1 through Cmd24 function keys.
↓
Moves the cursor down.
← Moves the cursor to the left.
↑
Moves the cursor up.
→
Moves the cursor to the right.
