34 PC 300 GL and 300 PL

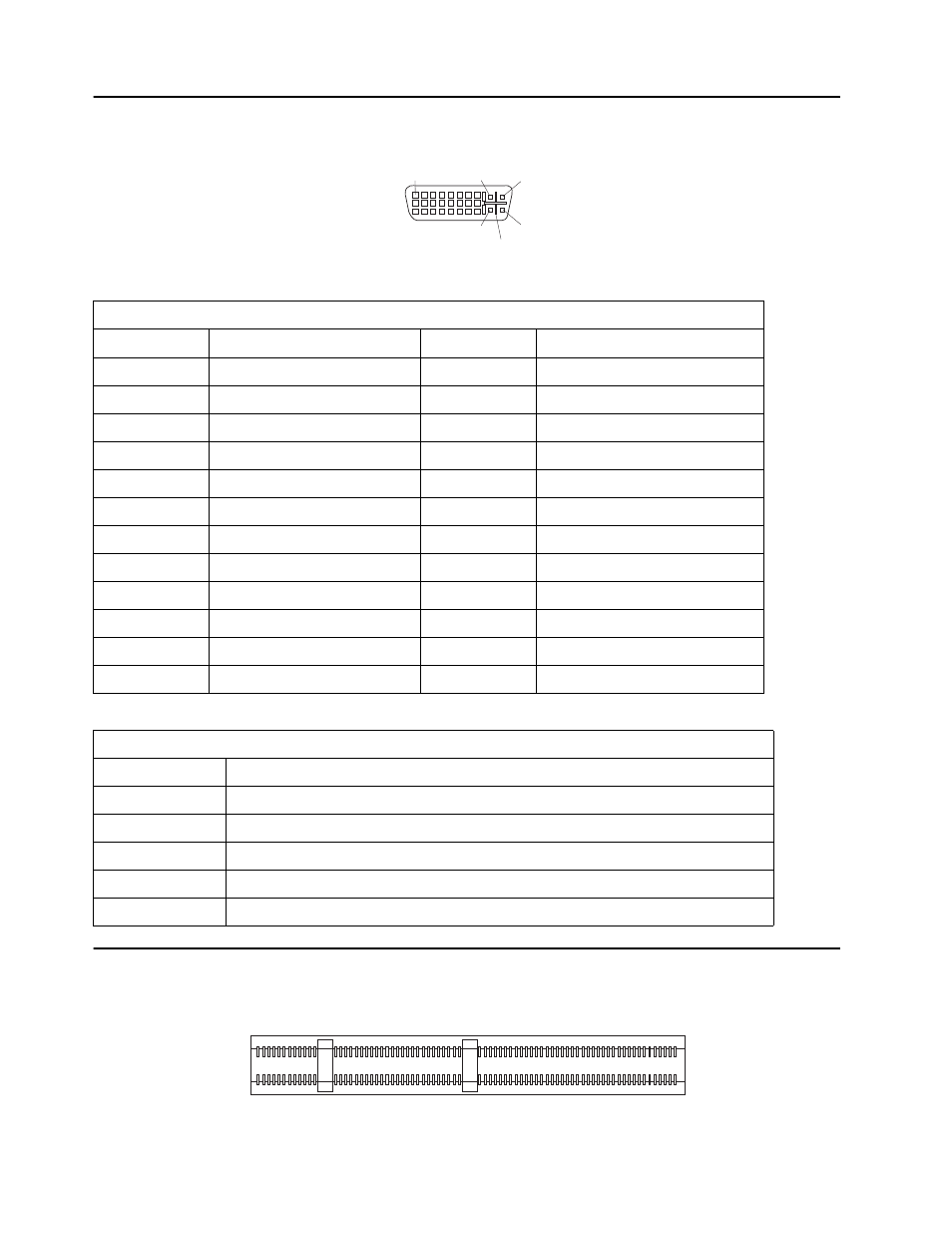

DVI-I monitor connector
System memory connector
Table 18. DVI-I monitor port connector pin assignments - main pin field
Pin Signal Pin Signal
1 TMDS data 2+ 13 TMDS data 3+
2 TMDS data 2- 14 +5V power
3 TMDS data 2/4 return 15 Ground
4 TMDS data 4- 16 Hot plug detect
5 TMDS data 4+ 17 TMDS data 0-
6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0-
8 Analog vertical sync 20 TMDS data 0/5 shield
9 TMDS data 1- 21 TMDS data 5+
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS 1/3 shield 23 TMDS clock+
12 TMDS data 3+ 24 TMDS clock-
Table 19. DVI connector pin assignments - micro cross section
Pin Signal
C1 Red video out
C2 Green video out
C3 Analog blue
C4 Analog horizontal sync
C5 Video/pixel clock return
1 C1 C2
C3
C5
C4
1
85
84
168
